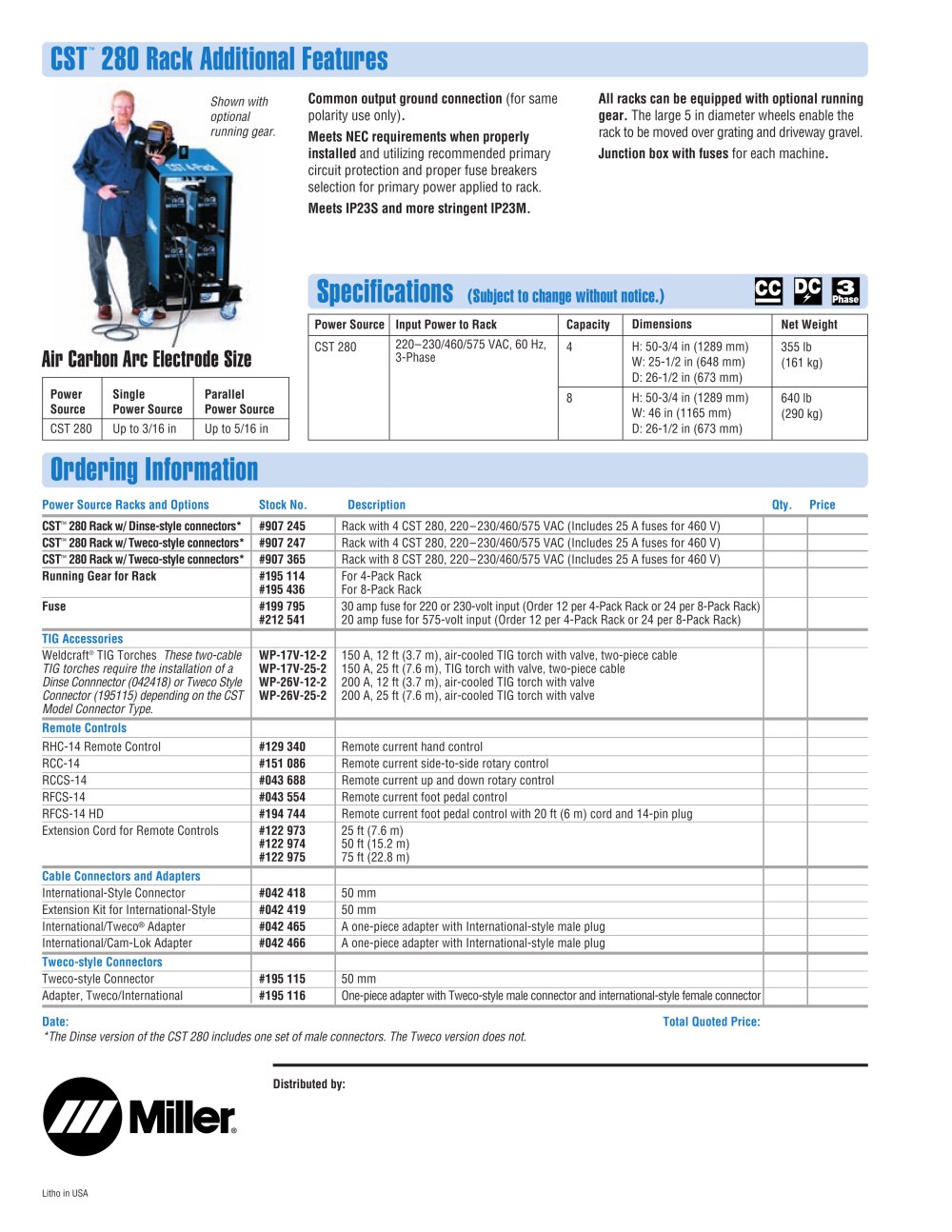

280 Rack Additional Features

The large 5 in diameter wheels enable therack to be moved over grating and driveway gravel.

Shown withoptionalrunning gear.

Common output ground connection (for samepolarity use only) .Meets NEC requirements when properlyinstalled Junction box with fuses for each machine . and utilizing recommended primarycircuit protection and proper fuse breakers selection for primary power applied to rack. Meets IP23S and more stringent IP23M.All racks can be equipped with optional runninggear.

Specifications

(Subject to change without notice.)

Power Source Input Power to Rack Capacity Dimensions Net Weight

Air Carbon Arc Electrode Size

CST 280 220–230/460/575 VAC, 60 Hz,3-Phase 48 H: 50-3/4 in (1289 mm)W: 25-1/2 in (648 mm) D: 26-1/2 in (673 mm)H: 50-3/4 in (1289 mm)W: 46 in (1165 mm) D: 26-1/2 in (673 mm) 355 lb (161 kg)640 lb(290 kg) Single Power Source ParallelPower Source Power Source CST 280 Up to 3/16 in Up to 5/16 in

Ordering Information

Power Source Racks and OptionsStock No.DescriptionQty.Price CST
™ 280 Rack w/ Dinse-style connectors*#907 245 Rack with 4 CST 280, 220–230/460/575 VAC (Includes 25 A fuses for 460 V) CST
™ 280 Rack w/ Tweco-style connectors*#907 247 Rack with 4 CST 280, 220–230/460/575 VAC (Includes 25 A fuses for 460 V) CST
™ 280 Rack w/ Tweco-style connectors*#907 365 Rack with 8 CST 280, 220–230/460/575 VAC (Includes 25 A fuses for 460 V) Running Gear for Rack#195 114 For 4-Pack Rack #195 436 For 8-Pack Rack Fuse#199 795 30 amp fuse for 220 or 230-volt input (Order 12 per 4-Pack Rack or 24 per 8-Pack Rack) #212 541 20 amp fuse for 575-volt input (Order 12 per 4-Pack Rack or 24 per 8-Pack Rack) TIG Accessories Weldcraft
® TIG Torches These two-cable WP-17V-12-2 150 A, 12 ft (3.7 m), air-cooled TIG torch with valve, two-piece cable TIG torches require the installation of a WP-17V-25-2 150 A, 25 ft (7.6 m), TIG torch with valve, two-piece cable Dinse Connnector (042418) or Tweco Style WP-26V-12-2 200 A, 12 ft (3.7 m), air-cooled TIG torch with valve Connector (195115) depending on the CST WP-26V-25-2 200 A, 25 ft (7.6 m), air-cooled TIG torch with valve Model Connector Type . Remote Controls RHC-14 Remote Control #129 340 Remote current hand control RCC-14 #151 086 Remote current side-to-side rotary control RCCS-14 #043 688 Remote current up and down rotary control RFCS-14 #043 554 Remote current foot pedal control RFCS-14 HD #194 744 Remote current foot pedal control with 20 ft (6 m) cord and 14-pin plugExtension Cord for Remote Controls #122 973 25 ft (7.6 m) #122 974 50 ft (15.2 m) #122 975 75 ft (22.8 m) Cable Connectors and Adapters International-Style Connector #042 418 50 mm Extension Kit for International-Style #042 419 50 mm International/Tweco
® Adapter #042 465 A one-piece adapter with International-style male plug International/Cam-Lok Adapter #042 466 A one-piece adapter with International-style male plug Tweco-style Connectors Tweco-style Connector #195 115 50 mm Adapter, Tweco/International #195 116 One-piece adapter with Tweco-style male connector and international-style female connector Date:Total Quoted Price: *The Dinse version of the CST 280 includes one set of male connectors. The Tweco version does not. Distributed by:
