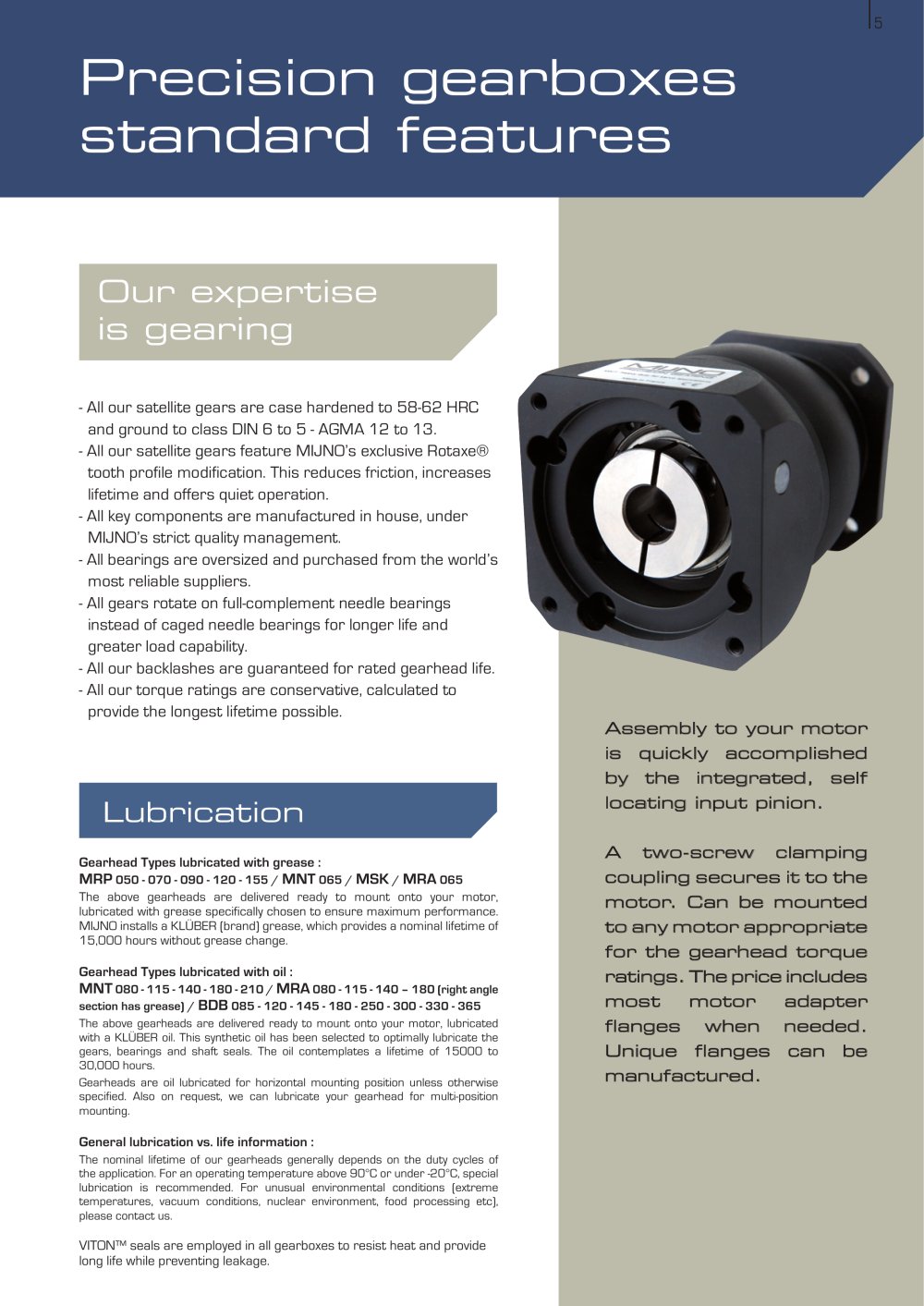

Precision gearboxes ¡standard featunesB

	ur expertise is gearing

■ All our satellite gears are case hardened to 58-62 HRC and ground to class DIN 6 to 5 - AGMA 12 to 13. ■ All our satellite gears feature MIJNO's exclusive Rotaxe® tooth profile modification. This reduces friction, increases lifetime and offers quiet operation. ■ All key components are manufactured in house, under MIJNO's strict quality management. ■ All bearings are oversized and purchased from the world's most reliable suppliers. ■ All gears rotate on full-complement needle bearings instead of caged needle bearings for longer life and greater load capability. All our backlashes are guaranteed for rated gearhead life. All our torque ratings are conservative, calculated to provide the longest lifetime possible.

			Assembly to your motor is quickly accomplished by the integrated, self locating input pinion. A two-screw clamping coupling secures it to the motor. Can be mounted to any motor appropriate for the gearhead torque ratings. The price includes most motor adapter flanges when needed. Unique flanges can be manufactured.
		Lubricatio
Gearhead Types lubricated with grease : MRP 050 - 070 - 090 - 120 - 155 / MNT 065 / MSK / MRA 065 The above gearheads are delivered ready to mount onto your motor, lubricated with grease specifically chosen to ensure maximum performance. MIJNO installs a KLUBER (brand) grease, which provides a nominal lifetime of 15,000 hours without grease change. Gearhead Types lubricated with oil : MNT 080 - 115 - 140 - 180 - 210 / MRA 080 - 115 - 140 - 180 (right angle section has grease) / BDB 085 - 120 - 145 - 180 - 250 - 300 - 330 - 365 The above gearheads are delivered ready to mount onto your motor, lubricated with a KLUBER oil. This synthetic oil has been selected to optimally lubricate the gears, bearings and shaft seals. The oil contemplates a lifetime of 15000 to 30,000 hours. Gearheads are oil lubricated for horizontal mounting position unless otherwise specified. Also on request, we can lubricate your gearhead for multi-position mounting. General lubrication vs. life information : The nominal lifetime of our gearheads generally depends on the duty cycles of the application. For an operating temperature above 90°C or under -20°C, special lubrication is recommended. For unusual environmental conditions (extreme temperatures, vacuum conditions, nuclear environment, food processing etc), please contact us.

VITON™ seals are employed in all gearboxes to resist heat and provide long life while preventing leakage.
