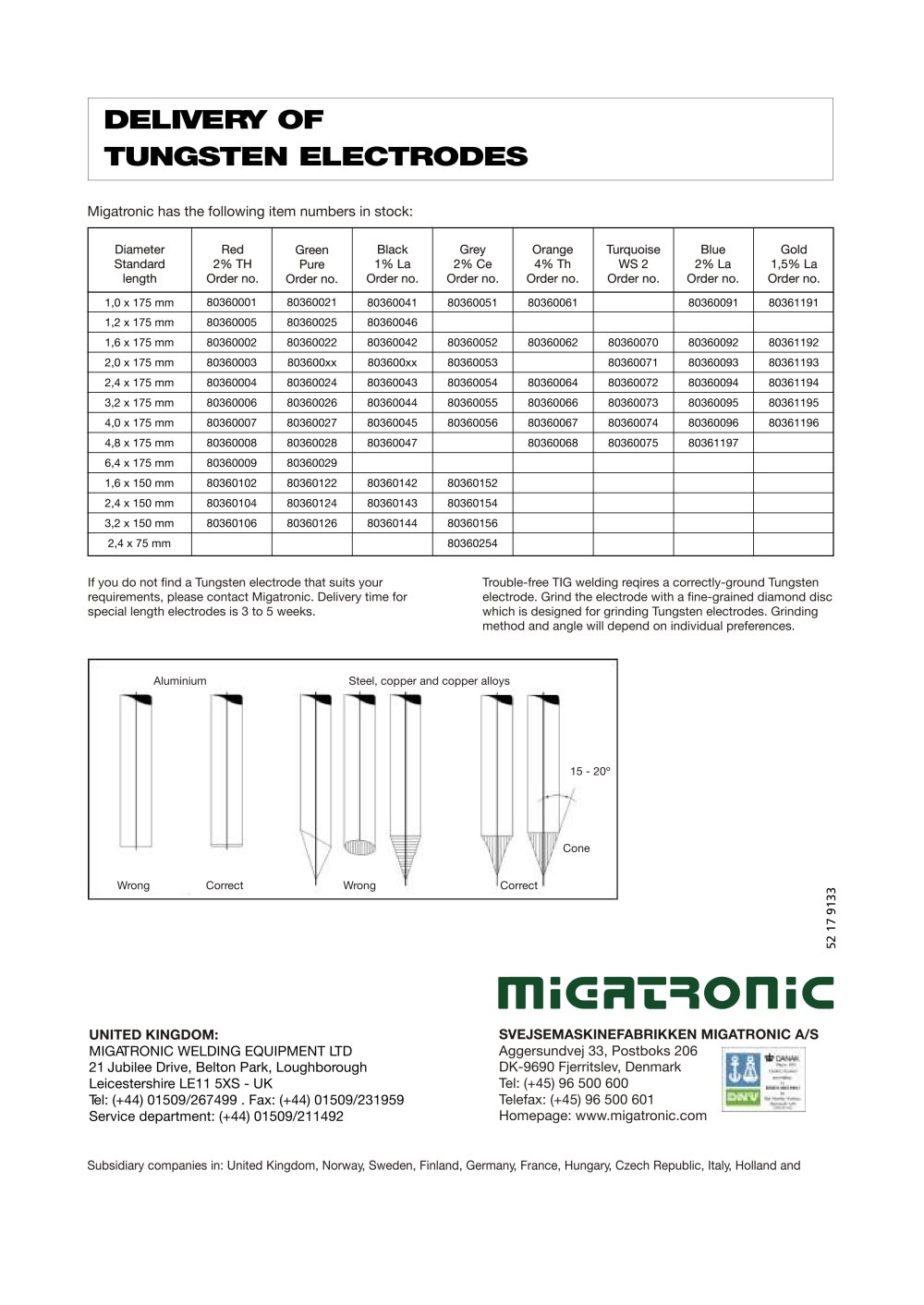

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | DELIVERY OF TUNGSTEN ELECTRODES | | | | | | | | | | Migatronic has the following item numbers in stock: | | | | | | | | | | | | | | | | | | | | | | | | Diameter | Red | Green | Black | Grey | Orange | Turquoise | Blue | Gold | | | | Standard | 2% TH | Pure | 1% La | 2% Ce | 4% Th | WS 2 | 2% La | 1,5% La | | | | length | Order no. | Order no. | Order no. | Order no. | Order no. | Order no. | Order no. | Order no. | | | | 1,0 x 175 mm | 80360001 | 80360021 | 80360041 | 80360051 | 80360061 | | 80360091 | 80361191 | | | | 1,2 x 175 mm | 80360005 | 80360025 | 80360046 | | | | | | | | | 1,6 x 175 mm | 80360002 | 80360022 | 80360042 | 80360052 | 80360062 | 80360070 | 80360092 | 80361192 | | | | 2,0 x 175 mm | 80360003 | 803600xx | 803600xx | 80360053 | | 80360071 | 80360093 | 80361193 | | | | 2,4 x 175 mm | 80360004 | 80360024 | 80360043 | 80360054 | 80360064 | 80360072 | 80360094 | 80361194 | | | | 3,2 x 175 mm | 80360006 | 80360026 | 80360044 | 80360055 | 80360066 | 80360073 | 80360095 | 80361195 | | | | 4,0 x 175 mm | 80360007 | 80360027 | 80360045 | 80360056 | 80360067 | 80360074 | 80360096 | 80361196 | | | | 4,8 x 175 mm | 80360008 | 80360028 | 80360047 | | 80360068 | 80360075 | 80361197 | | | | | 6,4 x 175 mm | 80360009 | 80360029 | | | | | | | | | | 1,6 x 150 mm | 80360102 | 80360122 | 80360142 | 80360152 | | | | | | | | 2,4 x 150 mm | 80360104 | 80360124 | 80360143 | 80360154 | | | | | | | | 3,2 x 150 mm | 80360106 | 80360126 | 80360144 | 80360156 | | | | | | | | 2,4 x 75 mm | | | | 80360254 | | | | | | | | | | | | | | | | | | | | | | | | | | | | If you do not find a Tungsten electrode that suits your requirements, please contact Migatronic. Delivery time for special length electrodes is 3 to 5 weeks. | | Trouble-free TIG welding reqires a correctly-ground Tungsten electrode. Grind the electrode with a fine-grained diamond disc which is designed for grinding Tungsten electrodes. Grinding method and angle will depend on individual preferences. | | | | | | | | | | | | | | ai in | | | | | | | | | | SVEJSEMASKINEFABRIKKEN MIGATRONIC A/S Aggersundvej 33, Postboks 206 I——— ¿"^1 DK-9690 Fjerritslev, Denmark Tel: (+45) 96 500 600 Telefax: (+45) 96 500 601 Homepage: www.migatronic.com | | | | | | UNITED KINGDOM: MIGATRONIC WELDING EQUIPMENT LTD 21 Jubilee Drive, Belton Park, Loughborough Leicestershire LE11 5XS - UK Tel: (+44) 01509/267499 . Fax: (+44) 01509/231959 Service department: (+44) 01509/211492 | | | | | | | | | | | | | | Subsidiary companies in: United Kingdom, Norway, Sweden, Finland, Germany, France, Hungary, Czech Republic, Italy, Holland and | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
