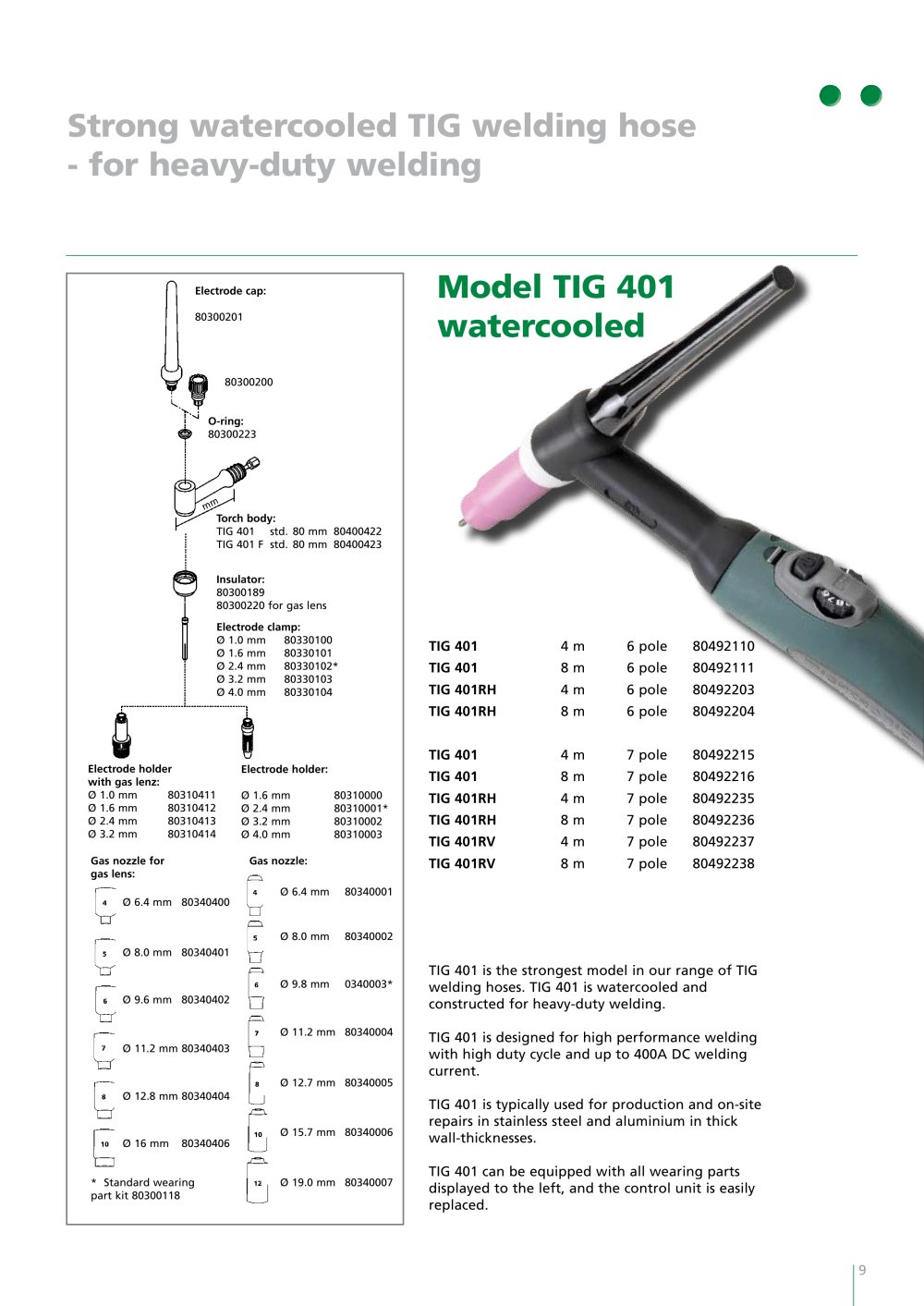

Strong watercooled TIG welding hose - for heavy-duty welding

Electrode cap: 80300201 80300200

Model TIG 401 watercooled

O-ring: 80300223 Torch body: TIG 401 std. 80 mm 80400422 TIG 401 F std. 80 mm 80400423 Insulator: 80300189 80300220 for gas lens Electrode clamp: Ø 1.0 mm 80330100 Ø 1.6 mm 80330101 Ø 2.4 mm 80330102* Ø 3.2 mm 80330103 Ø 4.0 mm 80330104 TIG 401 4 m 6 pole 80492110 TIG 401 8 m 6 pole 80492111 TIG 401RH 4 m 6 pole 80492203
Gas nozzle for gas lens: Gas nozzle: Ø 6.4 mm 80340001 Ø 8.0 mm 80340002 Ø 9.8 mm 0340003* Ø 11.2 mm 80340004 Ø 12.7 mm 80340005 Ø 15.7 mm 80340006 Ø 19.0 mm 80340007 Electrode holder with gas lenz: Ø 1.0 mm 80310411 Ø 1.6 mm 80310412 Ø 2.4 mm 80310413 Ø 3.2 mm 80310414 TIG 401RH 8 m 6 pole 80492204
Ø 6.4 mm 80340400 Ø 8.0 mm 80340401 Ø 9.6 mm 80340402 Ø 11.2 mm 80340403 Ø 12.8 mm 80340404 Ø 16 mm 80340406* Standard wearing part kit 80300118 TIG 401 4 m 7 pole 80492215
Electrode holder: TIG 401 8 m 7 pole 80492216
Ø 1.6 mm 80310000Ø 2.4 mm 80310001* Ø 3.2 mm 80310002 Ø 4.0 mm 80310003 TIG 401RH 4 m 7 pole 80492235 TIG 401RH 8 m 7 pole 80492236 TIG 401RV 4 m 7 pole 80492237 TIG 401RV 8 m 7 pole 80492238TIG 401 is the strongest model in our range of TIG welding hoses. TIG 401 is watercooled and constructed for heavy-duty welding.TIG 401 is designed for high performance welding with high duty cycle and up to 400A DC welding current.TIG 401 is typically used for production and on-site repairs in stainless steel and aluminium in thick wall-thicknesses. TIG 401 can be equipped with all wearing parts displayed to the left, and the control unit is easily replaced. 9
