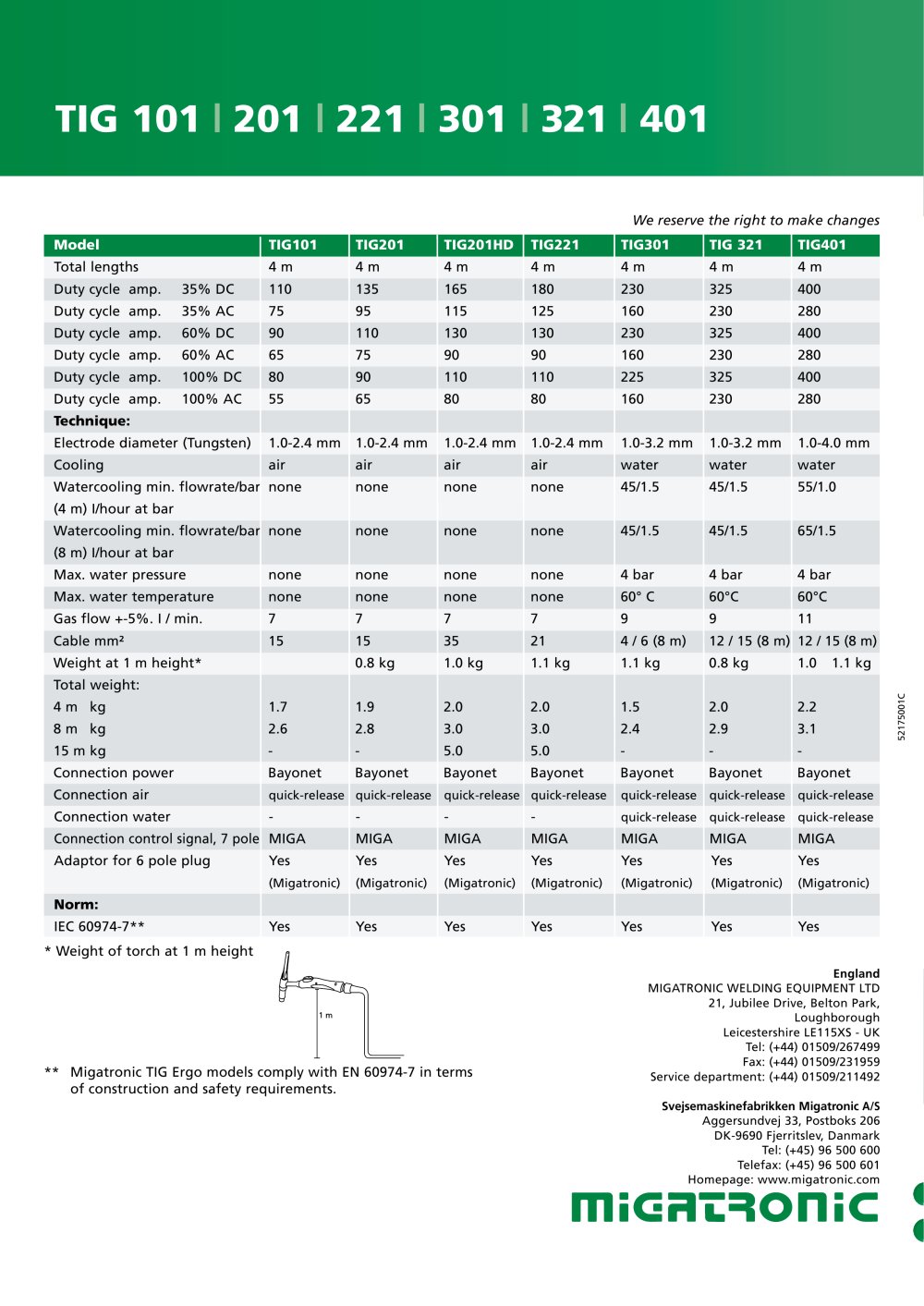

TIG 101 | 201 | 221 | 301 | 321 | 401

We reserve the right to make changes Model TIG101 TIG201 TIG201HD TIG221 TIG301 TIG 321 TIG401 Total lengths 4 m 4 m 4 m 4 m 4 m 4 m 4 m Duty cycle amp. 35% DC 110 135 165 180 230 325 400 Duty cycle amp. 35% AC 75 95 115 125 160 230 280Duty cycle amp. 60% DC 90 110 130 130 230 325 400Duty cycle amp. 60% AC 65 75 90 90 160 230 280 Duty cycle amp. 100% DC 80 90 110 110 225 325 400Duty cycle amp. 100% AC 55 65 80 80 160 230 280 Technique: Electrode diameter (Tungsten) 1.0-2.4 mm 1.0-2.4 mm 1.0-2.4 mm 1.0-2.4 mm 1.0-3.2 mm 1.0-3.2 mm 1.0-4.0 mmCooling air air air air water water waterWatercooling min. flowrate/bar none none none none 45/1.5 45/1.5 55/1.0(4 m) I/hour at bar Watercooling min. flowrate/bar none none none none 45/1.5 45/1.5 65/1.5(8 m) I/hour at bar Max. water pressure none none none none 4 bar 4 bar 4 barMax. water temperature none none none none 60° C 60°C 60°CGas flow +-5%. I / min. 7 7 7 7 9 9 11 Cable mm² 15 15 35 21 4 / 6 (8 m) 12 / 15 (8 m) 12 / 15 (8 m)Weight at 1 m height* 0.8 kg 1.0 kg 1.1 kg 1.1 kg 0.8 kg 1.0 1.1 kgTotal weight: 4 m kg 1.7 1.9 2.0 2.0 1.5 2.0 2.2 8 m kg 2.6 2.8 3.0 3.0 2.4 2.9 3.115 m kg - - 5.0 5.0 - - -Connection power Bayonet Bayonet Bayonet Bayonet Bayonet Bayonet BayonetConnection air
52175001C quick-release quick-release quick-release quick-release quick-release quick-release quick-release Connection water - - - -
quick-release quick-release quick-release Connection control signal, 7 pole MIGA MIGA MIGA MIGA MIGA MIGA MIGA Adaptor for 6 pole plug Yes Yes Yes Yes Yes Yes Yes
(Migatronic) (Migatronic) (Migatronic) (Migatronic) (Migatronic) (Migatronic) (Migatronic) Norm: IEC 60974-7** Yes Yes Yes Yes Yes Yes Yes * Weight of torch at 1 m height** Migatronic TIG Ergo models comply with EN 60974-7 in terms of construction and safety requirements.
