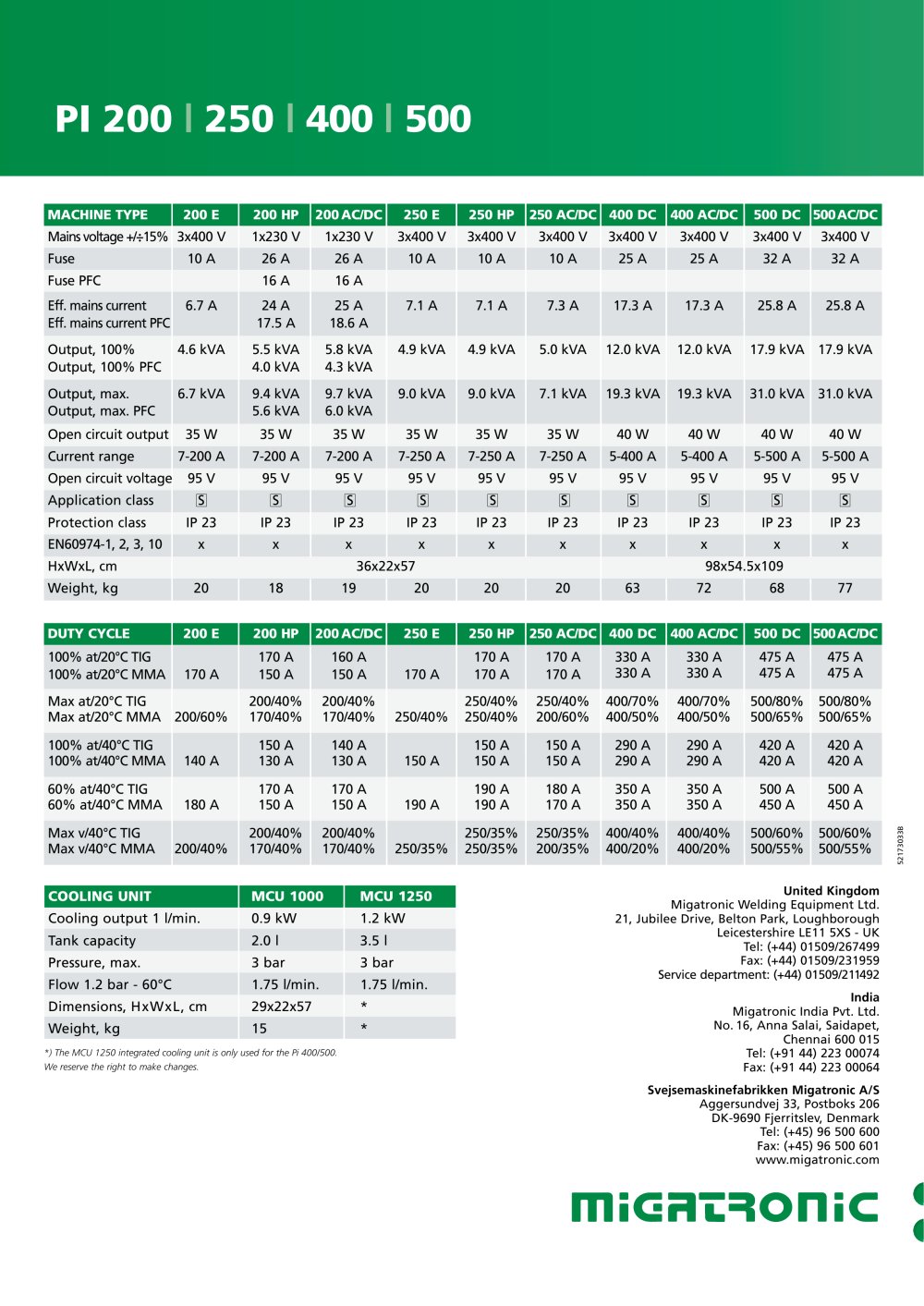

| | | | 250 | 400 | 500 | | |
| | | 200 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | MACHINE TYPE | 200 E | 200 HP | 200 AC/DC | 250 E | 250 HP | 250 AC/DC | 400 DC | 400 AC/DC | 500 DC | 500 AC/DC | | | | Mains voltage +/f15% 3x400 V | 1x230 V | 1x230 V | 3x400 V | 3x400 V | 3x400 V | 3x400 V | 3x400 V | 3x400 V | 3x400 V | | | | Fuse | 10 A | 26 A | 26 A | 10 A | 10 A | 10 A | 25 A | 25 A | 32 A | 32 A | | | | Fuse PFC | | 16 A | 16 A | | | | | | | | | | | Eff. mains current | 6.7 A | 24 A | 25 A | 7.1 A | 7.1 A | 7.3 A | 17.3 A | 17.3 A | 25.8 A | 25.8 A | | | | Eff. mains current PFC | | 17.5 A | 18.6 A | | | | | | | | | | | Output, 100% | 4.6 kVA | 5.5 kVA | 5.8 kVA | 4.9 kVA | 4.9 kVA | 5.0 kVA | 12.0 kVA | 12.0 kVA | 17.9 kVA | 17.9 kVA | | | | Output, 100% PFC | | 4.0 kVA | 4.3 kVA | | | | | | | | | | | Output, max. | 6.7 kVA | 9.4 kVA | 9.7 kVA | 9.0 kVA | 9.0 kVA | 7.1 kVA | 19.3 kVA | 19.3 kVA | 31.0 kVA | 31.0 kVA | | | | Output, max. PFC | | 5.6 kVA | 6.0 kVA | | | | | | | | | | | Open circuit output | 35 W | 35 W | 35 W | 35 W | 35 W | 35 W | 40 W | 40 W | 40 W | 40 W | | | | Current range | 7-200 A | 7-200 A | 7-200 A | 7-250 A | 7-250 A | 7-250 A | 5-400 A | 5-400 A | 5-500 A | 5-500 A | | | | Open circuit voltage | 95 V | 95 V | 95 V | 95 V | 95 V | 95 V | 95 V | 95 V | 95 V | 95 V | | | | Application class | S | S | S | | | S | S | S | S | | | | | Protection class | IP 23 | IP 23 | IP 23 | IP 23 | IP 23 | IP 23 | IP 23 | IP 23 | IP 23 | IP 23 | | | | EN60974-1, 2, 3, 10 | x | x | x | x | x | x | x | x | x | x | | | | HxWxL, cm | | | 36x22x57 | | | | 98x54.5x109 | | | | | | | | | | | | | | | | | | | |
| | | |
| | | Weight, kg 20 18 19 20 20 20 63 72 68 77 | | |
| | | |
| | | | | | | | | | | | | | | | | | | DUTY CYCLE | 200 E | 200 HP | 200 AC/DC | 250 E | 250 HP | 250 AC/DC | 400 DC | 400 AC/DC | 500 DC | 500 AC/DC | | | | 100% at/20°C TIG 100% at/20°C MMA | 170 A | 170 A 150 A | 160 A 150 A | 170 A | 170 A 170 A | 170 A 170 A | 330 A 330 A | 330 A 330 A | 475 A 475 A | 475 A 475 A | | | | Max at/20°C TIG Max at/20°C MMA | 200/60% | 200/40% 170/40% | 200/40% 170/40% | 250/40% | 250/40% 250/40% | 250/40% 200/60% | 400/70% 400/50% | 400/70% 400/50% | 500/80% 500/65% | 500/80% 500/65% | | | | 100% at/40°C TIG 100% at/40°C MMA | 140 A | 150 A 130 A | 140 A 130 A | 150 A | 150 A 150 A | 150 A 150 A | 290 A 290 A | 290 A 290 A | 420 A 420 A | 420 A 420 A | | | | 60% at/40°C TIG 60% at/40°C MMA | 180 A | 170 A 150 A | 170 A 150 A | 190 A | 190 A 190 A | 180 A 170 A | 350 A 350 A | 350 A 350 A | 500 A 450 A | 500 A 450 A | | | | Max v/40°C TIG Max v/40°C MMA | 200/40% | 200/40% 170/40% | 200/40% 170/40% | 250/35% | 250/35% 250/35% | 250/35% 200/35% | 400/40% 400/20% | 400/40% 400/20% | 500/60% 500/55% | 500/60% 500/55% | | | | | | | | | | | | | | | | | | |
| | | o | | |
| | | |
| | | |
| | | | | | | | | | | COOLING UNIT | MCU 1000 | MCU 1250 | | | | Cooling output 1 l/min. | 0.9 kW | 1.2 kW | | | | Tank capacity | 2.0 l | 3.5 l | | | | Pressure, max. | 3 bar | 3 bar | | | | Flow 1.2 bar - 60°C | 1.75 l/min. | 1.75 l/min. | | | | Dimensions, HxWxL, cm | 29x22x57 | * | | | | Weight, kg | 15 | * | | | | | | | | | | |
| | | United Kingdom Migatronic Welding Equipment Ltd. 21, Jubilee Drive, Belton Park, Loughborough Leicestershire LE11 5XS - UK Tel: (+44) 01509/267499 Fax: (+44) 01509/231959 Service department: (+44) 01509/211492 India Migatronic India Pvt. Ltd. No. 16, Anna Salai, Saidapet, Chennai 600 015 Tel: (+91 44) 223 00074 Fax: (+91 44) 223 00064 Svejsemaskinefabrikken Migatronic A/S Aggersundvej 33, Postboks 206 DK-9690 Fjerritslev, Denmark Tel: (+45) 96 500 600 Fax: (+45) 96 500 601 www.migatronic.com | | |
| | | |
| | | *) The MCU 1250 integrated cooling unit is only used for the Pi 400/500. We reserve the right to make changes. | | |
| | | |
| | | |
