NAVIGATOR

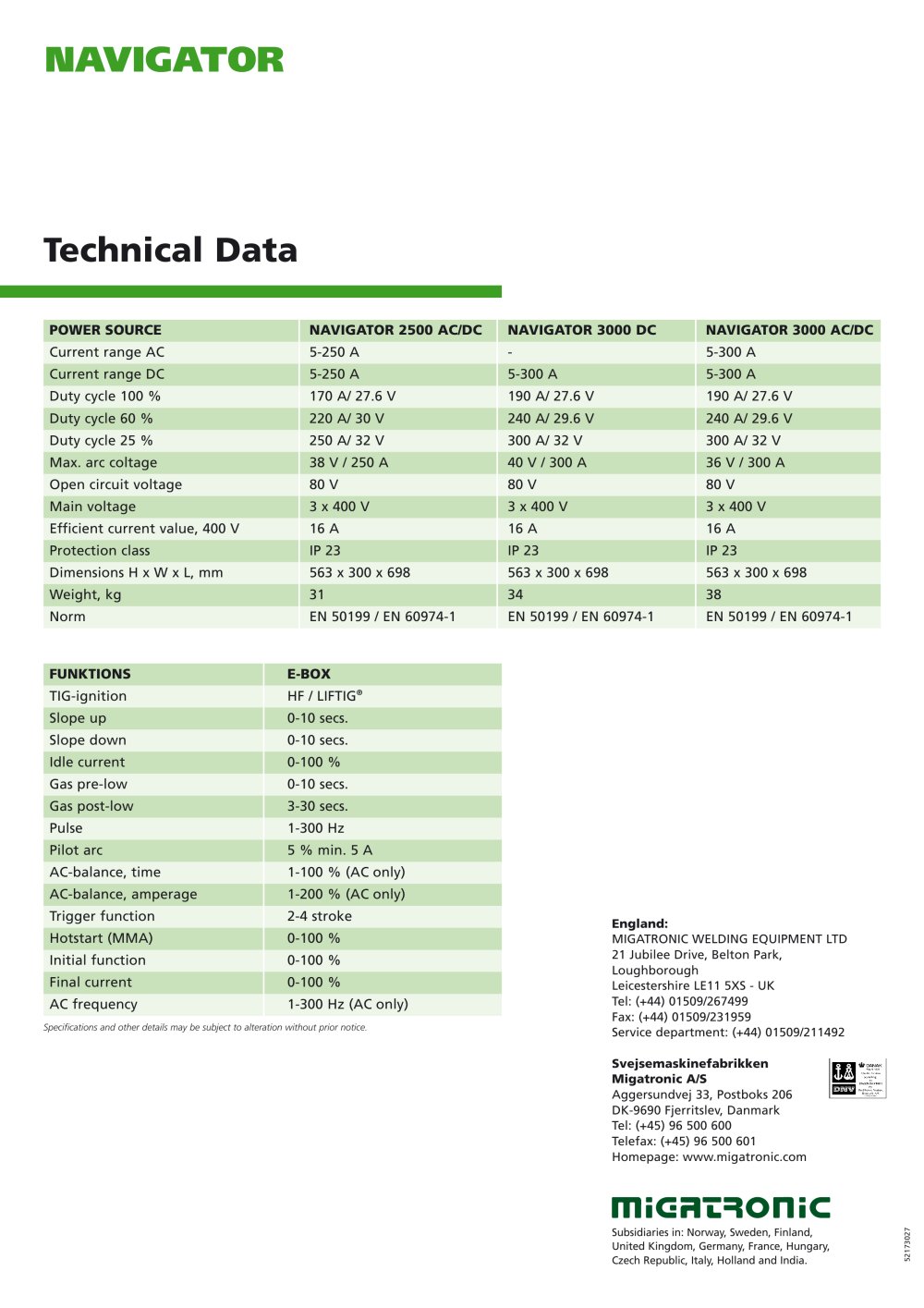

Technical Data

POWERSOURCENAVIGATOR 2500 AC/DCNAVIGATOR 3000 DC NAVIGATOR 3000 AC/DC Current range AC5-250 A-5-300 ACurrent range DC5-250 A5-300 A5-300 ADuty cycle 100 %170 A/ 27.6 V190 A/ 27.6 V190 A/ 27.6 VDuty cycle 60 %220 A/ 30 V240 A/ 29.6 V240 A/ 29.6 V Duty cycle 25 %250 A/ 32 V300 A/ 32 V300 A/ 32 V Max. arc coltage38 V / 250 A40 V / 300 A36 V / 300 A Open circuit voltage80 V80 V80 VMain voltage3 x 400 V3 x 400 V3 x 400 V Efficient current value, 400 V16 A16 A16 AProtection classIP 23IP 23IP 23 Dimensions H x W x L, mm563 x 300 x 698563 x 300 x 698563 x 300 x 698 Weight, kg313438NormEN 50199 / EN 60974-1EN 50199 / EN 60974-1EN 50199 / EN 60974-1 FUNKTIONSE-BOX TIG-ignitionHF / LIFTIG
® Slope up0-10 secs. Slope down0-10 secs. Idle current0-100 % Gas pre-low0-10 secs. Gas post-low3-30 secs.Pulse1-300 HzPilot arc5 % min. 5 A AC-balance, time1-100 % (AConly) AC-balance, amperage1-200 % (AConly) Trigger function2-4 strokeHotstart (MMA)0-100 % Initial function0-100 %Final current0-100 % AC frequency1-300 Hz (AConly)
