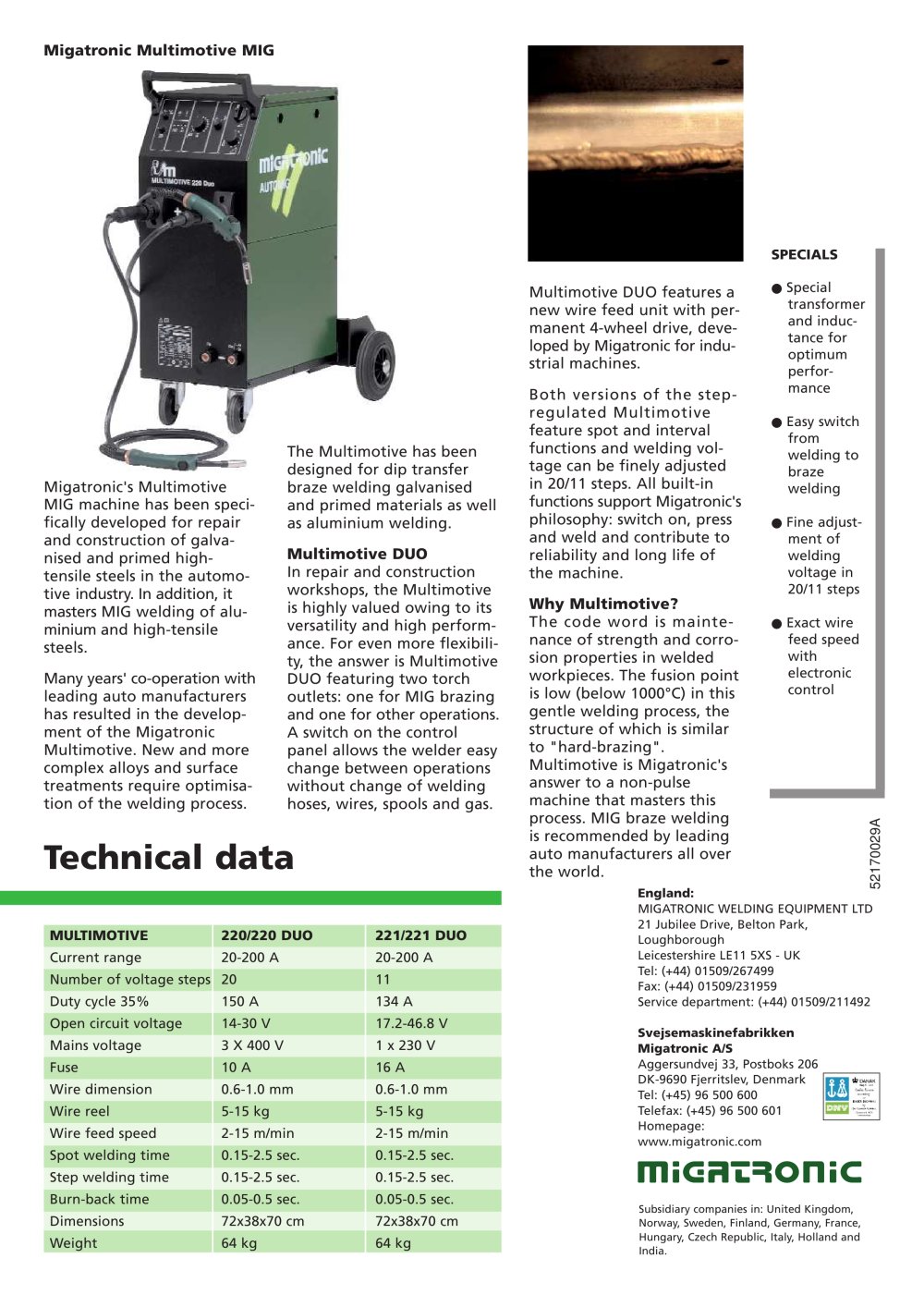

Migatronic Multimotive MIG
SPECIALS
Special transformer and induc­tance for optimum perfor­mance
Easy switch from
welding to
braze
welding
Fine adjust­ment of welding voltage in 20/11 steps
Exact wire feed speed with
electronic control
Multimotive DUO features a new wire feed unit with per­manent 4-wheel drive, deve­loped by Migatronic for indu­strial machines.
Both versions of the step-regulated Multimotive feature spot and interval functions and welding vol­tage can be finely adjusted in 20/11 steps. All built-in functions support Migatronic's philosophy: switch on, press and weld and contribute to reliability and long life of the machine.
Why Multimotive?
The code word is mainte­nance of strength and corro­sion properties in welded workpieces. The fusion point is low (below 1000°C) in this gentle welding process, the structure of which is similar to "hard-brazing". Multimotive is Migatronic's answer to a non-pulse machine that masters this process. MIG braze welding is recommended by leading auto manufacturers all over the world.
The Multimotive has been designed for dip transfer braze welding galvanised and primed materials as well as aluminium welding.
Multimotive DUO
In repair and construction workshops, the Multimotive is highly valued owing to its versatility and high perform­ance. For even more flexibili­ty, the answer is Multimotive DUO featuring two torch outlets: one for MIG brazing and one for other operations. A switch on the control panel allows the welder easy change between operations without change of welding hoses, wires, spools and gas.
Migatronic's Multimotive MIG machine has been speci­fically developed for repair and construction of galva­nised and primed high-tensile steels in the automo­tive industry. In addition, it masters MlG welding of alu­minium and high-tensile steels.
Many years' co-operation with leading auto manufacturers has resulted in the develop­ment of the Migatronic Multimotive. New and more complex alloys and surface treatments require optimisa­tion of the welding process.
<
CN O O h­in
Technical data
England:
MIGATRONIC WELDING EQUIPMENT LTD
21 Jubilee Drive, Belton Park,
Loughborough
Leicestershire LE11 5XS - UK
Tel: (+44) 01509/267499
Fax: (+44) 01509/231959
Service department: (+44) 01509/211492
Svejsemaskinefabrikken Migatronic A/S
Aggersundvej 33, Postboks 206 DK-9690 Fjerritslev, Denmark Tel: (+45) 96 500 600 Telefax: (+45) 96 500 601 Homepage: www.migatronic.com
msGrmonic
Subsidiary companies in: United Kingdom, Norway, Sweden, Finland, Germany, France, Hungary, Czech Republic, Italy, Holland and India.
MULTIMOTIVE
220/220 DUO
221/221 DUO
Current range
20-200 A
20-200 A
Number of voltage steps
20
11
Duty cycle 35%
150 A
134 A
Open circuit voltage
14-30 V
17.2-46.8 V
Mains voltage
3 X 400 V
1 x 230 V
Fuse
10 A
16 A
Wire dimension
0.6-1.0 mm
0.6-1.0 mm
Wire reel
5-15 kg
5-15 kg
Wire feed speed
2-15 m/min
2-15 m/min
Spot welding time
0.15-2.5 sec.
0.15-2.5 sec.
Step welding time
0.15-2.5 sec.
0.15-2.5 sec.
Burn-back time
0.05-0.5 sec.
0.05-0.5 sec.
Dimensions
72x38x70 cm
72x38x70 cm
Weight
64 kg
64 kg
