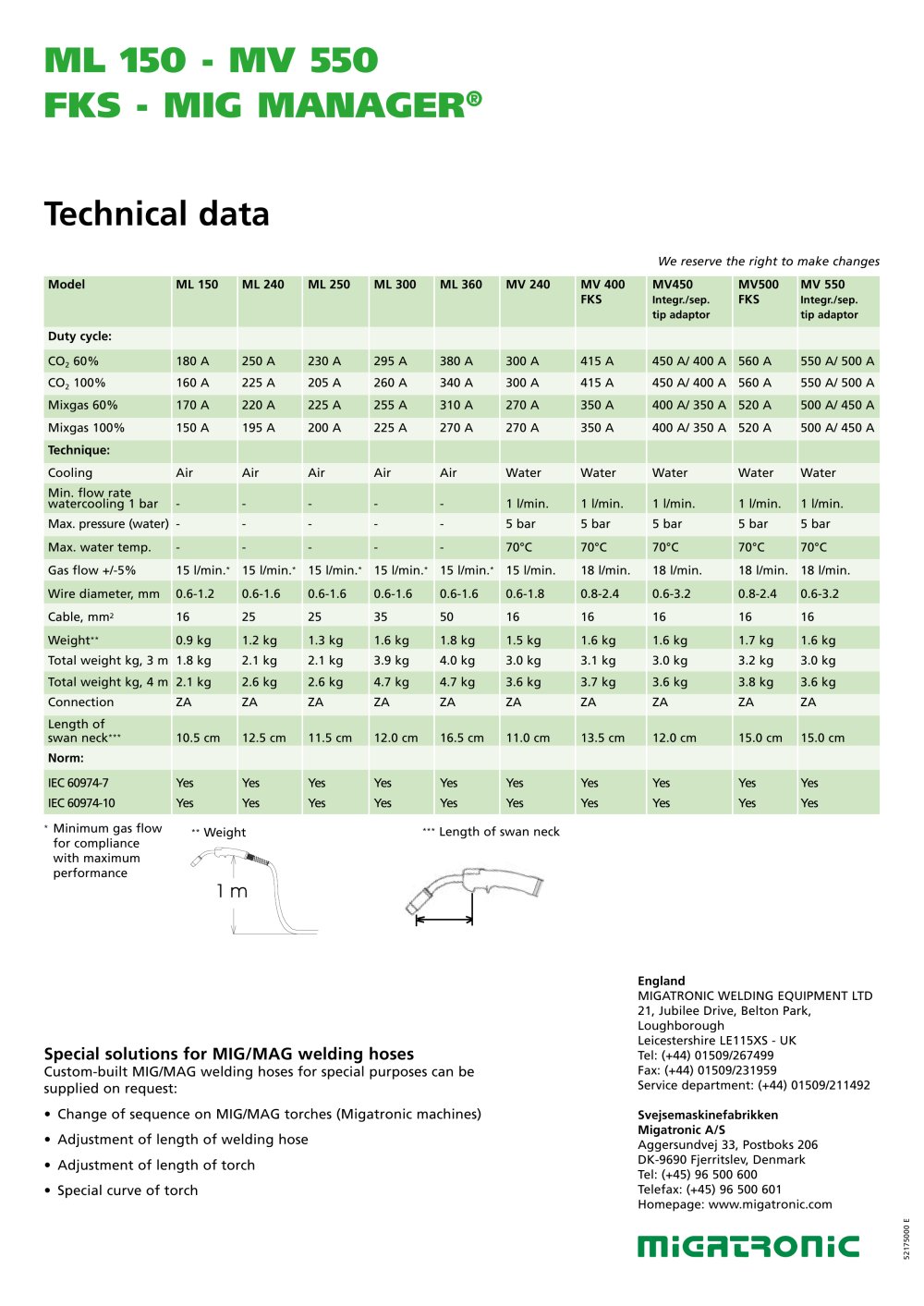

ML 150 - MV 550FKS - MIG MANAGER

®

Technical data

We reserve the right to make changes Model ML 150 ML 240 ML 250 ML 300 ML 360 MV 240 MV 400 MV450 MV500 MV 550 FKS
Integr./sep. FKS
Integr./sep. tip adaptor tip adaptor Duty cycle: CO
2 60% 180 A 250 A 230 A 295 A 380 A 300 A 415 A 450 A/ 400 A 560 A 550 A/ 500 ACO
2 100% 160 A 225 A 205 A 260 A 340 A 300 A 415 A 450 A/ 400 A 560 A 550 A/ 500 AMixgas 60% 170 A 220 A 225 A 255 A 310 A 270 A 350 A 400 A/ 350 A 520 A 500 A/ 450 AMixgas 100% 150 A 195 A 200 A 225 A 270 A 270 A 350 A 400 A/ 350 A 520 A 500 A/ 450 A Technique: Cooling Air Air Air Air Air Water Water Water Water Water Min. flow ratewatercooling 1 bar - - - - - 1 l/min. 1 l/min. 1 l/min. 1 l/min. 1 l/min.Max. pressure (water) - - - - - 5 bar 5 bar 5 bar 5 bar 5 barMax. water temp. - - - - - 70°C 70°C 70°C 70°C 70°CGas flow +/-5% 15 l/min.
* 15 l/min.
* 15 l/min.
* 15 l/min.
* 15 l/min.
* 15 l/min. 18 l/min. 18 l/min. 18 l/min. 18 l/min.Wire diameter, mm 0.6-1.2 0.6-1.6 0.6-1.6 0.6-1.6 0.6-1.6 0.6-1.8 0.8-2.4 0.6-3.2 0.8-2.4 0.6-3.2Cable, mm
2 16 25 25 35 50 16 16 16 16 16Weight
** 0.9 kg 1.2 kg 1.3 kg 1.6 kg 1.8 kg 1.5 kg 1.6 kg 1.6 kg 1.7 kg 1.6 kgTotal weight kg, 3 m 1.8 kg 2.1 kg 2.1 kg 3.9 kg 4.0 kg 3.0 kg 3.1 kg 3.0 kg 3.2 kg 3.0 kgTotal weight kg, 4 m 2.1 kg 2.6 kg 2.6 kg 4.7 kg 4.7 kg 3.6 kg 3.7 kg 3.6 kg 3.8 kg 3.6 kgConnection ZA ZA ZA ZA ZA ZA ZA ZA ZA ZALength of swan neck
*** 10.5 cm 12.5 cm 11.5 cm 12.0 cm 16.5 cm 11.0 cm 13.5 cm 12.0 cm 15.0 cm 15.0 cm Norm: IEC 60974-7 Yes Yes Yes Yes Yes Yes Yes Yes Yes YesIEC 60974-10 Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
* Minimum gas flow for compliance with maximum performance
** Weight
*** Length of swan neck England MIGATRONIC WELDING EQUIPMENT LTD 21, Jubilee Drive, Belton Park, Loughborough Leicestershire LE115XS - UK Tel: (+44) 01509/267499Fax: (+44) 01509/231959Service department: (+44) 01509/211492 SvejsemaskinefabrikkenMigatronic A/S Aggersundvej 33, Postboks 206 DK-9690 Fjerritslev, Denmark Tel: (+45) 96 500 600 Telefax: (+45) 96 500 601 Homepage: www.migatronic.com

Special solutions for MIG/MAG welding hoses

Custom-built MIG/MAG welding hoses for special purposes can be supplied on request:• Change of sequence on MIG/MAG torches (Migatronic machines) • Adjustment of length of welding hose • Adjustment of length of torch • Special curve of torch

52175000 E
