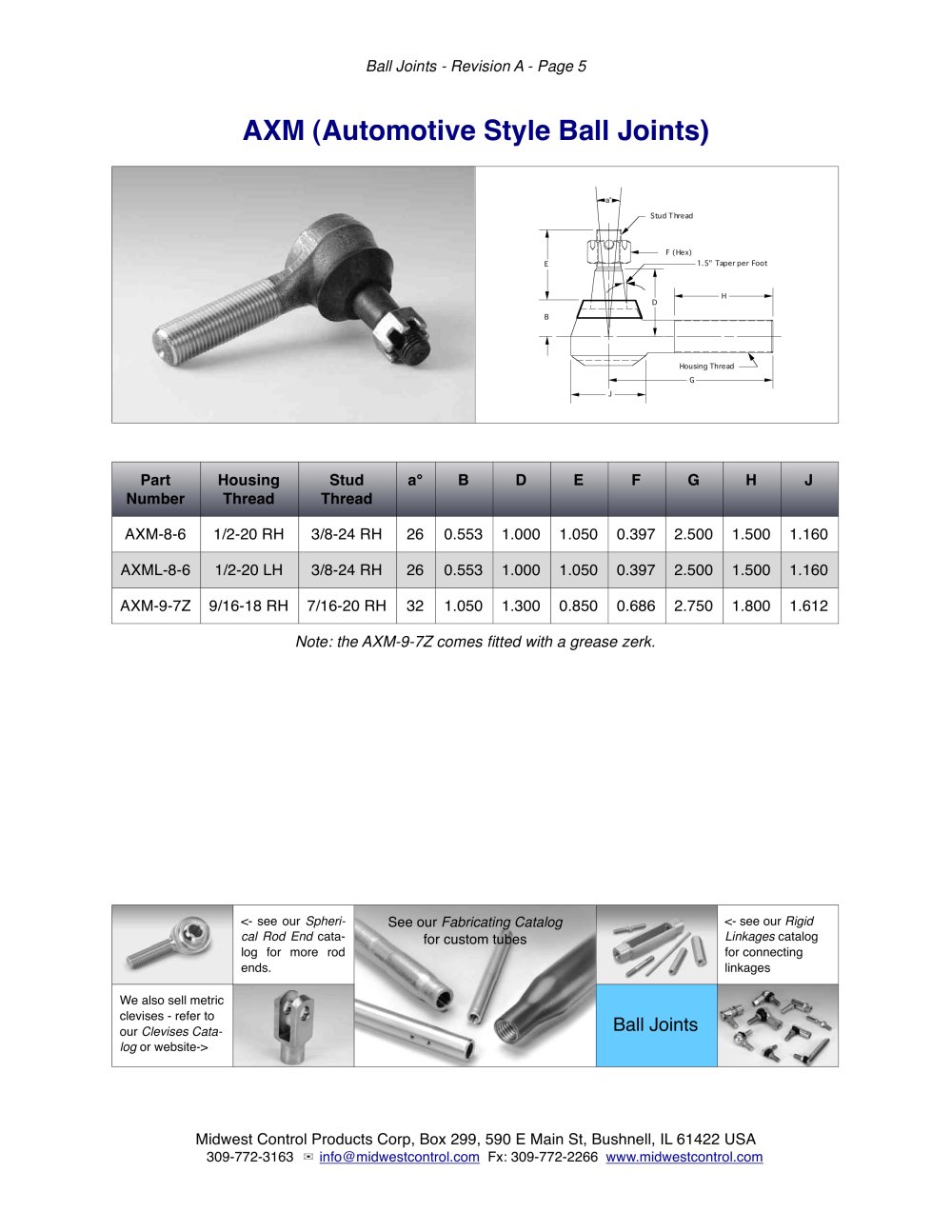

Ball joints - Revision A - Page 5
AXM (Automotive Style Ball Joints)
a Stud Thread F (Hex) E 1.5" Taper per Foot H D B Housing Thread G J Part Number Housing Thread Stud Thread a B D E F G H J AXM-8-61/2-20 RH3/8-24 RH260.5531.0001.0500.3972.5001.5001.160 AXML-8-6 1/2-20 LH 3/8-24 RH 26 0.553 1.000 1.050 0.397 2.500 1.500 1.160AXM-9-7Z9/16-18 RH7/16-20 RH321.0501.3000.8500.6862.7501.8001.612 Note: the AXM-9-7Z comes fitted with a grease zerk.
<- see our Spheri-calRodEnd See our Fabricating Catalog <- see our RigidLinkages cata-log for more rod ends. for custom tubes catalog for connecting linkagesWe also sell metric clevises - refer to our Clevises Cata-log or website-> Ball Joints
Midwest Control Products Corp, Box 299, 590 E Main St, Bushnell, IL 61422 USA
ὸ 309-772-3163 info@midwestcontrol.com Fx: 309-772-2266 www.midwestcontrol.com
