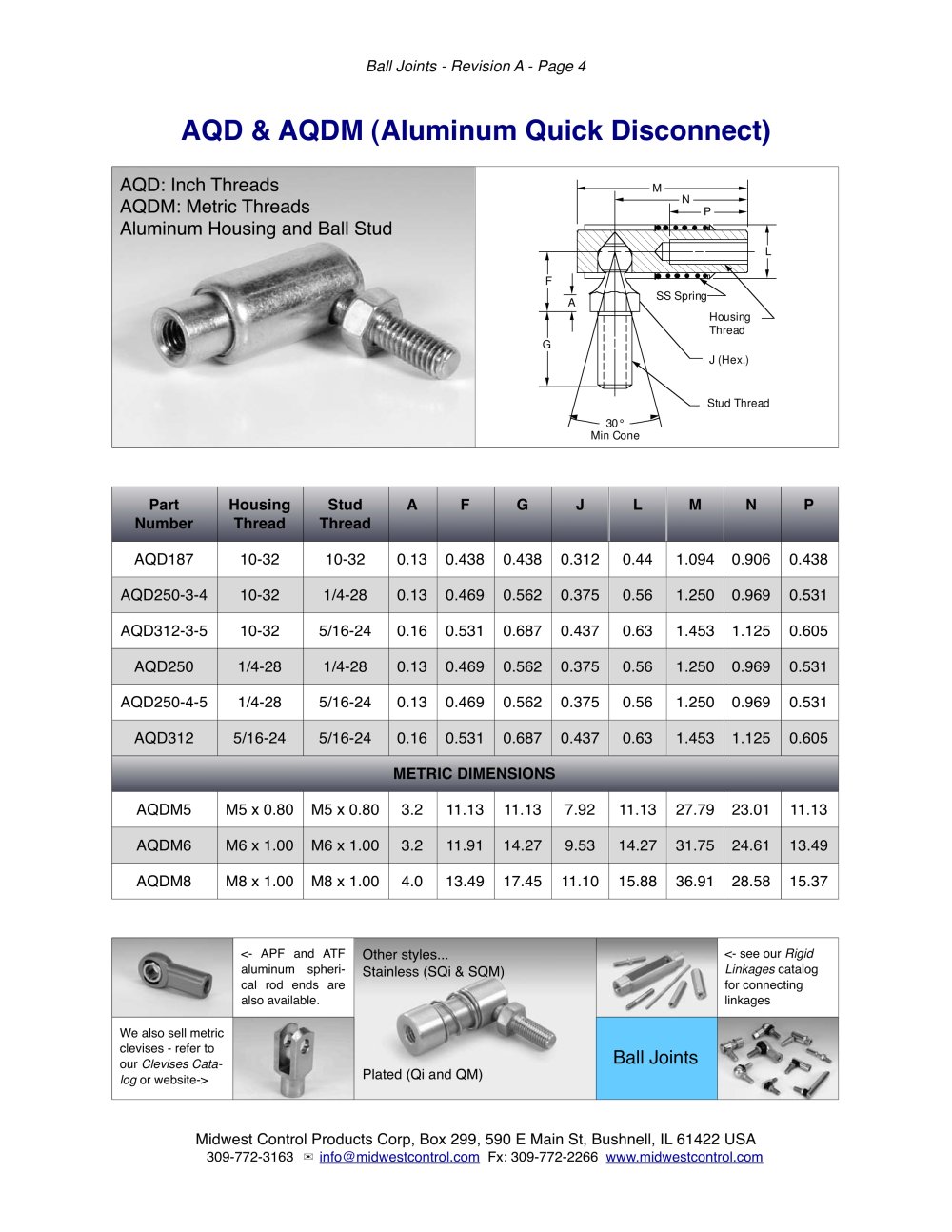

Ball Joints - Revision A - Page 4

AQD & AQDM (Aluminum Quick Disconnect)

Min Cone


Part Number	Housing Thread	Stud Thread	A	F	G 0.438	J	—I	M	N	P
AQD187	10-32	10-32	0.13	0.438	G 0.438	0.312	0.44	1.094	0.906	0.438
AQD250-3-4	10-32	1/4-28	0.13	0.469	0.562	0.375	0.56	1.250	0.969	0.531
AQD312-3-5	10-32	5/16-24	0.16	0.531	0.687	0.437	0.63	1.453	1.125	0.605
AQD250	1/4-28	1/4-28	0.13	0.469	0.562	0.375	0.56	1.250	0.969	0.531
AQD250-4-5	1/4-28	5/16-24	0.13	0.469	0.562	0.375	0.56	1.250	0.969	0.531
AQD312	5/16-24	5/16-24	0.16	0.531	0.687	0.437	0.63	1.453	1.125	0.605
METRIC DIMENSIONS
AQDM5	M5 x 0.80	M5 x 0.80	3.2	11.13	11.13	7.92	11.13	27.79	23.01	11.13
AQDM6	M6 x 1.00	M6 x 1.00	3.2	11.91	14.27	9.53	14.27	31.75	24.61	13.49
AQDM8	M8 x 1.00	M8 x 1.00	4.0	13.49	17.45	11.10	15.88	36.91	28.58	15.37
