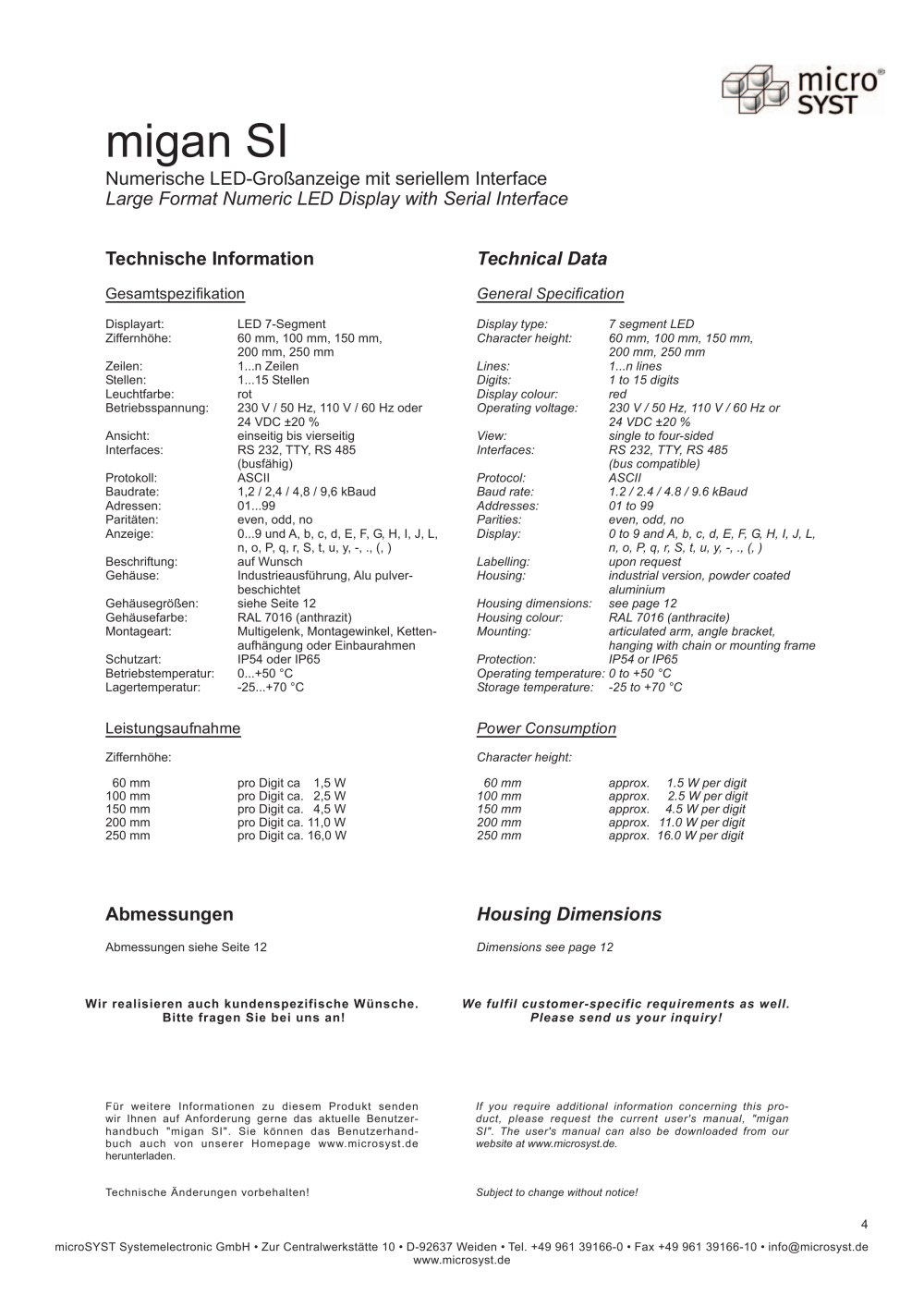

| | | Displayart: Ziffernhöhe: Zeilen: Stellen: Leuchtfarbe: Betriebsspannung: Ansicht: Interfaces: Protokoll: Baudrate: Adressen: Paritäten: Anzeige: Beschriftung: Gehäuse: Gehäusegrößen: Gehäusefarbe: Montageart: Schutzart: Betriebstemperatur: Lagertemperatur: | | LED 7-Segment 60 mm, 100 mm, 150 mm, 200 mm, 250 mm 1...n Zeilen 1...15 Stellen rot 230V/50 Hz, 110V/60 Hzoder 24 VDC ±20 % einseitig bis vierseitig RS 232, TTY, RS 485 (busfähig) ASCII 1,2/2,4/4,8/9,6 kBaud 01...99 even, odd, no 0...9 undA, b, c, d, E, F, G, H, I, J, L, n, o, P, q, r, S, t, u, y, -, (, ) aufWunsch Industrieausführung, Alu pulverbeschichtet siehe Seite 12 RAL 7016 (anthrazit) Multigelenk, Montagewinkel, Kettenaufhängung oder Einbaurahmen IP54 oderIP65 0...+50 °C -25..+70 °C | | Display type: Character height: Lines: Digits: Display colour: Operating voltage: View: Interfaces: Protocol: Baud rate: Addresses: Parities: Display: Labelling: Housing: Housing dimensions: Housing colour: Mounting: Protection: Operating temperature: storage temperature: | | 7 segment LED 60 mm, 100 mm, 150 mm, 200 mm, 250 mm 1...n lines 1to15 digits red 230 V/50 Hz, 110 V/60 Hz or 24 VDC ±20 % single to four-sided RS 232, TTY, RS 485 (bus compatible) ASCII 1.2/2.4/4.8/9.6kBaud 01 to 99 even, odd, no 0to9 and A, b, c, d, E, F, G, H, I, J, L, n, o, P, q, r, S, t, u, y, -, (,) upon request industrial version, powder coated aluminium see page 12 RAL 7016(anthracite) articulated arm, angle bracket, hanging with chain or mounting frame IP54orIP65 0 to +50 C -25 to +70 °C | | |
