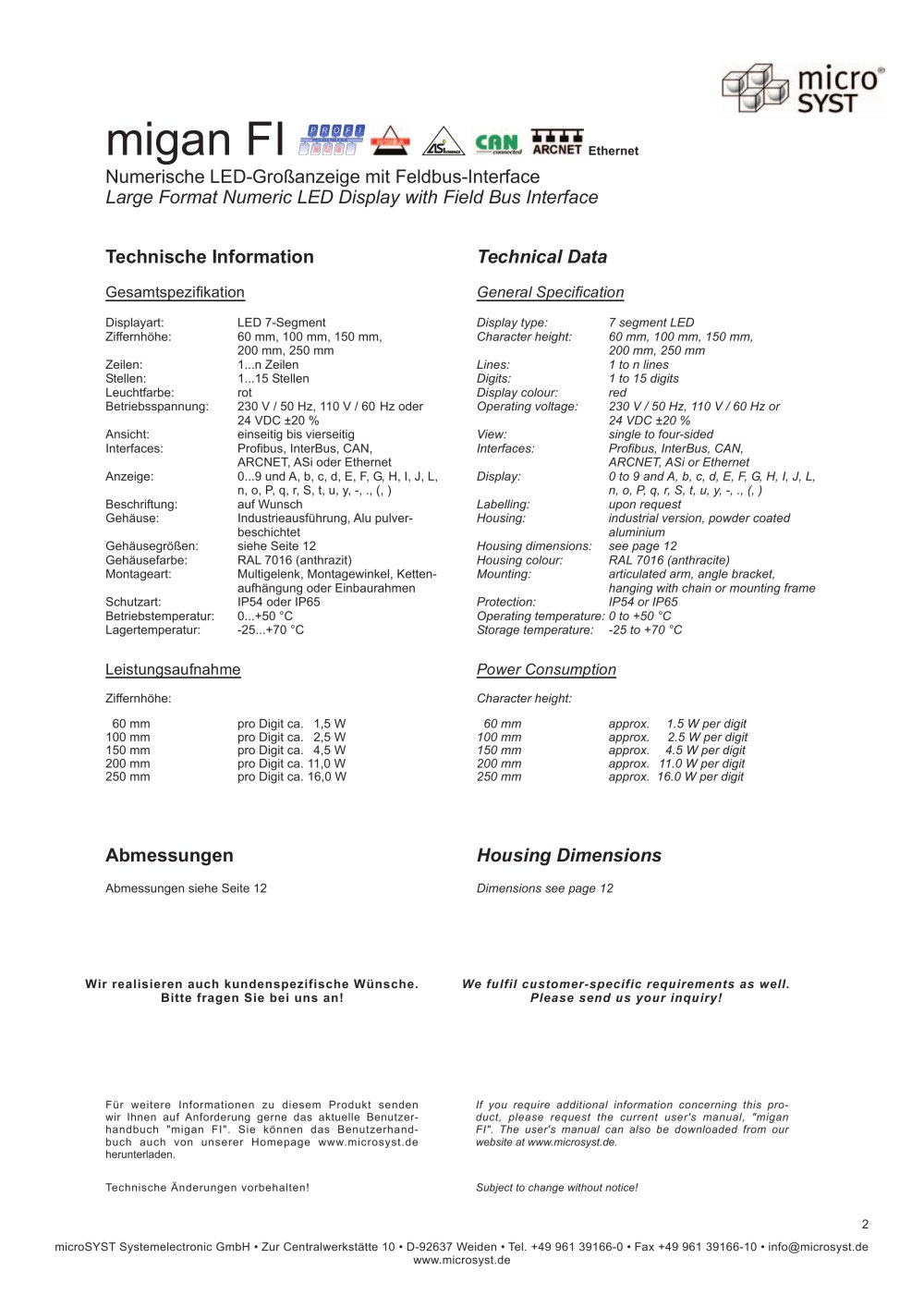

| | | Displayart: Ziffernhöhe: Zeilen: Stellen: Leuchtfarbe: Betriebsspannung: Ansicht: Interfaces: Anzeige: Beschriftung: Gehäuse: Gehäusegrößen: Gehäusefarbe: Montageart: Schutzart: Betriebstemperatur: Lagertemperatur: | | LED 7-Segment 60 mm, 100 mm, 150 mm, 200 mm, 250 mm 1...n Zeilen 1...15 Stellen rot 230V/50 Hz, 110V/60 Hzoder 24 VDC ±20 % einseitig bis vierseitig Profibus, InterBus, CAN, ARCNET, ASi oder Ethernet 0...9 undA, b, c, d, E, F, G, H, I, J, L, n, o, P, q, r, S, t, u, y, -, (, ) aufWunsch Industrieausführung, Alu pulverbeschichtet siehe Seite 12 RAL 7016 (anthrazit) Multigelenk, Montagewinkel, Kettenaufhängung oder Einbaurahmen IP54 oderIP65 0...+50 °C -25..+70 °C | | Display type: Character height: Lines: Digits: Display colour: Operating voltage: View: Interfaces: Display: Labelling: Housing: Housing dimensions: Housing colour: Mounting: Protection: Operating temperature: storage temperature: | | 7 segment LED 60 mm, 100 mm, 150 mm, 200 mm, 250 mm 1ton lines 1to15 digits red 230 V/50 Hz, 110 V/60 Hz or 24 VDC ±20 % single to four-sided Profibus, InterBus, CAN, ARCNET, ASi or Ethernet 0to9 and A, b, c, d, E, F, G, H, I, J, L, n, o, P, q, r, S, t, u, y, -, , (,) upon request industrial version, powder coated aluminium see page 12 RAL 7016(anthracite) articulated arm, angle bracket, hanging with chain or mounting frame IP54orIP65 0 to +50 C -25 to +70 °C | | |
