migan Fl
ARCNET Ethernet

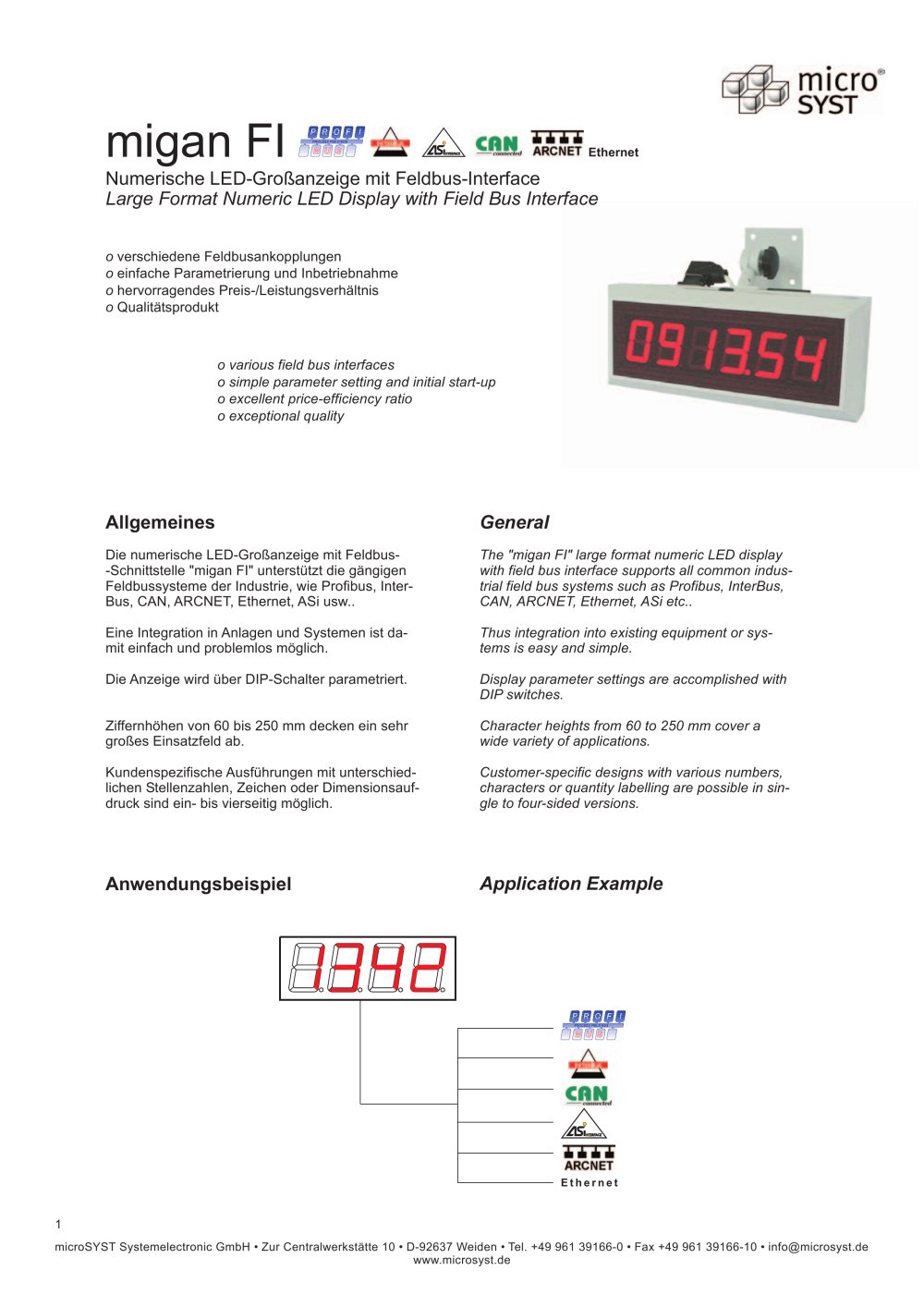

Numerische LED-Großanzeige mit Feldbus-Interface Large Format Numeric LED Display with Field Bus Interface
o verschiedene Feldbusankopplungen o einfache Parametrierung und Inbetriebnahme o hervorragendes Preis-/Leistungsverhältnis o Qualitätsprodukt
o various field bus interfaces
o simple parameter setting and initial start-up
o excellent price-efficiency ratio
o exceptional quality
Allgemeines
Die numerische LED-Großanzeige mit Feldbus­-Schnittstelle "migan Fl" unterstützt die gängigen Feldbussysteme der Industrie, wie Profibus, Inter-Bus, CAN, ARCNET, Ethernet, ASi usw..
Eine Integration in Anlagen und Systemen ist da­mit einfach und problemlos möglich.
Die Anzeige wird über DIP-Schalter parametriert.
General
The "migan Fl" large format numeric LED display with field bus interface supports all common indus­trial field bus systems such as Profibus, InterBus, CAN, ARCNET, Ethernet, ASi etc..
Thus integration into existing equipment or sys­tems is easy and simple.
Display parametersettings are accomplished with DlP switches.
Character heights from 60 to 250 mm covera wide variety ofapplications.
Customer-specific designs with various numbers, characters orquantity labelling are possible in sin­gle to four-sided versions.
Ziffernhöhen von 60 bis 250 mm decken ein sehr großes Einsatzfeld ab.
Kundenspezifische Ausführungen mit unterschied­lichen Stellenzahlen, Zeichen oder Dimensionsauf­druck sind ein- bis vierseitig möglich.
Anwendungsbeispiel Application Example
a
TTTT
ARCNET Ethernet
1
microSYST Systemelectronic GmbH • Zur Centralwerkstätte 10 • D-92637 Weiden • Tel. +49 961 39166-0 • Fax +49 961 39166-10 • info@microsyst.de
www.microsyst.de
