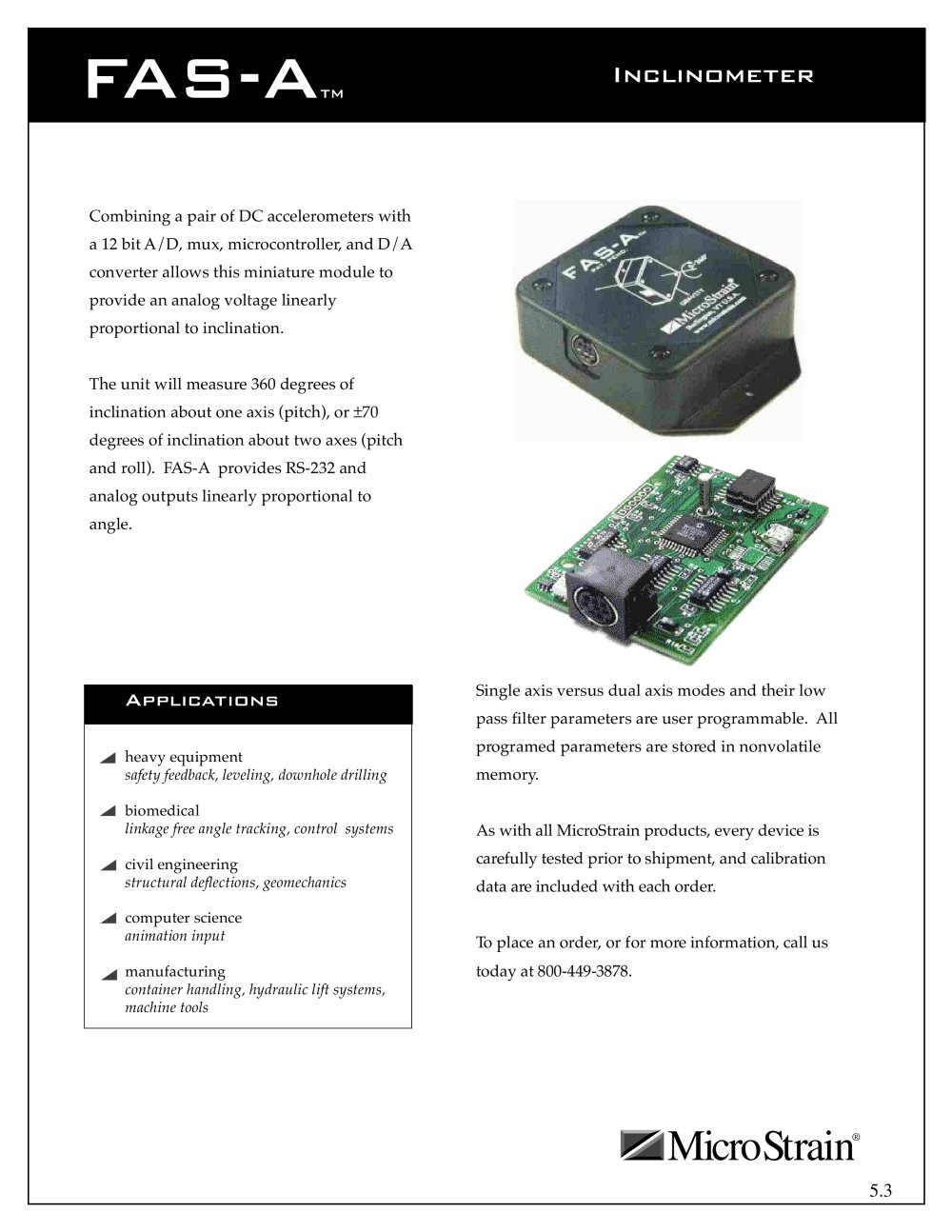

FAS-A

TM

Inclinometer

Combining a pair of DC accelerometers witha 12 bit A/D, mux, microcontroller, and D/A converter allows this miniature module to provide an analog voltage linearly proportional to inclination.The unit will measure 360 degrees ofinclination about one axis (pitch), or ± 70degrees of inclination about two axes (pitch and roll). FAS-A provides RS-232 and analog outputs linearly proportional to angle.

Applications

Single axis versus dual axis modes and their lowpass filter parameters are user programmable. All programed parameters are stored in nonvolatile memory.As with all MicroStrain products, every device iscarefully tested prior to shipment, and calibration data are included with each order.To place an order, or for more information, call ustoday at 800-449-3878.

heavy equipment safety feedback, leveling, downhole drilling biomedical linkage free angle tracking, control systems civil engineering structural deflections, geomechanics computer science animation input manufacturing container handling, hydraulic lift systems, machine tools

MicroStrain

®

5.3
