3DM

solid statepitch, roll, and yaw module TM

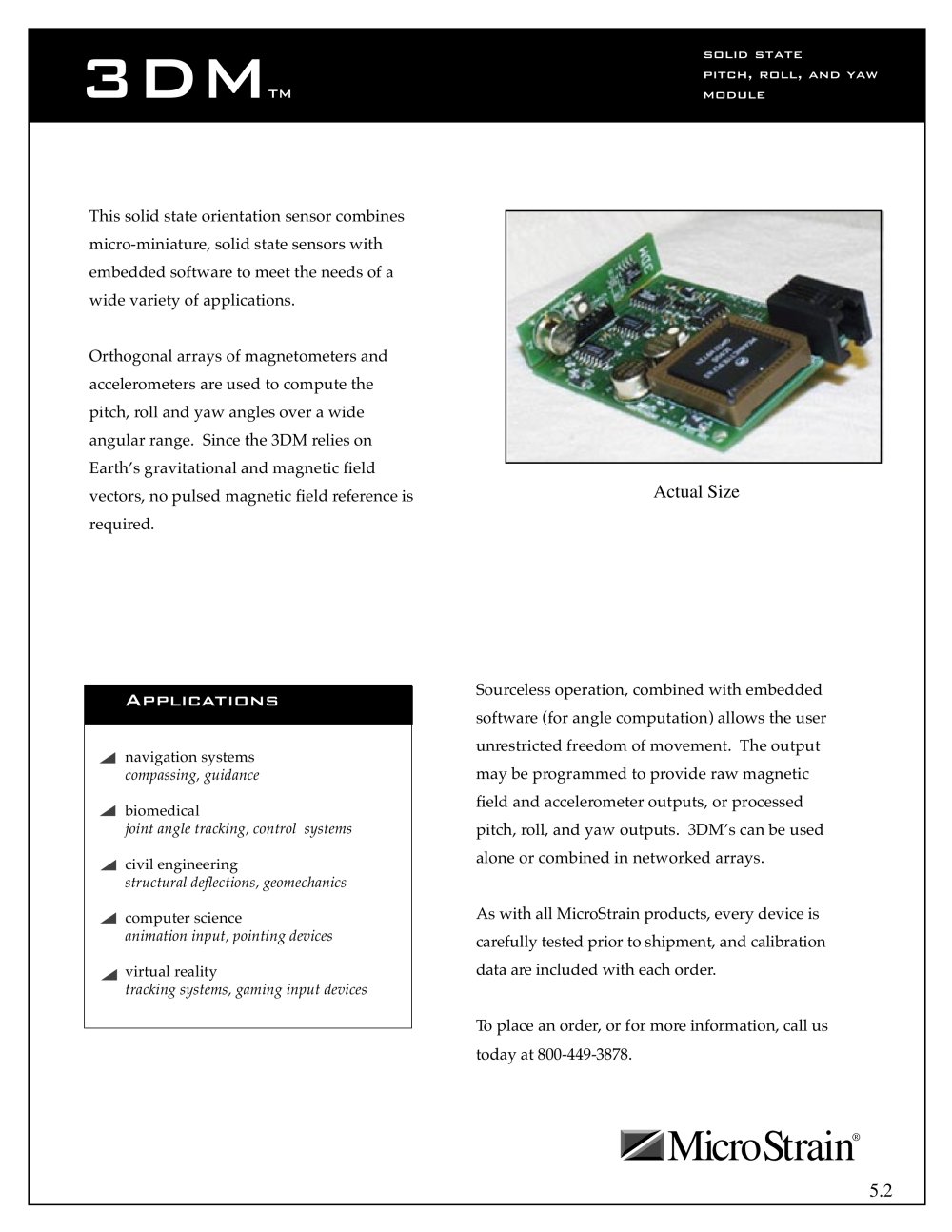

This solid state orientation sensor combinesmicro-miniature, solid state sensors with embedded software to meet the needs of a wide variety of applications.Orthogonal arrays of magnetometers andaccelerometers are used to compute the pitch, roll and yaw angles over a wide angular range. Since the 3DM relies on Earth’s gravitational and magnetic field vectors, no pulsed magnetic field reference is required.

Actual Size

Applications

Sourceless operation, combined with embeddedsoftware (for angle computation) allows the user unrestricted freedom of movement. The output may be programmed to provide raw magnetic field and accelerometer outputs, or processed pitch, roll, and yaw outputs. 3DM’s can be used alone or combined in networked arrays.As with all MicroStrain products, every device iscarefully tested prior to shipment, and calibration data are included with each order.To place an order, or for more information, call ustoday at 800-449-3878.

navigation systems compassing, guidance biomedical joint angle tracking, control systems civil engineering structural deflections, geomechanics computer science animation input, pointing devices virtual reality tracking systems, gaming input devices
