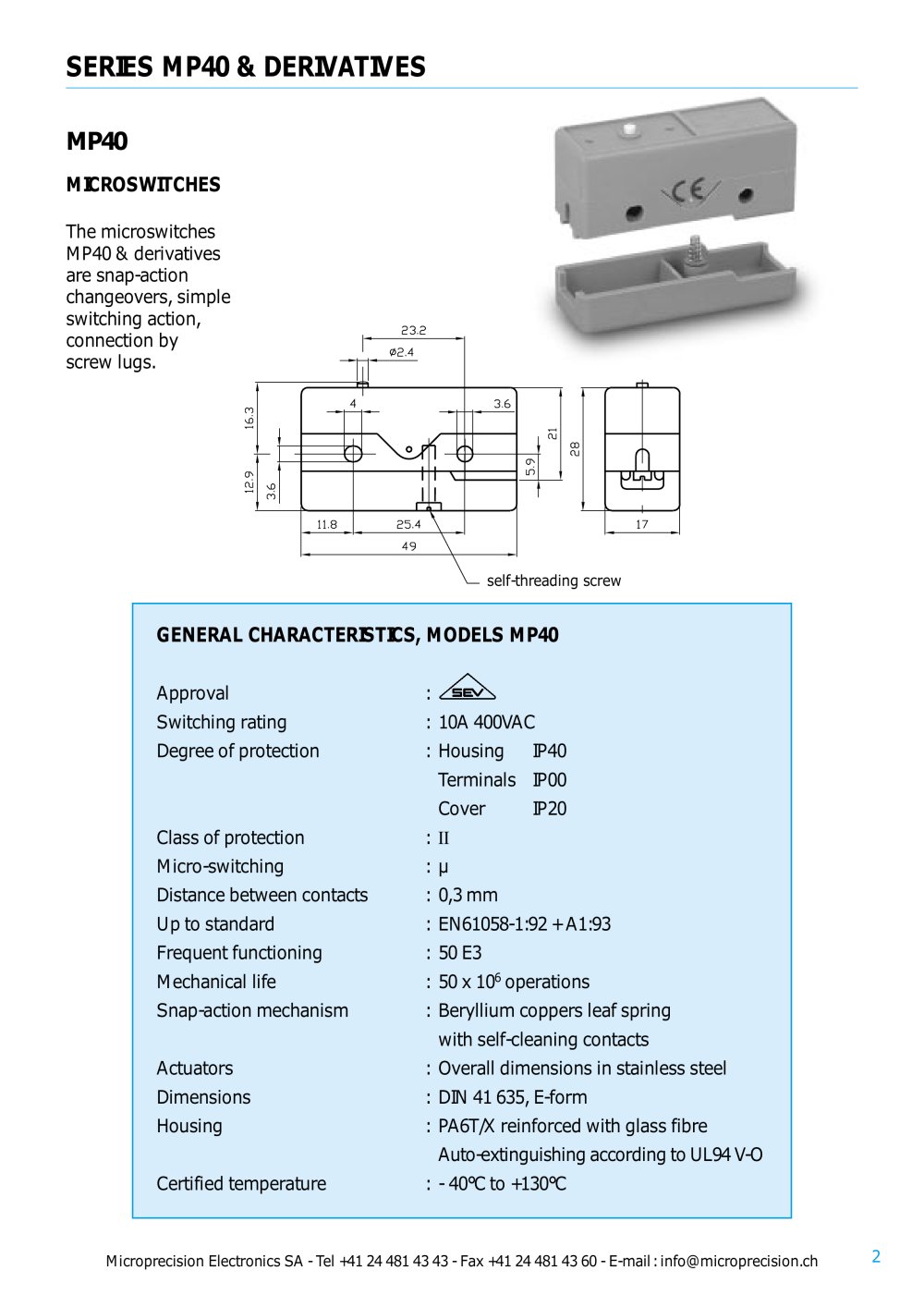

| | | SERIES MP40 & DERIVATIVES | | |
| | | |
| | | MP40 MICROSWITCHES The microswitches MP40 & derivatives are snap-action changeovers, simple switching action, connection by screw lugs. | | |
| | | |
| | | | | |
| | | |
| | | self-threading screw | | |
| | | |
| | | | | | | | | | GENERAL CHARACTERISTICS, MODELS MP40 | | | | Approval | | | | | Switching rating | : 10A 400VAC | | | | Degree of protection | : Housing IP40 | | | | | Terminals IP00 | | | | | Cover IP20 | | | | Class of protection | : II | | | | Micro-switching | : M | | | | Distance between contacts | : 0,3 mm | | | | Up to standard | : EN61058-1:92 + A1:93 | | | | Frequent functioning | : 50 E3 | | | | Mechanical life | : 50 x 106 operations | | | | Snap-action mechanism | : Beryllium coppers leaf spring | | | | | with self-cleaning contacts | | | | Actuators | : Overall dimensions in stainless steel | | | | Dimensions | : DIN 41 635, E-form | | | | Housing | : PA6T/X reinforced with glass fibre | | | | | Auto-extinguishing according to UL94 V-O | | | | Certified temperature | : - 40°C to +130°C | | | | | | | | | |
| | | |
| | | 2 | | |
| | | M icroprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail : info@microprecision.ch | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | |
