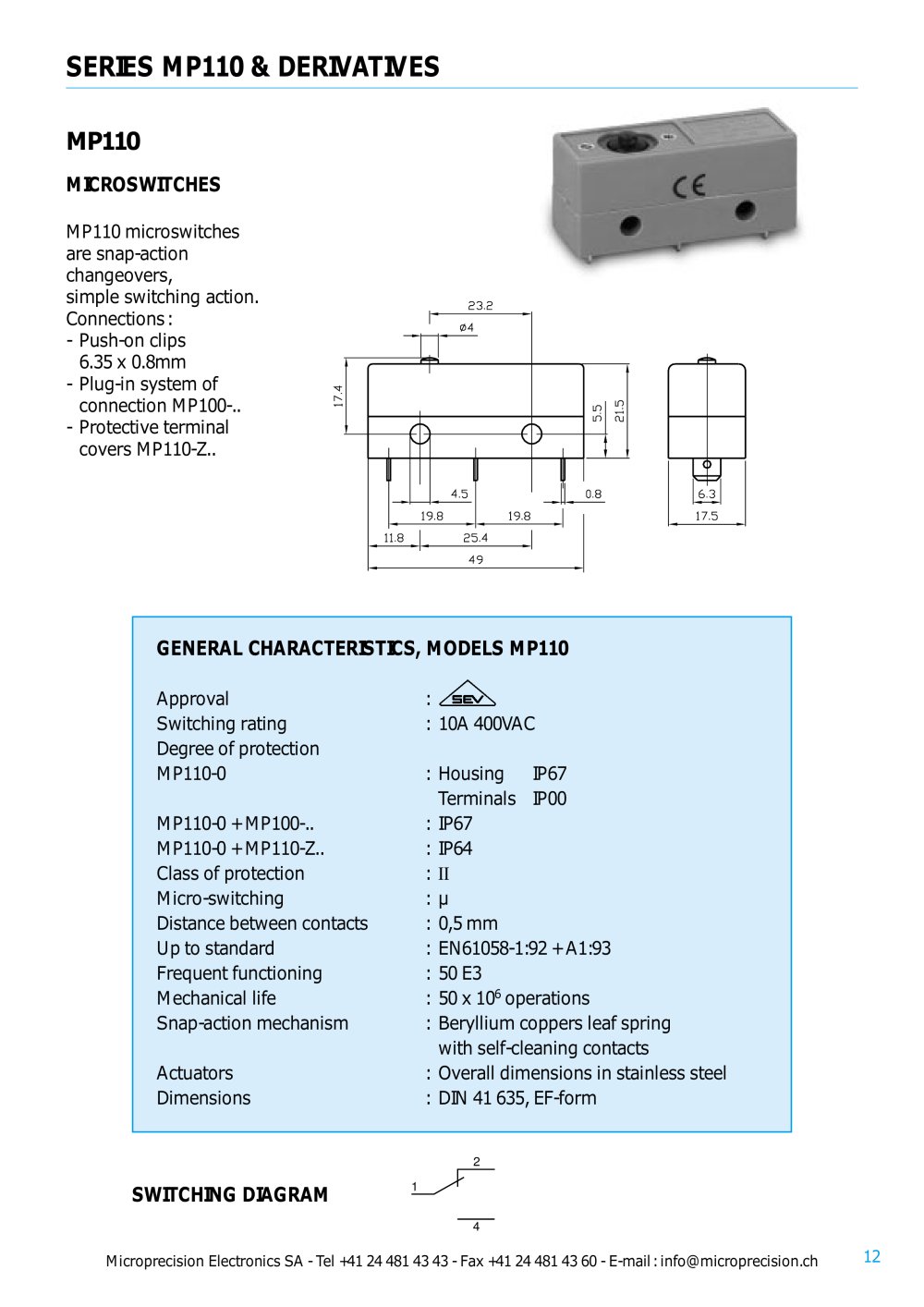

SERIES MP110 & DERIVATIVES

MP110

MICROSWITCHES

MP110 microswitches

are snap-action

changeovers,

simple switching action.

Connections:

- Push-on clips 6.35 x 0.8mm

- Plug-in system of connection MP100-..

- Protective terminal covers MP110-Z..

4.5

0.8

19.8

85.4 49


	GENERAL CHARACTERISTICS, MODELS MP110
	Approval
	Switching rating	: 10A400VAC
	Degree of protection
	MP110-0	: Housing IP67
		Terminals IP00
	MP110-0 + MP100-..	: IP67
	MP110-0 + MP110-Z..	: IP64
	Class of protection	: II
	Micro-switching	: M
	Distance between contacts	: 0,5 mm
	Up to standard	: EN61058-1:92 + A1:93
	Frequent functioning	: 50 E3
	Mechanical life	: 50 x 10⁶ operations
	Snap-action mechanism	: Beryllium coppers leaf spring
		with self-cleaning contacts
	Actuators	: Overall dimensions in stainless steel
	Dimensions	: DIN 41 635, EF-form

SWITCHING DIAGRAM

M icroprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch
