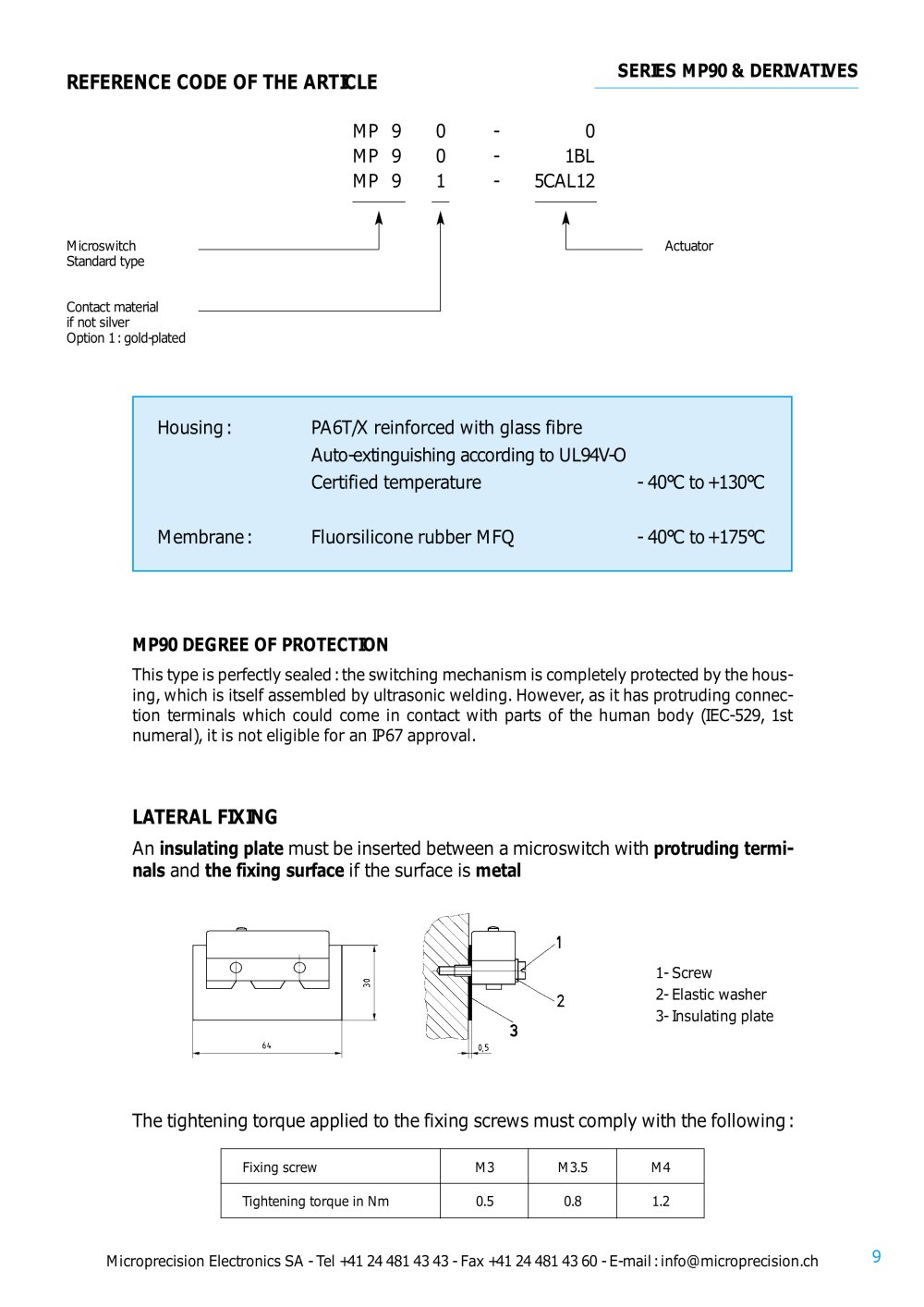

REFERENCE CODE OF THE ARTICLE
SERIES MP90 & DERIVATIVES MP90-0MP90-1BL MP91-5CAL12ActuatorMicroswitchStandard typeContact materialif not silver Option 1: gold-plated Housing:PA6T/X reinforced with glass fibreAuto-extinguishing according to UL94V-O Certified temperature- 40°C to+130°CMembrane:Fluorsilicone rubber MFQ- 40°C to+175°C MP90 DEGREE OF PROTECTION
This type is perfectly sealed: the switching mechanism is completely protected by the hous-ing, which is itself assembled by ultrasonic welding. However, as it has protruding connec- tion terminals which could come in contact with parts of the human body (IEC-529, 1st numeral), it is not eligible for an IP67 approval.
LATERAL FIXING
An insulating plate must be inserted between a microswitch with protruding termi-nals and the fixing surface if the surface is metal1- Screw2- Elastic washer 3- Insulating plate The tightening torque applied to the fixing screws must comply with the following:
Fixing screwM3M3.5M4Tightening torque in Nm0.50.81.2 Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch 9
