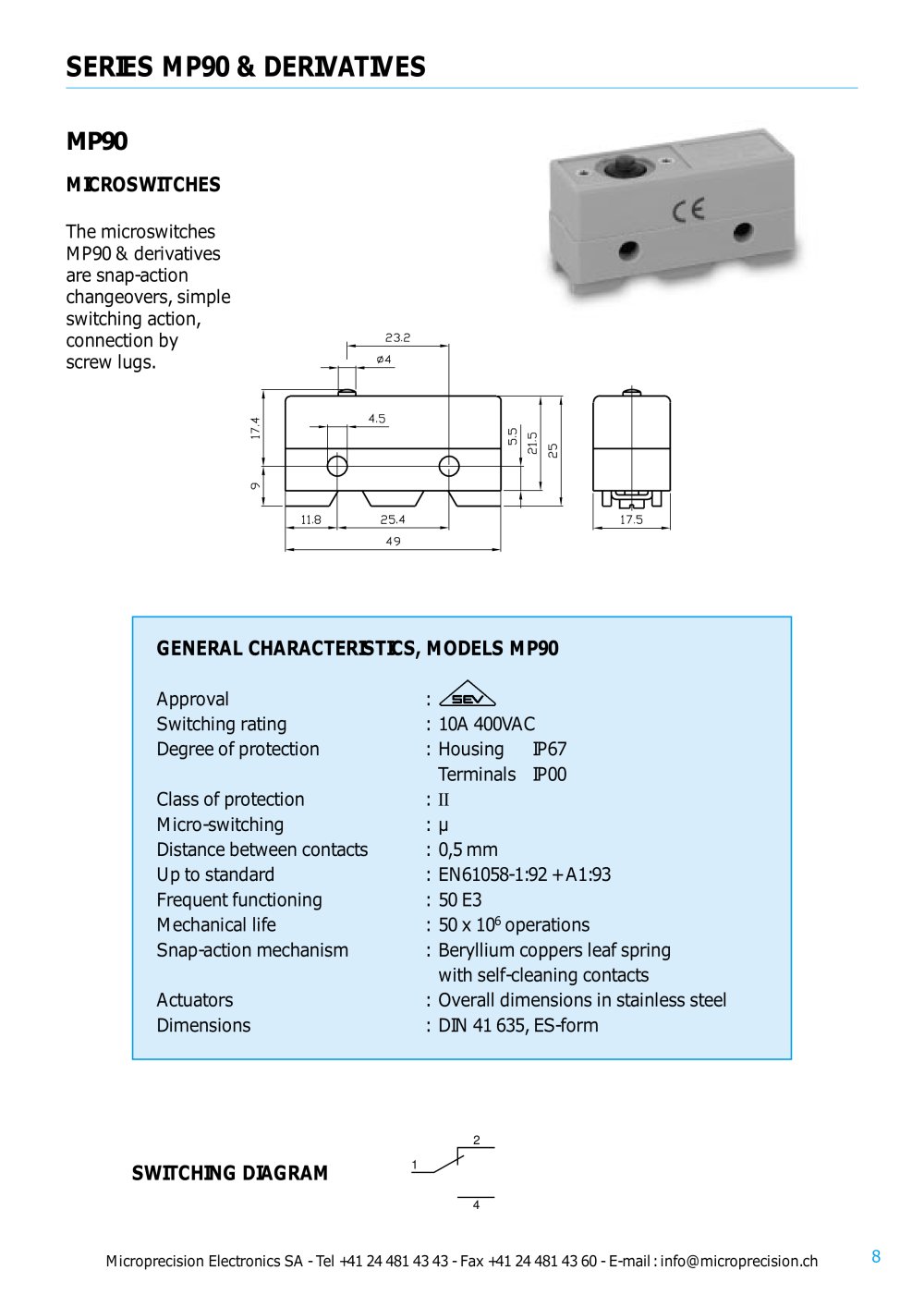

SERIES MP90 & DERIVATIVES
MP90
The microswitchesMP90 & derivatives
are snap-action
changeovers, simple
switching action,
connection by
screw lugs.
GENERAL CHARACTERISTICS, MODELS MP90
Approval:Switching rating : 10A 400VAC
Degree of protection : HousingIP67TerminalsIP00Class of protection: II Micro-switching:µ
Distance between contacts :0,5 mm
Up to standard :EN61058-1:92 + A1:93
Frequent functioning:50 E3
Mechanical life:50 x 10
6 operationsSnap-action mechanism:Beryllium coppers leaf spring with self-cleaning contactsActuators:Overall dimensions in stainless steel
Dimensions :DIN 41 635, ES-form
SWITCHING DIAGRAM
124 Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch 8
