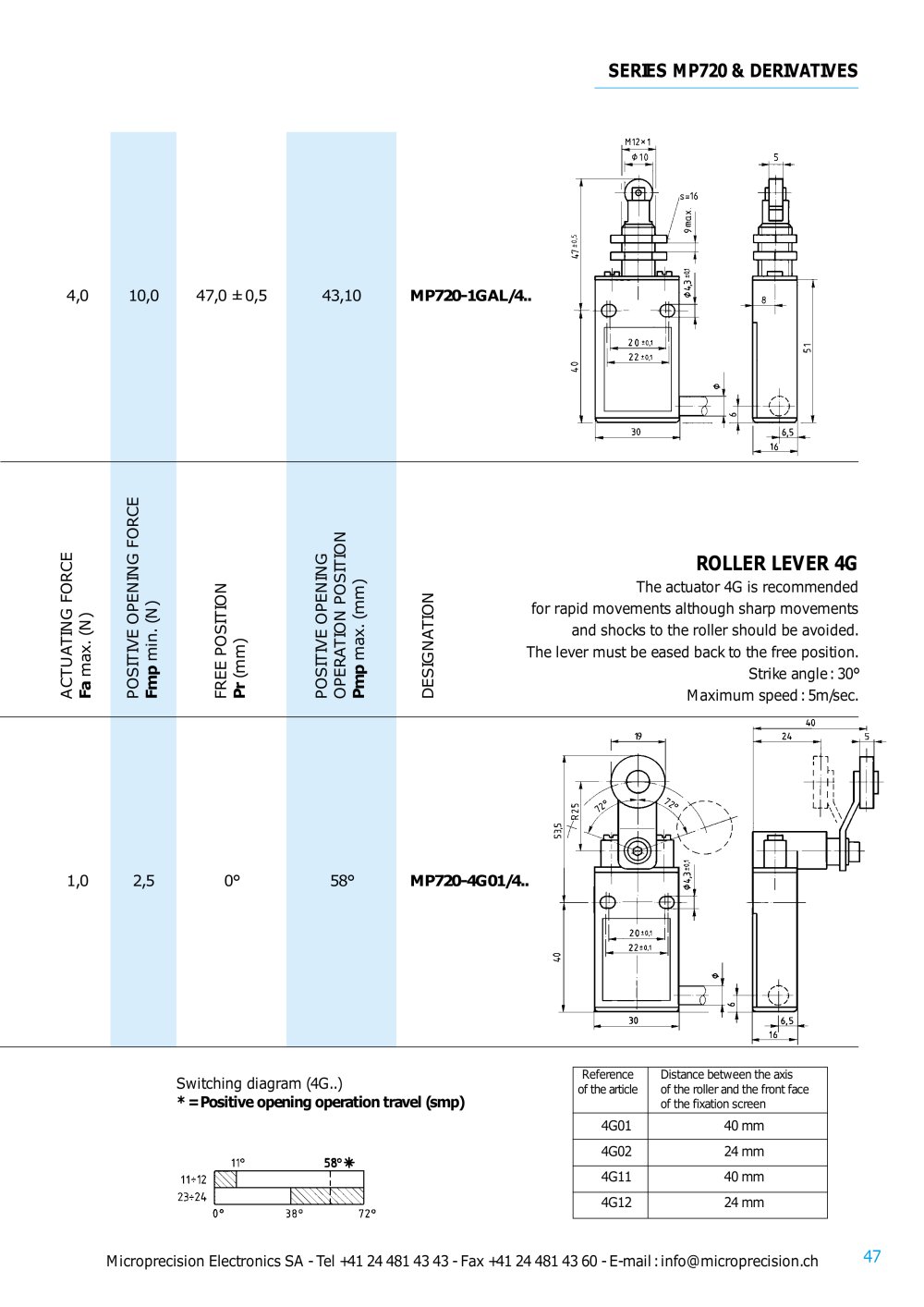

SERIES MP720 & DERIVATIVES ROLLER LEVER 4G

The actuator 4G is recommendedfor rapid movements although sharp movementsand shocks to the roller should be avoided.The lever must be eased back to the free position.Strike angle: 30°Maximum speed: 5m/sec. Switching diagram (4G..)

max. (mm)DESIGNATION min. (N)FREE POSITION max. (N)POSITIVE OPENING FORCE (mm)POSITIVE OPENINGOPERATION POSITION ACTUATING FORCE Fa Fmp Pr Pmp

1,0 4,0 2,50°58° 10,047,0 ±0,543,10 MP720-4G01/4.. MP720-1GAL/4..

ReferenceDistance between the axis of the articleof the roller and the front faceof the fixation screen

* = Positive opening operation travel (smp)

4G0140 mm4G0224 mm4G1140 mm 4G1224 mm

Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch

47
