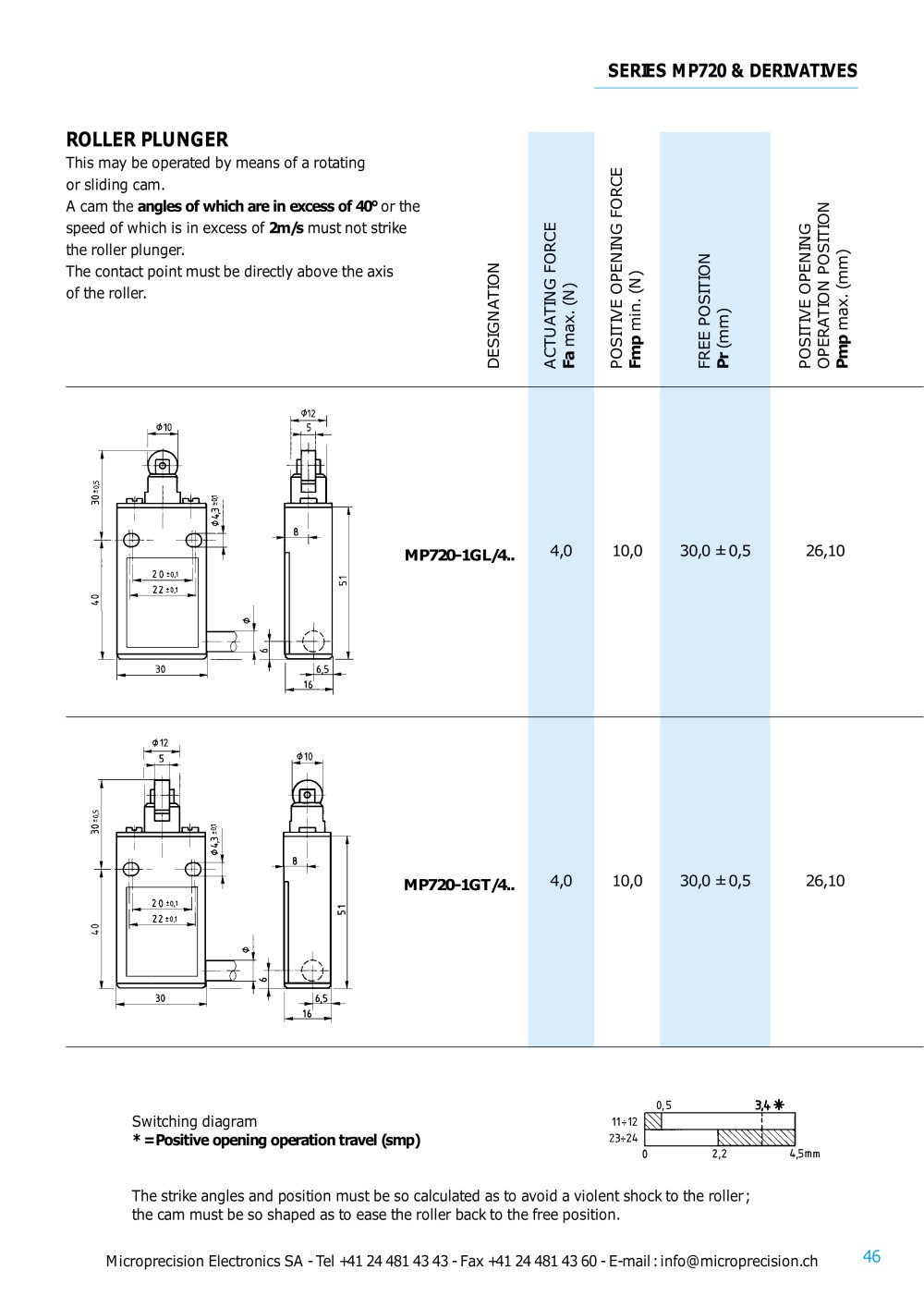

SERIES MP720 & DERIVATIVES

ROLLER PLUNGER

This may be operated by means of a rotatingor sliding cam. A cam the angles of which are in excess of 40° or thespeed of which is in excess of 2m/s must not strikethe roller plunger. The contact point must be directly above the axis of the roller. Switching diagram
max. (mm) min. (N) POSITIVE OPENINGOPERATION POSITION max. (N)FREE POSITION (mm) DESIGNATIONPOSITIVE OPENING FORCE ACTUATING FORCE Fa Fmp Pr Pmp MP720-1GL/4.. MP720-1GT/4.. 4,010,030,0 ±0,526,10 4,010,030,0 ±0,526,10 * = Positive opening operation travel (smp) The strike angles and position must be so calculated as to avoid a violent shock to the roller;the cam must be so shaped as to ease the roller back to the free position. Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch

46
