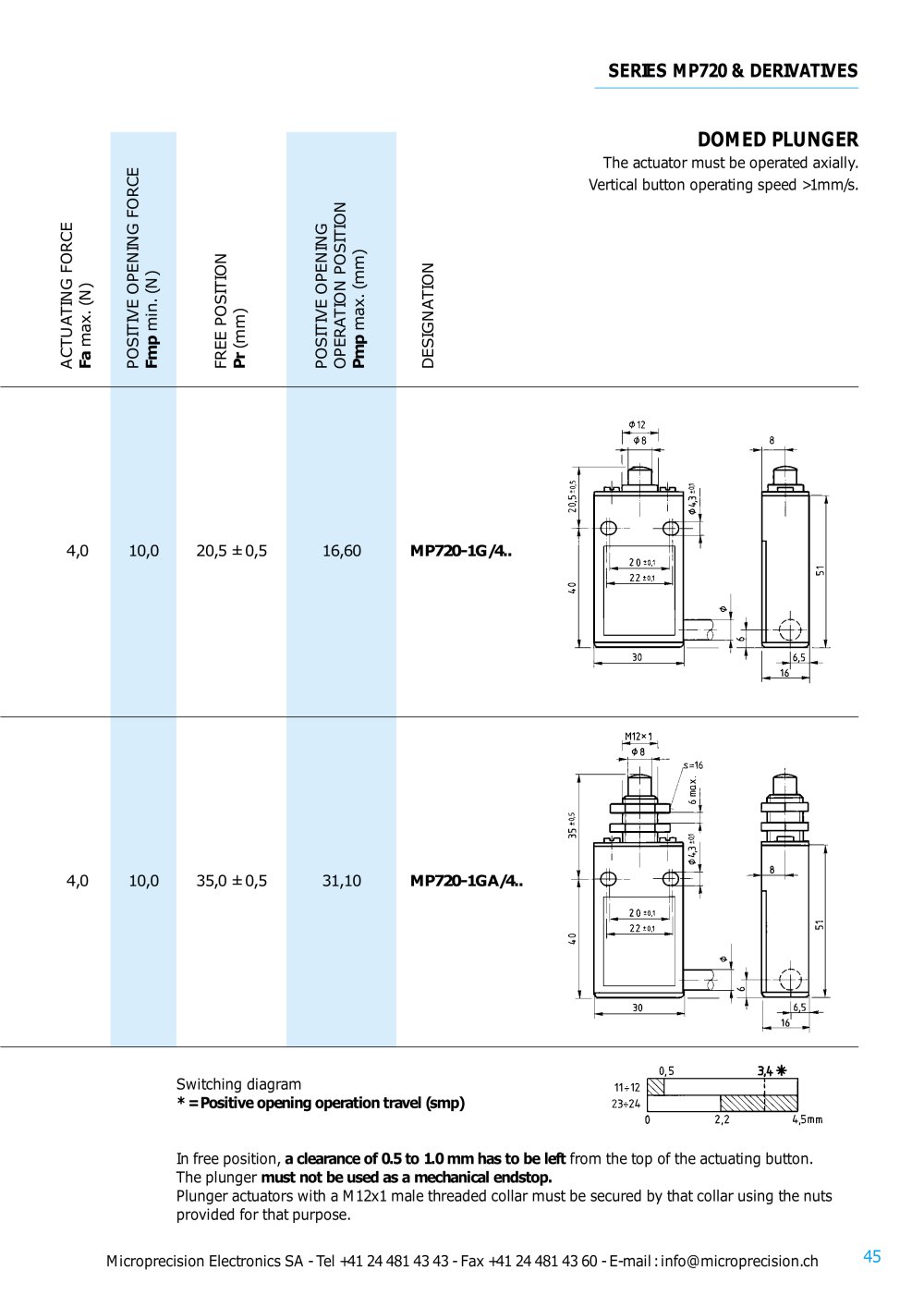

SERIES MP720 & DERIVATIVES
DOMED PLUNGER
The actuator must be operated axially.Vertical button operating speed >1mm/s.
Switching diagram
max. (mm)DESIGNATION min. (N)FREE POSITION max. (N) (mm)POSITIVE OPENINGOPERATION POSITION ACTUATING FORCE Fa POSITIVE OPENING FORCE Fmp Pr Pmp 4,0
4,0 10,035,0 ±0,531,10
10,020,5 ±0,516,60 MP720-1GA/4..
MP720-1G/4.. * = Positive opening operation travel (smp) In free position, a clearance of 0.5 to 1.0 mm has to be left from the top of the actuating button.The plunger must not be used as a mechanical endstop. Plunger actuators with a M12x1 male threaded collar must be secured by that collar using the nuts
