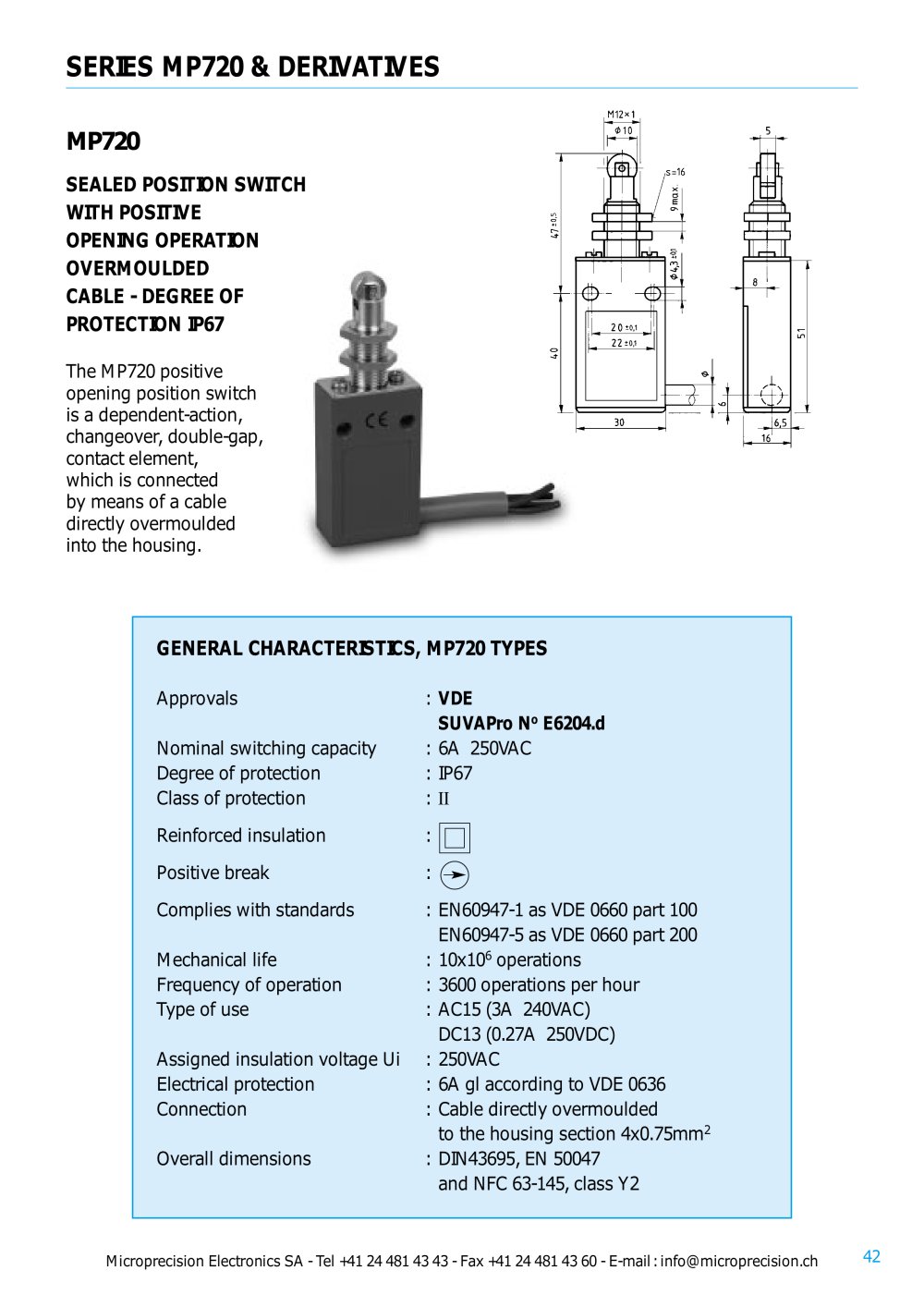

SERIES MP720 & DERIVATIVES

MP720

SEALED POSITION SWITCHWITH POSITIVE OPENING OPERATION OVERMOULDED CABLE - DEGREEOF PROTECTION IP67

The MP720 positiveopening position switch is a dependent-action, changeover, double-gap, contact element, which is connected by means of a cable directly overmoulded into the housing.

GENERAL CHARACTERISTICS, MP720 TYPES

Approvals: VDESUVAPro N II
o Reinforced insulation: Positive break: Complies with standards:EN60947-1 as VDE 0660 part 100EN60947-5 as VDE 0660 part 200Mechanical life:10x10 E6204.d Nominal switching capacity:6A 250VAC Degree of protection:IP67 Class of protection:
6 operationsFrequency of operation:3600 operations per hour Type of use:AC15 (3A 240VAC)DC13 (0.27A 250VDC)Assigned insulation voltage Ui:250VAC Electrical protection:6A gl according to VDE 0636 Connection:Cable directly overmouldedto the housing section 4x0.75mm
2 Overall dimensions:DIN43695, EN 50047and NFC 63-145, class Y2
Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch 42
