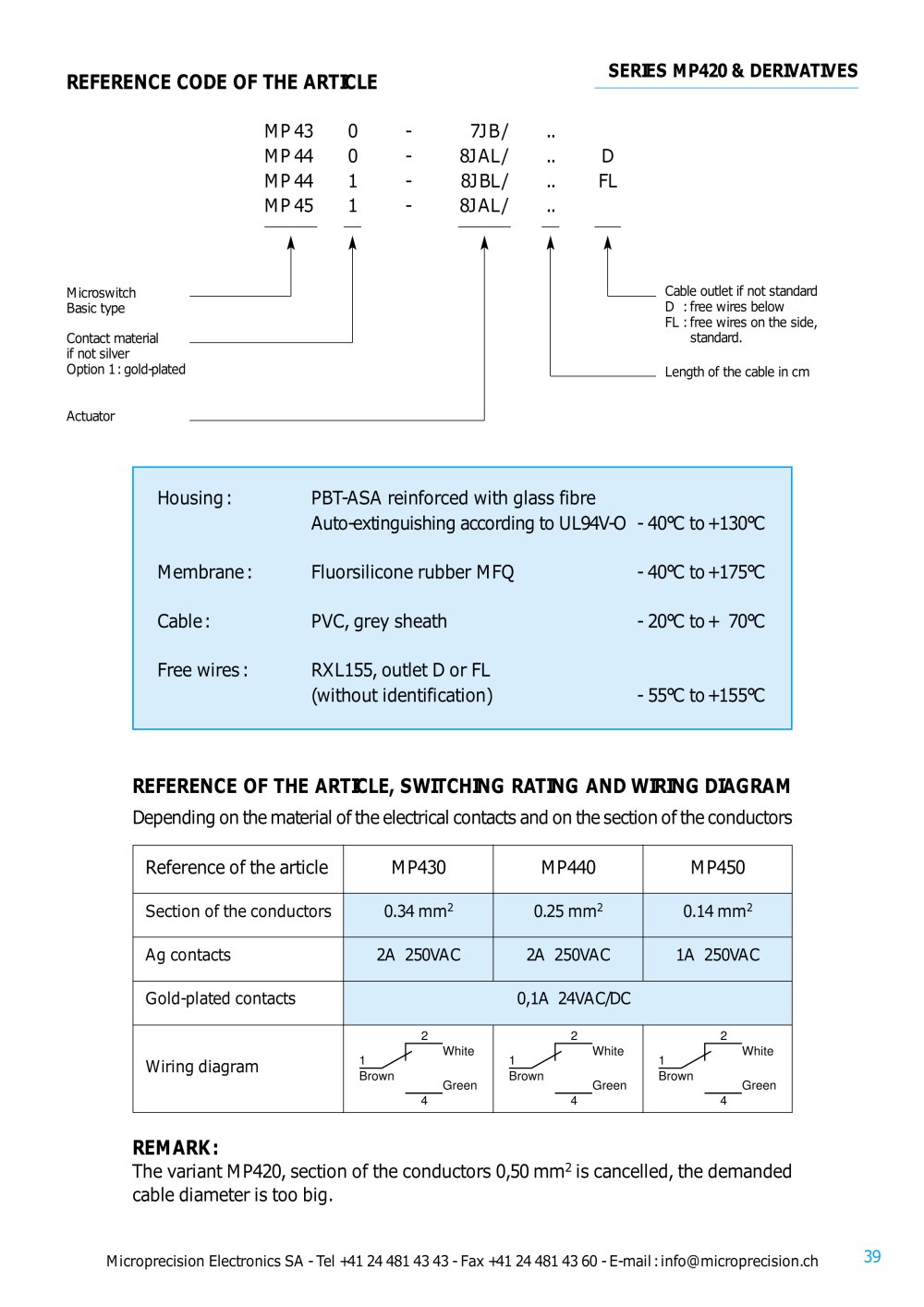

| | | SERIES MP420 & DERIVATIVES | | |
| | | REFERENCE CODE OF THE ARTICLE | | |
| | | |
| | | |
| | | | | | | | | | | | | | MP43 | 0 | - | 7JB/ | | | | | | MP44 | 0 | - | 8JAL/ | | D | | | | MP44 | 1 | - | 8JBL/ | | FL | | | | MP45 | 1 | - | 8JAL/ | | | | | | I | 7 | | | | T | | | | | | | | | | | | | |
| | | |
| | | Cable outlet if not standard D : free wires below FL : free wires on the side, standard. Length of the cable in cm | | |
| | | M icrosw itch Basic type Contact material if not silver Option 1: gold-plated | | |
| | | |
| | | |
| | | Actuator | | |
| | | |
| | | | | | | | | | | Housing : | PBT-ASA reinforced with glass fibre Auto-extinguishing according to UL94V-O | - 40°C to + 130°C | | | | Membrane: | Fluorsilicone rubber MFQ | - 40°C to + 175°C | | | | Cable: | PVC, grey sheath | - 20°C to+ 70°C | | | | Free wires: | RXL155, outlet D or FL (without identification) | - 55°C to + 155C | | | | | | | | | | |
| | | |
| | | REFERENCE OF THE ARTICLE, SWITCHING RATING AND WIRING DIAGRAM Depending on the material of the electrical contacts and on the section of the conductors | | |
| | | |
| | | Reference of the article | | MP430 | | MP440 | | MP450 | | |
| | | |
| | | 0.14 mm2 | | |
| | | 0.34 mm2 | | 0.25 mm2 | | |
| | | Section of the conductors | | |
| | | |
| | | |
| | | |
| | | 1A 250VAC | | |
| | | 2A 250VAC | | 2A 250VAC | | |
| | | Ag contacts | | |
| | | |
| | | |
| | | |
| | | Gold-plated contacts | | 0,1A 24VAC/DC | | |
| | | |
| | | |
| | | 2 | | 2 | | 2 | | |
| | | |
| | | White Green | | White Green | | White Green | | |
| | | Wiring diagram | | |
| | | Brown | | | Brown | | | Brown | | |
| | | |
| | | | | |
| | | |
| | | 4 | | 4 | | 4 | | |
| | | |
| | | REMARK: The variant MP420, section of the conductors 0,50 mm2 is cancelled, the demanded cable diameter is too big. | | |
| | | |
| | | 39 | | |
