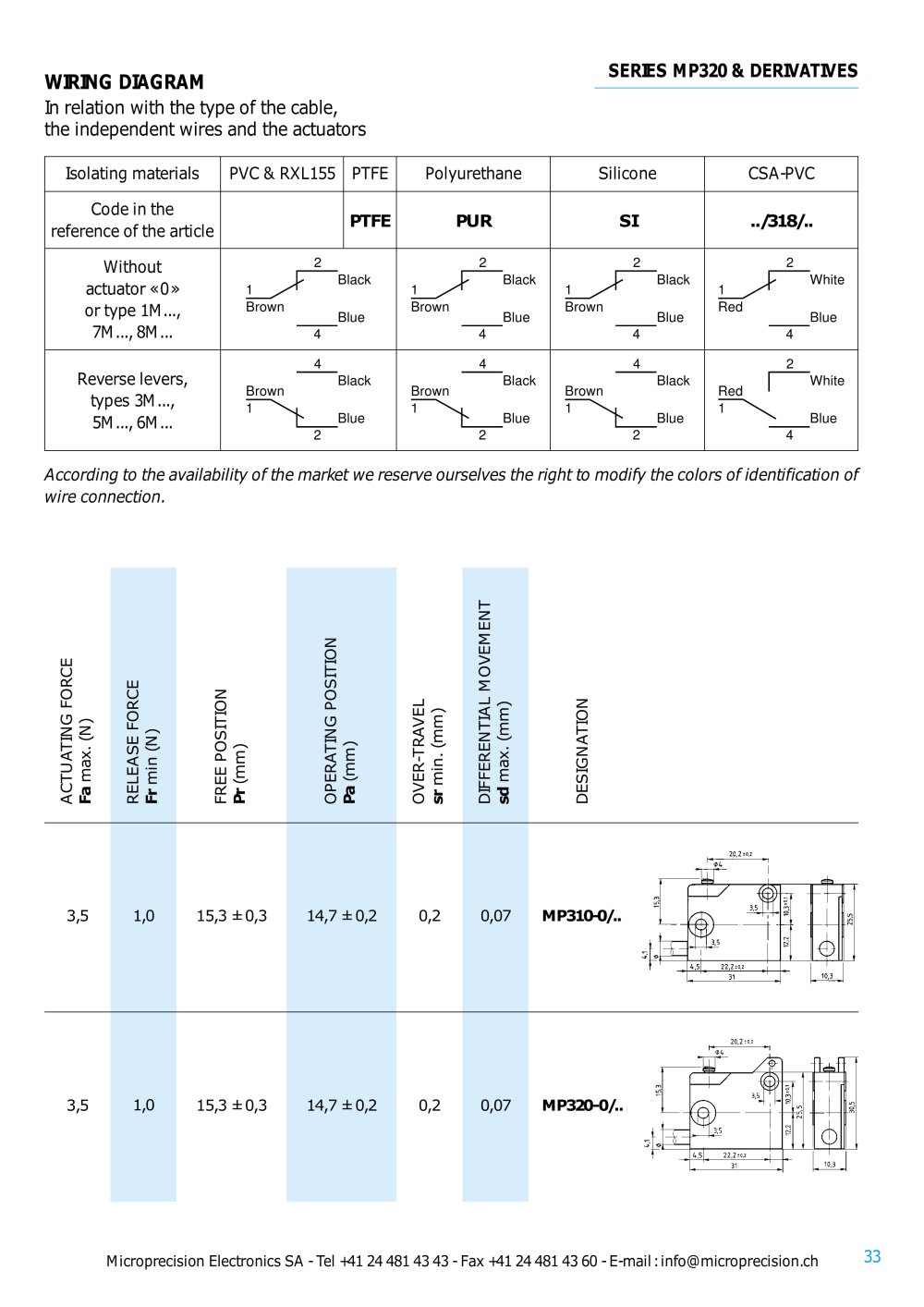

SERIES MP320 & DERIVATIVES
WIRING DIAGRAM
In relation with the type of the cable, the independent wires and the actuators
PVC & RXL155
Silicone
CSA-PVC
Isolating materials
PTFE
Polyurethane
Code in the reference of the article
SI
PTFE
PUR
../318/..
2
2
2
2
Without actuator «0» or type 1M..., 7M..., 8M...
White Blue
Black Blue
Black Blue
Black Blue
1
1
1
1
Red
Brown
Brown
Brown
4
4
4
4
4
4
4
2
Reverse levers, types 3M..., 5M..., 6M...
White Blue
Black Blue
Black Blue
Black Blue
Brown
1
Brown
1
Brown
1
Red 1
2
2
2
4
According to the availability of the market we reserve ourselves the right to modify the colors of identification of wire connection.
z
O
w O Q.
lu o or O
LU
z
o
ä| Si I
_lE lu-B w
w or ^ çl
ot LI. ll Q_ O
_
z
—
Ì
E,
x
CO
E
E,
re
Q.
3,5
1,0
15,3 ± 0,3
14,7 ± 0,2
0,2
0,07 MP310-0/..
1,0
3,5
15,3 ± 0,3
14,7 ± 0,2
0,2
0,07 MP320-0/..
