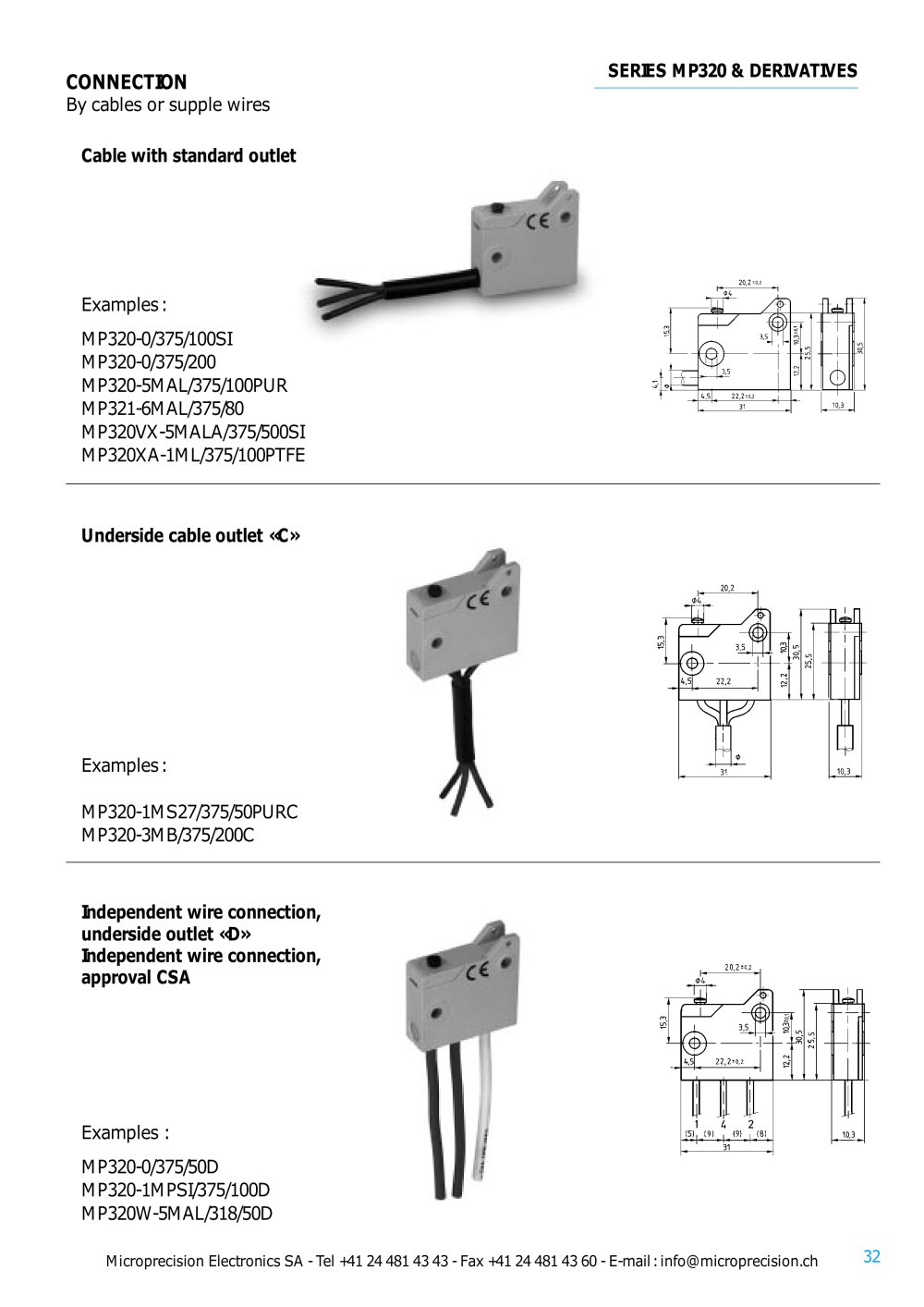

| | | SERIES MP320 & DERIVATIVES | | |
| | | CONNECTION By cables or supple wires | | |
| | | |
| | | |
| | | Cable with standard outlet | | |
| | | |
| | | Examples: MP320-0/375/100SI MP320-0/375/200 MP320-5MAL/375/100PUR MP321-6MAL/375/80 M P320VX-5MALA/375/500SI M P320XA-1M L/375/100PTFE | | |
| | | |
| | | Underside cable outlet «C» | | |
| | | |
| | | Exam ples: M P320-1M S27/375/50PU RC MP320-3MB/375/200C | | |
| | | |
| | | Independent wire connection, underside outlet «D» Independent wire connection, approval CSA | | |
| | | |
| | | Exam ples : MP320-0/375/50D MP320-1MPSI/375/100D MP320W-5MAL/318/50D | | |
| | | |
| | | 32 | | |
