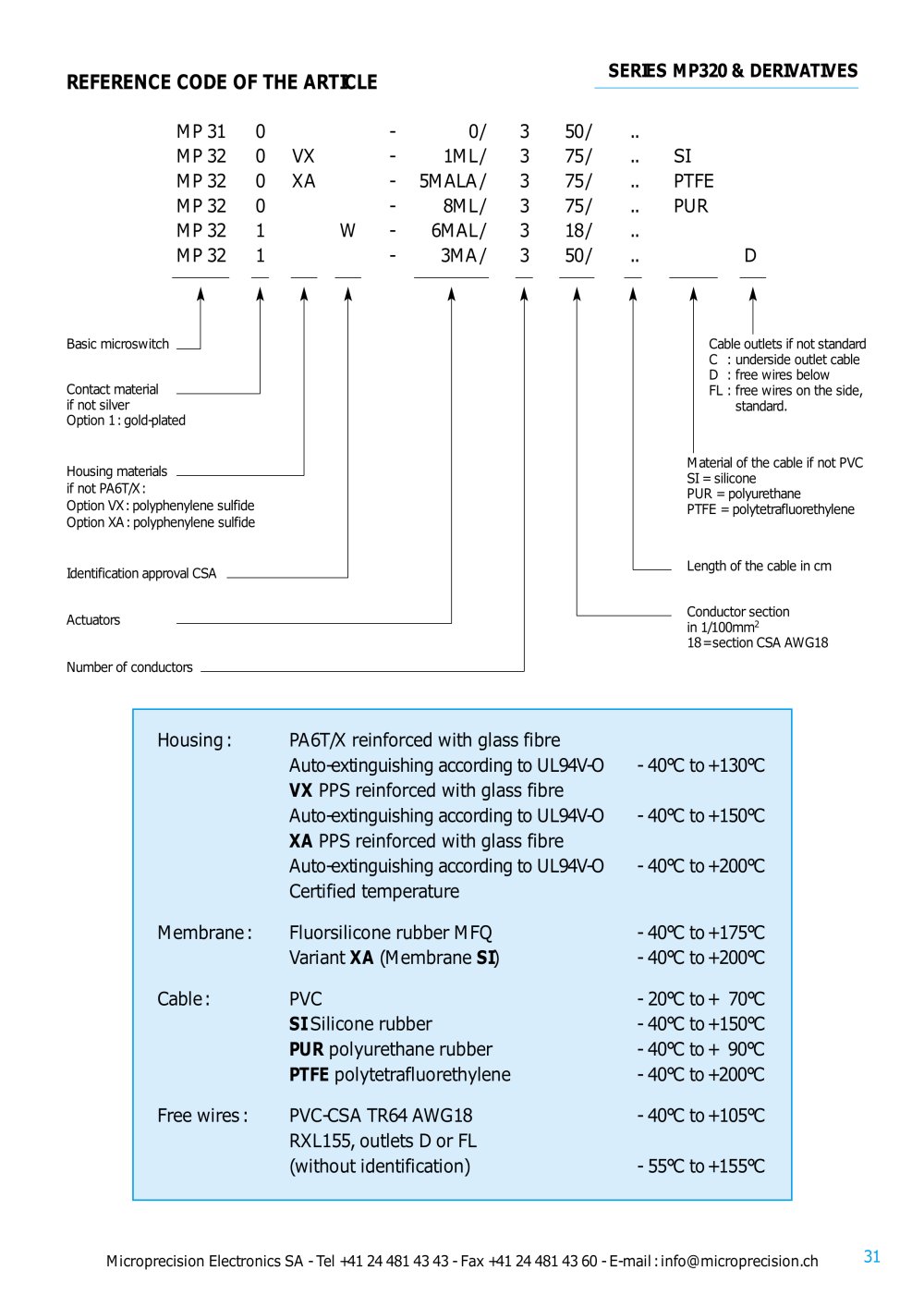

| | | SERIES MP320 & DERIVATIVES | | |
| | | REFERENCE CODE OF THE ARTICLE | | |
| | | |
| | | |
| | | | | | | | | | | | | | | MP31 | 0 | | - 0/ | 3 | 50/ | | | | | MP 32 | 0 | VX | - 1ML/ | 3 | 75/ | . SI | | | | MP 32 | 0 | XA | - 5MALA/ | 3 | 75/ | . PTFE | | | | MP 32 | 0 | | - 8ML/ | 3 | 75/ | . PUR | | | | MP 32 | 1 | W | - 6MAL/ | 3 | 18/ | | | | | MP32 | 1 | | - 3MA/ | 3 | 50/ | | | | | | | | | | | | | | | |
| | | D A | | |
| | | |
| | | |
| | | | | Cable outlets if not standard C : underside outlet cable D : free wires below FL : free wires on the side, standard. | | |
| | | |
| | | Contact material _ if not silver Option 1: gold-plated | | |
| | | |
| | | |
| | | Material of the cable if not PVC SI = silicone PUR = polyurethane PTFE = polytetrafluorethylene | | |
| | | Housing materials _ if not PA6T/X: Option VX: polyphenylene sulfide Option XA: polyphenylene sulfide | | |
| | | |
| | | |
| | | Length of the cable in cm | | |
| | | Identification approval CSA | | |
| | | |
| | | |
| | | Conductor section in 1/100mm2 18= section CSA AWG18 | | |
| | | Actuators | | |
| | | |
| | | |
| | | Number of conductors | | |
| | | |
| | | | | | | | | | | Housing : | PA6T/X reinforced with glass fibre Auto-extinguishing according to UL94V-O VX PPS reinforced with glass fibre Auto-extinguishing according to UL94V-O XA PPS reinforced with glass fibre Auto-extinguishing according to UL94V-O Certified temperature | - 40°C to + 130°C - 40°C to+150°C - 40°C to+200°C | | | | Membrane: | Fluorsilicone rubber MFQ Variant XA (Membrane SI) | - 40°C to+175°C - 40°C to+200°C | | | | Cable: | PVC SI Silicone rubber PUR polyurethane rubber PTFE polytetrafluorethylene | - 20°C to+ 70°C - 40°C to+150°C - 40°C to+ 90C - 40°C to+200°C | | | | Free wires: | PVC-CSA TR64 AWG18 RXL155, outlets D or FL (without identification) | - 40°C to+105°C - 55°C to+155°C | | | | | | | | | | |
| | | |
