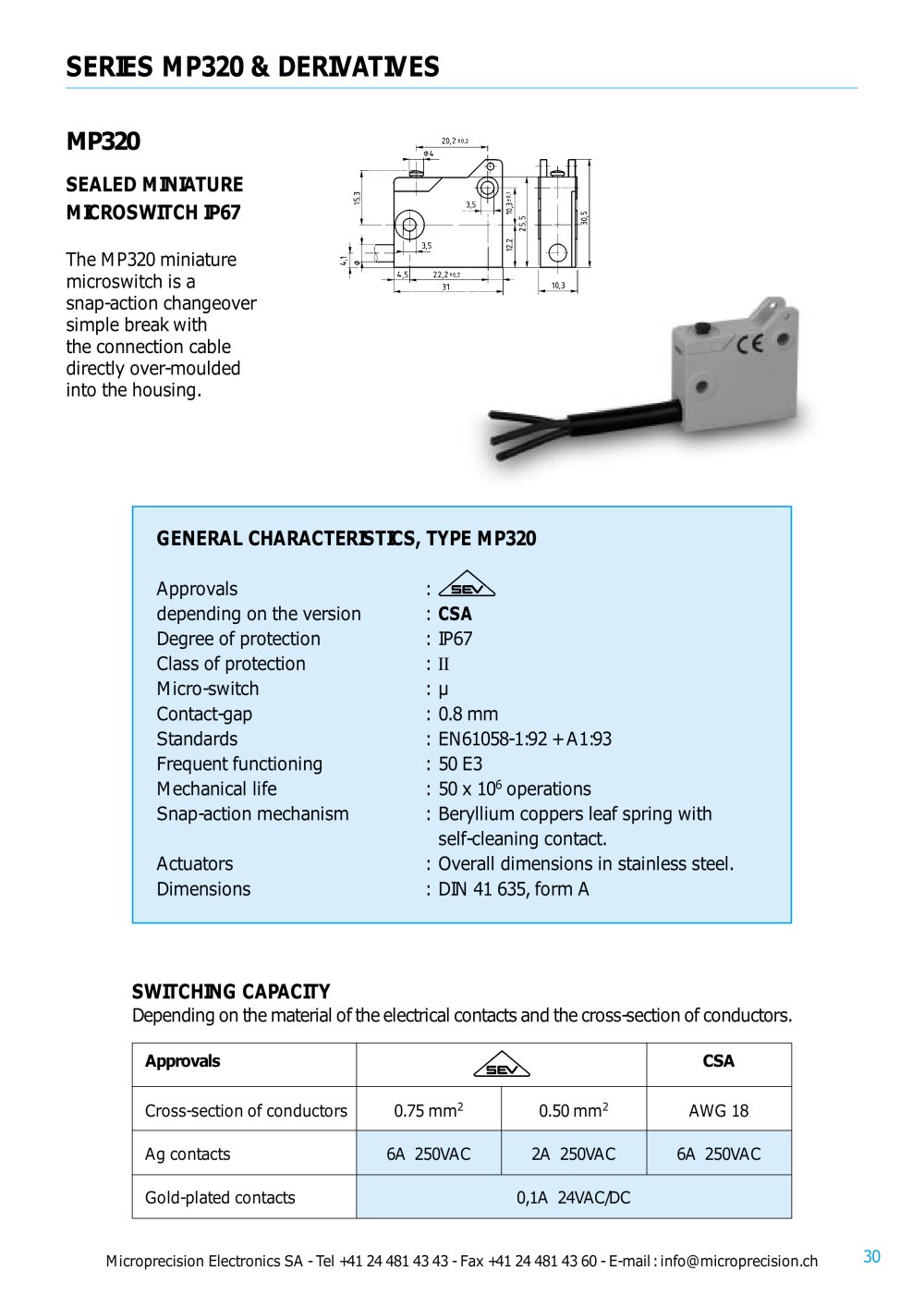

SERIES MP320 & DERIVATIVES
MP320
SEALED MINIATUREMICROSWITCH IP67
The MP320 miniaturemicroswitch is a
snap-action changeover
simple break with
the connection cable
directly over-moulded
into the housing.
GENERAL CHARACTERISTICS, TYPE MP320
Approvals:depending on the version: CSA II Degree of protection:IP67
Class of protection: Micro-switch:µ
Contact-gap:0.8 mm
Standards:EN61058-1:92 + A1:93
Frequent functioning:50 E3
Mechanical life:50 x 10
6 operationsSnap-action mechanism:Beryllium coppers leaf spring withself-cleaning contact.Actuators:Overall dimensions in stainless steel.
Dimensions:DIN 41 635, form A
SWITCHING CAPACITY
Depending on the material of the electrical contacts and the cross-section of conductors.
ApprovalsCSA Cross-section of conductors0.75 mm 2 0.50 mm 2 AWG 18Ag contacts 6A 250VAC2A 250VAC6A 250VAC
Gold-plated contacts0,1A 24VAC/DC Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch 30
