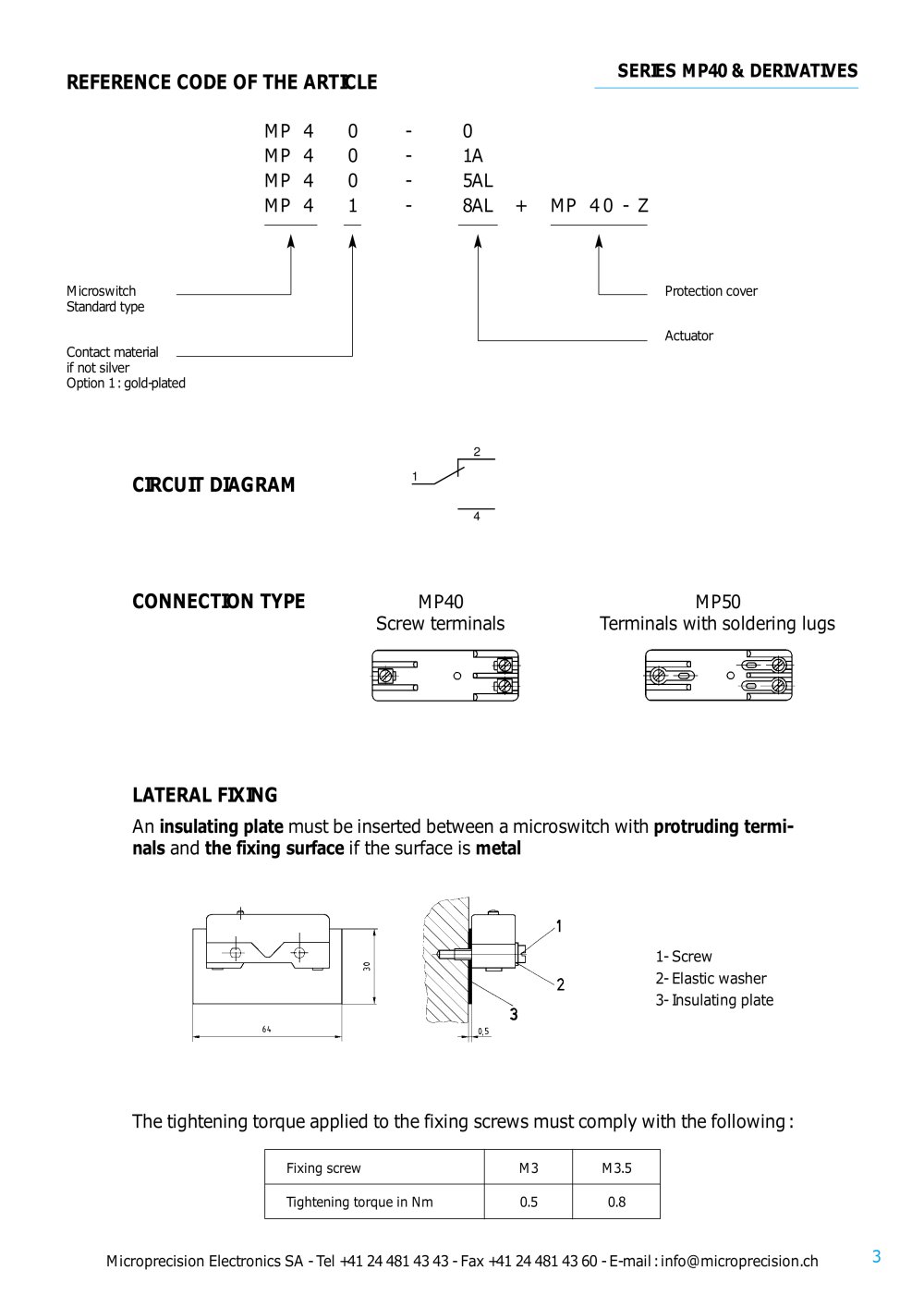

SERIES MP40 & DERIVATIVES
REFERENCE CODE OF THE ARTICLE
MP 4
MP 4
MP 4
MP 4
5AL SAL
Protection Actuator
Standard type Coniaci material
CIRCUIT DIAGRAM
CONNECTION TYPE
MP40 Screw termin
MP50
Terminals with soldering lugs
LATERAL FIXING
An insulating plate must be inserted between a microswitch with protruding termi­nals and the fixing surface if the surface is metal
1 - Screw
2- Elastic washer
3- Insulating plate
The tightening torque applied to the fixing screws must comply with the following:
Fixing screw
M3
M 3.5
Tightening torque in Mm
0.5
0.8
Microprecisi on Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 461 43 60 - E-mail : i n!o@m i oro precision, eh 3
