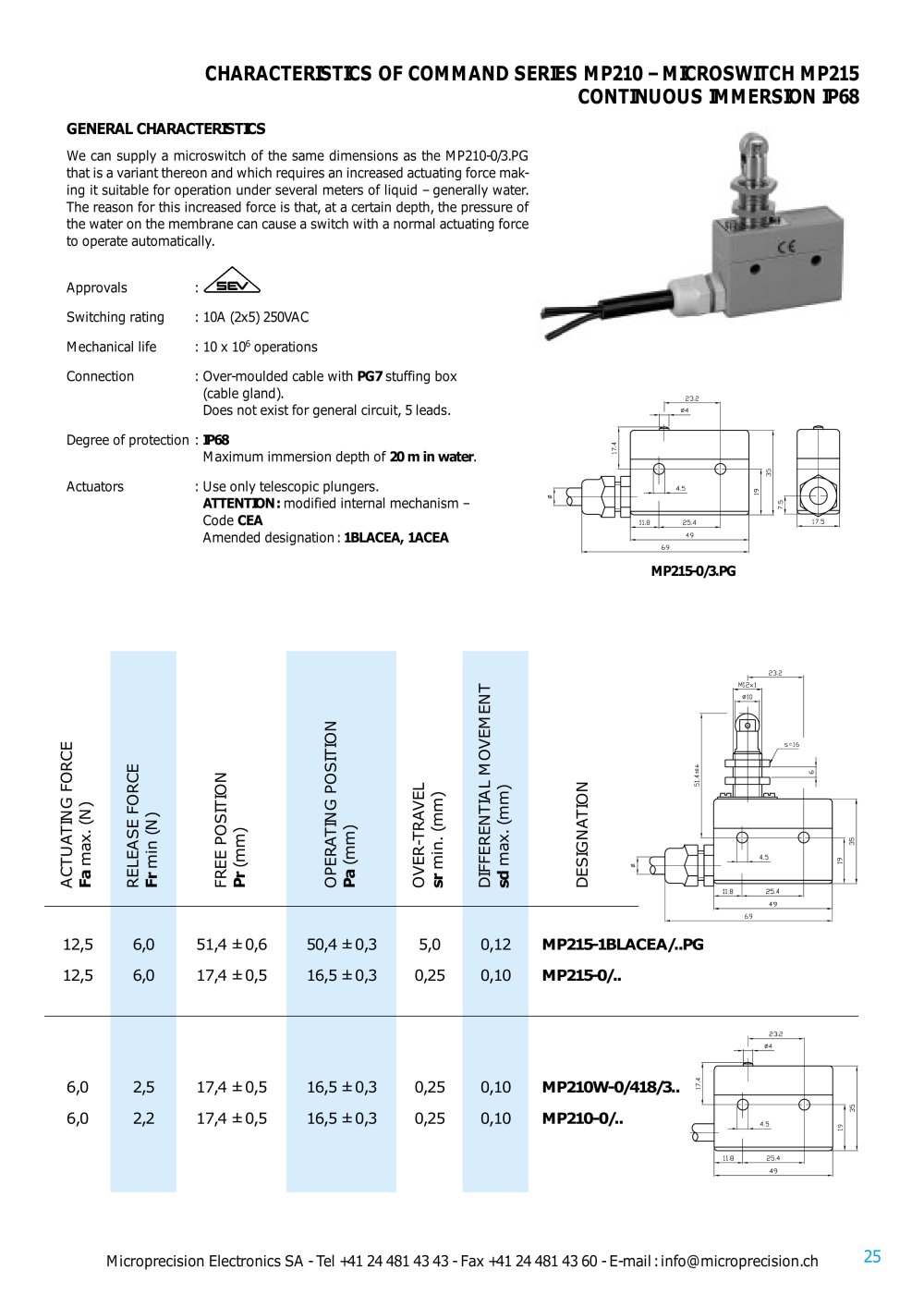

| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | CHARACTERISTICS OF COMMAND SERIES MP210 - MICROSWITCH MP215 CONTINUOUS IMMERSION IP68 | | | | | | | | | | GEN ERAL CHARACTERISTICS We can supply a microswitch of the same dimensions as the MP210-0/3.PG that is a variant thereon and which requires an increased actuating force making it suitable for operation under several meters of liquid - generally water. The reason for this increased force is that, at a certain depth, the pressure of the water on the membrane can cause a switch with a normal actuating force to operate automatically. | | | | | | | | | | Approvals Switching rating Mechanical life Connection | | | | | | : 10A (2x5) 250VAC : 10 x 106 operations : Over-moulded cable with PG7 stuffing box (cable gland). Does not exist for general circuit, 5 leads. | | | | | | | | | | | | | | Degree of protection : IP68 Maximum immersion depth of 20 m in water. | | | | | | | | | | Actuators | | : Use only telescopic plungers. ATTENTION: modified internal mechanism Code CEA Amended designation: 1BLACEA, 1ACEA | | | | | | | | | | | | | | MP215-0/3.PG | | | | | | | | | | LU o or o u_ | | | | | | lu | | | | | | | | | z o luz S3 lu-- lup _iE luS lèi «- ^ ir Ol li. ll Q. | | | | | | | | | | _ z — | | | | | | | | | | | | | 12,5 6,0 51,4 ± 0,6 50,4 ± 0,3 5,0 0,12 MP215-1BLACEA/..PG 12,5 6,0 17,4 ±0,5 16,5 ± 0,3 0,25 0,10 MP215-0/.. | | | | | | | | | | 6,0 2,5 17,4 ±0,5 16,5 ± 0,3 0,25 0,10 MP210W-0/418/3.. 6,0 2,2 17,4 ±0,5 16,5 ±0,3 0,25 0,10 MP210-0/.. | | | | | | | | | | Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail : info@microprecision.ch | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
|
