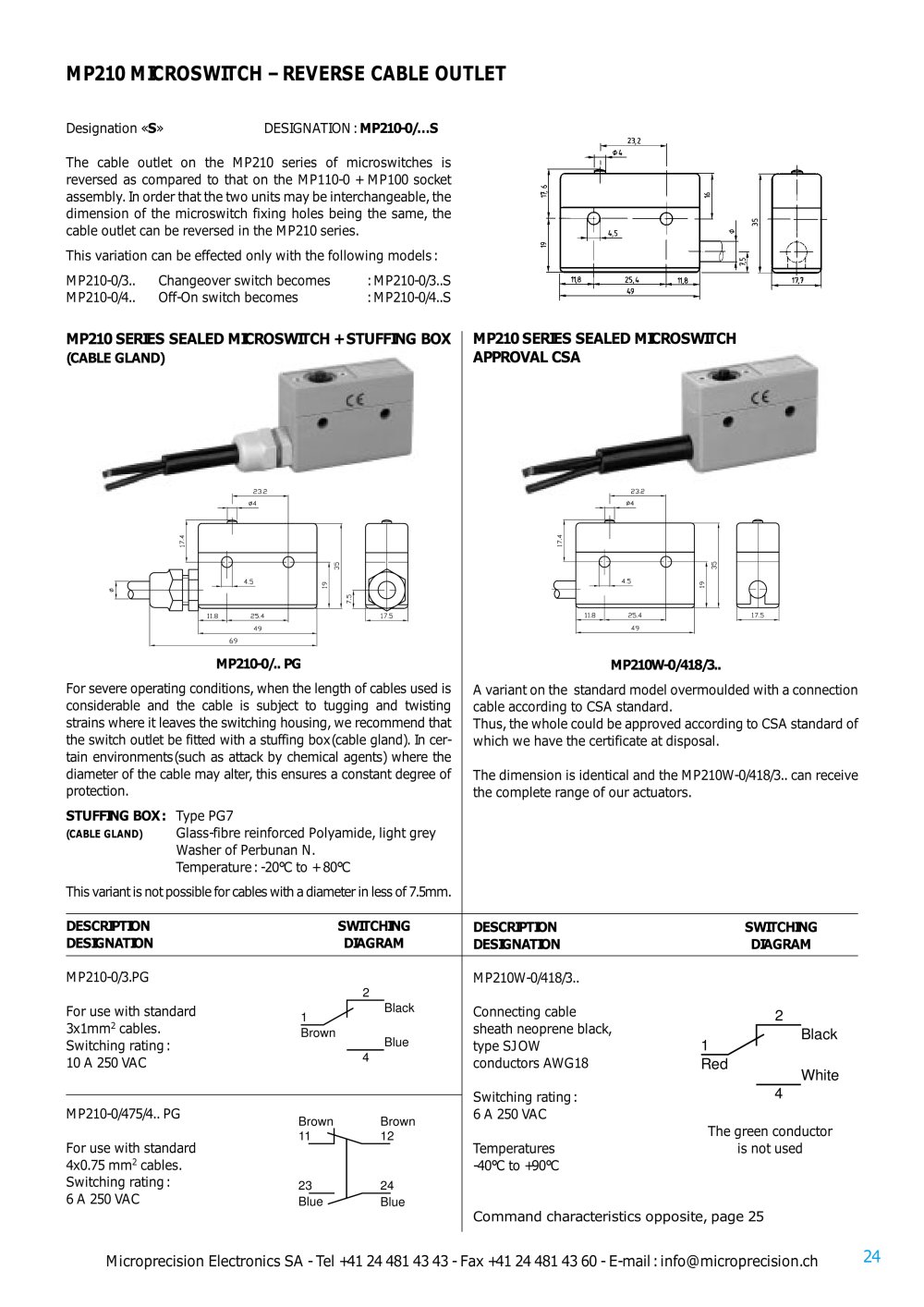

| | | MP210 MICROSWITCH - REVERSE CABLE OUTLET | | |
| | | |
| | | Designation «S» | | DESIGNATION: MP210-0/...S | | |
| | | |
| | | |
| | | The cable outlet on the MP210 series of microswitches is reversed as compared to that on the MP110-0 + MP100 socket assembly. In order that the two units may be interchangeable, the dimension of the microswitch fixing holes being the same, the cable outlet can be reversed in the MP210 series. This variation can be effected only with the following models: MP210-0/3.. Changeover switch becomes : MP210-0/3..S MP210-0/4.. Off-On switch becomes : MP210-0/4..S | | |
| | | |
| | | MP210 SERIES SEALED MICROSWITCH APPROVAL CSA | | |
| | | MP210 SERIES SEALED MICROSWITCH + STUFFING BOX (CABLE GLAND) | | |
| | | |
| | | |
| | | | | |
| | | |
| | | MP210-0/.. PG For severe operating conditions, when the length of cables used is considerable and the cable is subject to tugging and twisting strains where it leaves the switching housing, we recommend that the switch outlet be fitted with a stuffing box(cable gland). In certain environments(such as attack by chemical agents) where the diameter of the cable may alter, this ensures a constant degree of protection. STUFFING BOX: Type PG7 (cable gland) Glass-fibre reinforced Polyamide, light grey Washer of Perbunan N. Tem perature: -20°C to + 80°C This variant is not possible for cables with a diameter in less of 7.5m m. | | |
| | | MP210W-0/418/3.. A variant on the standard model overmoulded with a connection cable according to CSA standard. Thus, the whole could be approved according to CSA standard of which we have the certificate at disposal. The dimension is identical and the MP210W-0/418/3.. can receive the complete range of our actuators. | | |
| | | |
| | | |
| | | DESCRIPTION DESIGNATION | | SWITCHING DIAGRAM | | |
| | | DESCRIPTION DESIGNATION | | SWITCHING DIAGRAM | | |
| | | |
| | | |
| | | M P210W-0/418/3.. conductors AWG18 Switching rating: 6 A 250 VAC Tem peratures -40°C to +90°C | | |
| | | M P210-0/3.PG For use with standard 3x1m m 2 cables. Switching rating: 10 A 250 VAC | | |
| | | 2 | | |
| | | |
| | | Black Blue | | |
| | | 2 | | |
| | | |
| | | Brown | | |
| | | Black White | | |
| | | |
| | | 1_ Red | | |
| | | |
| | | 4 | | |
| | | |
| | | |
| | | |
| | | |
| | | 4 | | |
| | | |
| | | M P210-0/475/4.. PG For use with standard 4x0.75 m m 2 cables. Switching rating: 6 A 250 VAC | | |
| | | Brown 11 | | Brown 12 | | |
| | | The green conductor is not used | | |
| | | |
| | | |
| | | |
| | | 24 | | |
| | | 23_ Blue • | | |
| | | |
| | | Blue | | |
| | | |
| | | |
| | | Command characteristics opposite, page 25 | | |
| | | |
| | | 24 | | |
