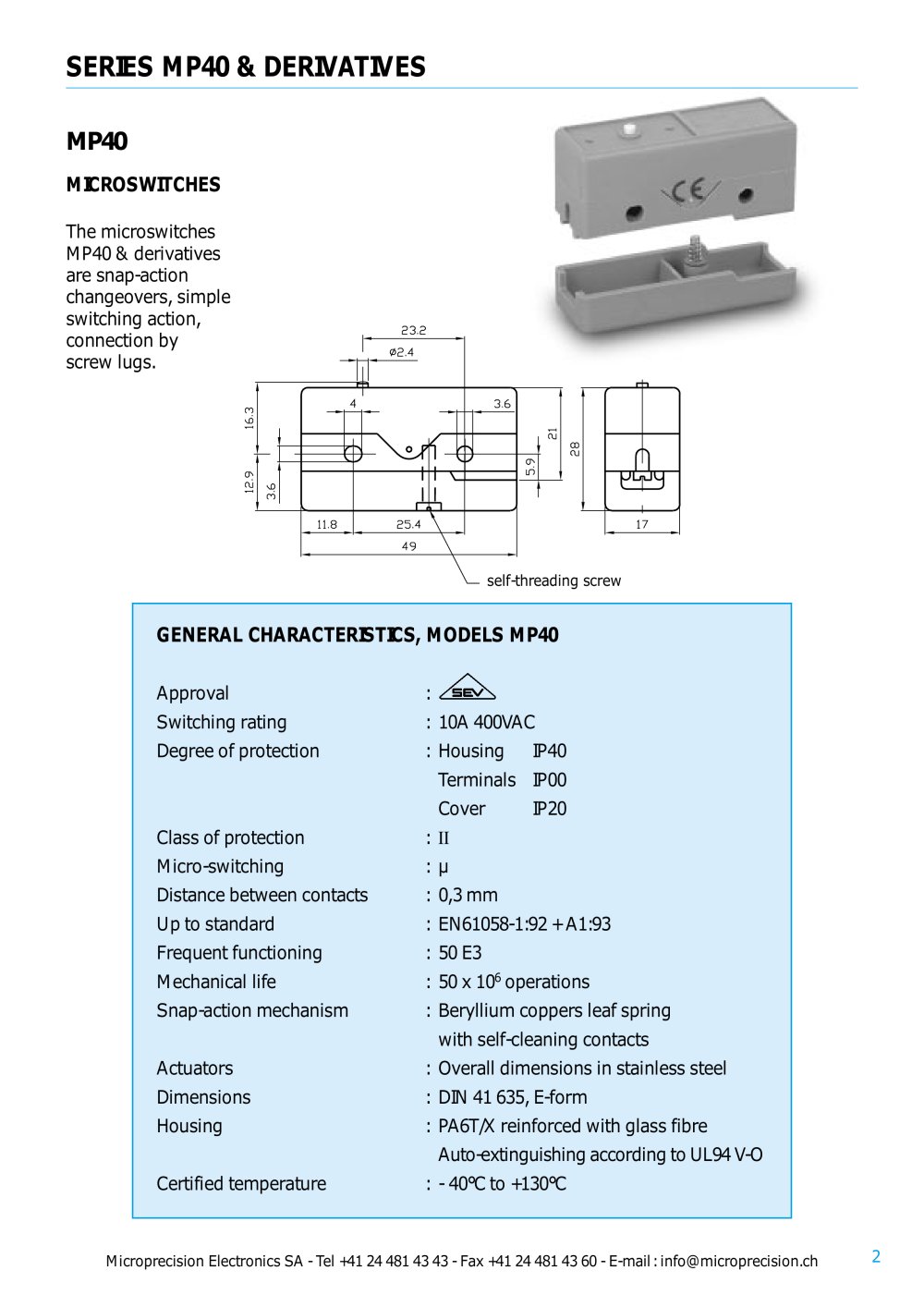

SERIES MP40 & DERIVATIVES
MP40
The microswitches MP40 & derivatives are snap-action changeovers, simple switching action, connection by screw lugs.
self-threading screw
GENERAL CHARACTERISTICS, MODELS MP40
Approval
Switching rating
: 10A 400VAC
Degree of protection
: Housing IP40
Terminals IP00
Cover IP20
Class of protection
: II
Micro-switching
: M
Distance between contacts
: 0,3 mm
Up to standard
: EN61058-1:92 + A1:93
Frequent functioning
: 50 E3
Mechanical life
: 50 x 106 operations
Snap-action mechanism
: Beryllium coppers leaf spring
with self-cleaning contacts
Actuators
: Overall dimensions in stainless steel
Dimensions
: DIN 41 635, E-form
Housing
: PA6T/X reinforced with glass fibre
Auto-extinguishing according to UL94 V-O
Certified temperature
: - 40°C to +130°C
2
