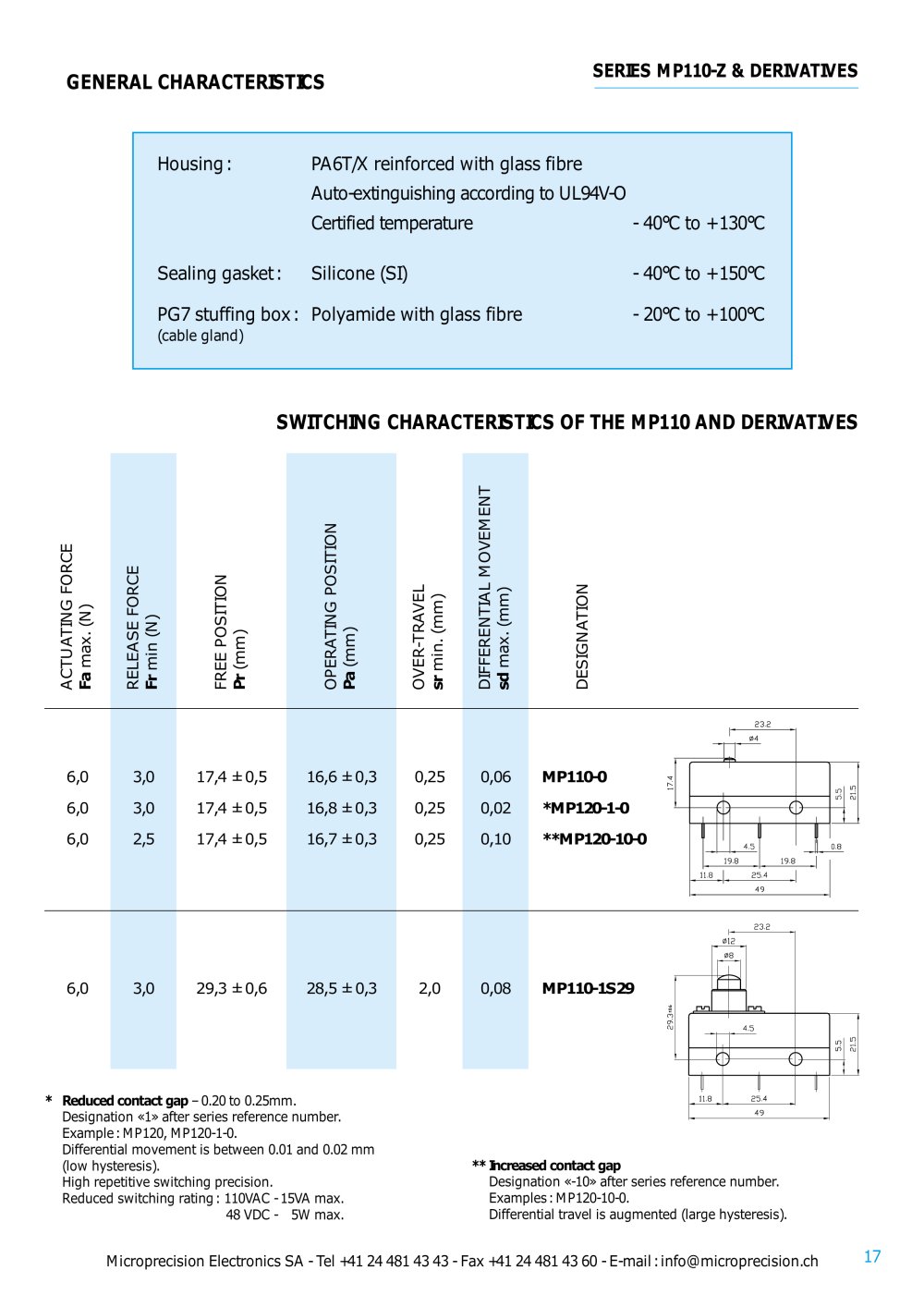

GENERAL CHARACTERISTICS SERIES MP110-Z & DERIVATIVES Housing:PA6T/X reinforced with glass fibreAuto-extinguishing according to UL94V-O
Certified temperature- 40°C to +130°CSealing gasket:Silicone (SI)- 40°C to +150°CPG7 stuffing box:Polyamide with glass fibre- 20°C to +100°C SWITCHING CHARACTERISTICS OF THE MP110 AND DERIVATIVES (mm)OVER-TRAVEL max. (N)RELEASE FORCE max. (mm)DESIGNATION (mm)OPERATING POSITION min (N)FREE POSITION min. (mm)DIFFERENTIAL MOVEMENT ACTUATING FORCE Fa Fr Pr Pa sr sd MP110-1S29
MP110-0*MP120-1-0
**MP120-10-0 6,0
6,06,0
6,0 3,029,3 ±0,628,5 ±0,32,00,08
3,03,0
2,517,4 ±0,517,4 ±0,5
17,4 ±0,516,6 ±0,316,8 ±0,3
16,7 ±0,30,250,25
0,250,060,02
0,10 *Reduced contact gap – 0.20 to 0.25mm.Designation «1» after series reference number.Example: MP120, MP120-1-0.Differential movement is between 0.01 and 0.02 mm
(low hysteresis).High repetitive switching precision.Reduced switching rating:110VAC -15VA max.48 VDC -5W max. **Increased contact gap Designation «-10» after series reference number.Examples: MP120-10-0.
Differential travel is augmented (large hysteresis). Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch 17
|
