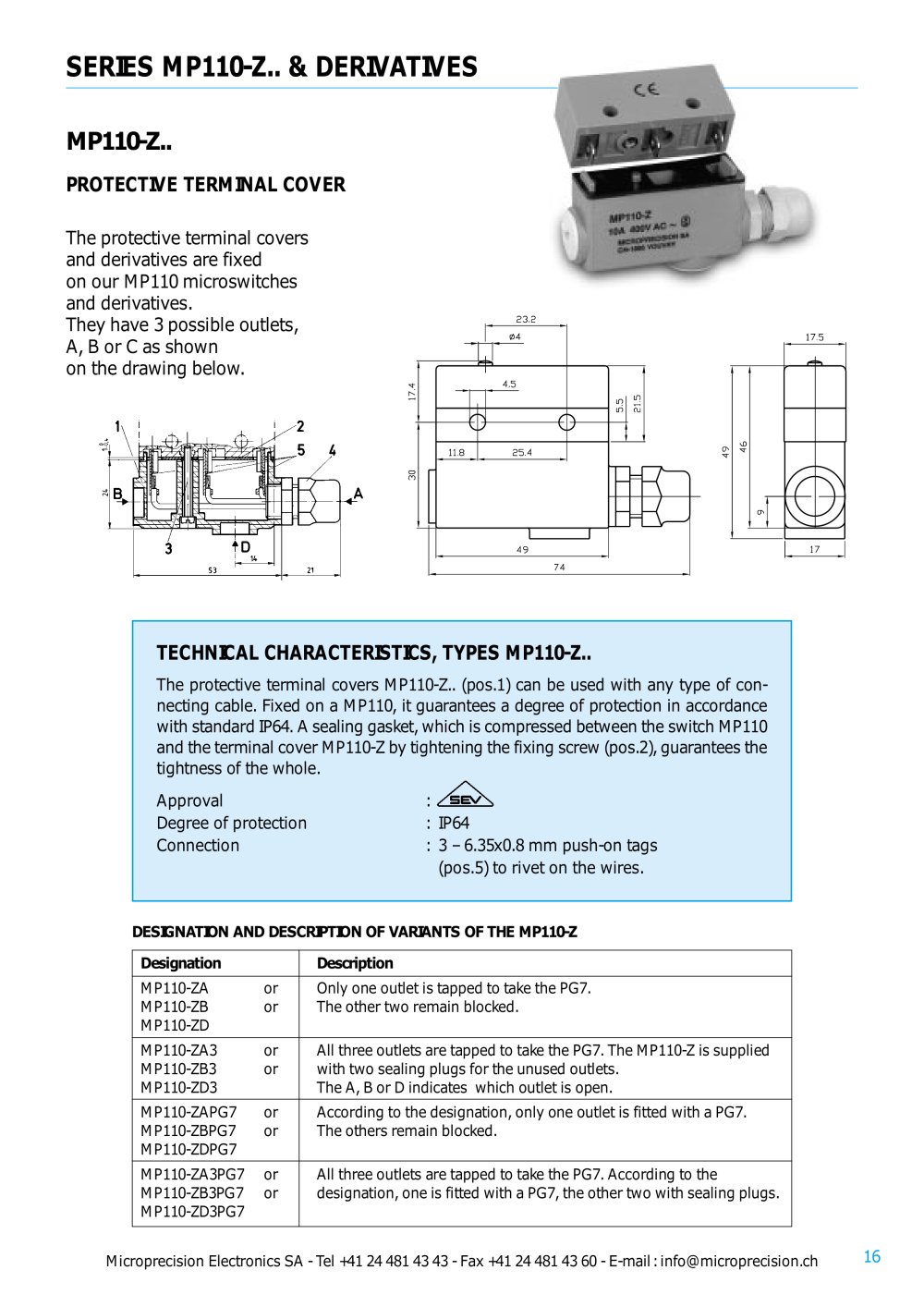

| | | SERIES MP110-Z.. & DERIVATIVES | | |
| | | |
| | | MP110-Z.. PROTECTIVE TERMINAL COVER The protective terminal covers and derivatives are fixed and derivatives. They have 3 possible outlets, A, B or C as shown on the drawing below. | | |
| | | |
| | | TECHNICAL CHARACTERISTICS, TYPES MP110-Z.. The protective terminal covers MP110-Z.. (pos.1) can be used with any type of connecting cable. Fixed on a MP110, it guarantees a degree of protection in accordance with standard IP64. A sealing gasket, which is compressed between the switch MP110 and the terminal cover MP110-Z by tightening the fixing screw (pos.2), guarantees the tightness of the whole. | | |
| | | |
| | | Approval : | | |
| | | |
| | | Degree of protection : IP64 Connection : 3 - 6.35x0.8 mm push-on tags (pos.5) to rivet on the wires. | | |
| | | |
| | | DESIGNATION AND DESCRIPTION OF VARIANTS OF THE MP110-Z | | |
| | | |
| | | | | | | | | | Designation | Description | | | | MP110-ZA or MP110-ZB or MP110-ZD | Only one outlet is tapped to take the PG7. The other two remain blocked. | | | | MP110-ZA3 or MP110-ZB3 or MP110-ZD3 | All three outlets are tapped to take the PG7. The MP110-Z is supplied with two sealing plugs for the unused outlets. The A, B or D indicates which outlet is open. | | | | MP110-ZAPG7 or MP110-ZBPG7 or MP110-ZDPG7 | According to the designation, only one outlet is fitted with a PG7. The others remain blocked. | | | | MP110-ZA3PG7 or MP110-ZB3PG7 or MP110-ZD3PG7 | All three outlets are tapped to take the PG7. According to the designation, one is fitted with a PG7, the other two with sealing plugs. | | | | | | | | | |
| | | |
| | | M Icropreclslon Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail : info@microprecision.ch | | |
| | | |
| | | | | | | | | | | | | | | | | | |
