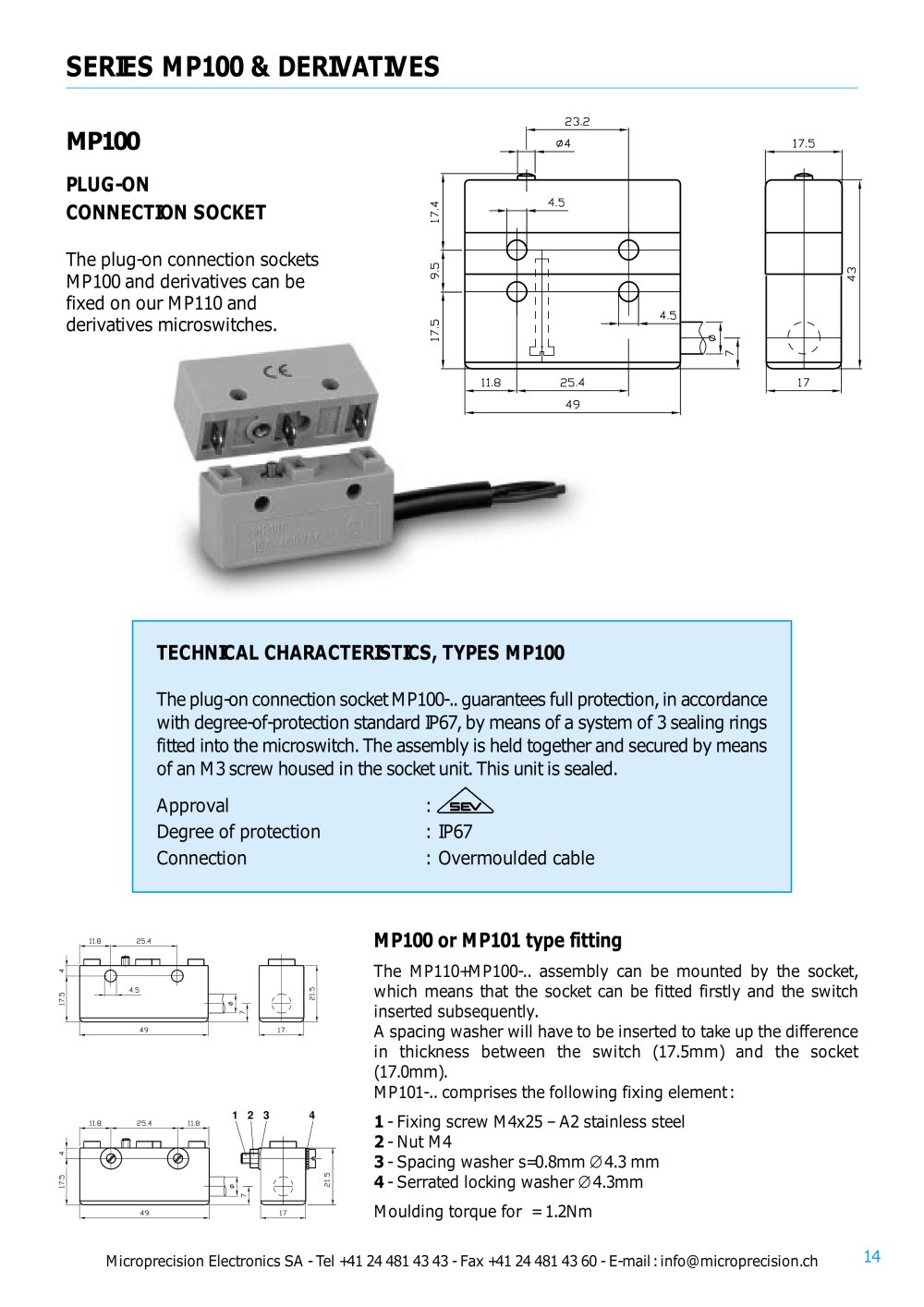

| MP100 or MP101 type fitting The MP110+MP100-.. assembly can be mounted by the socket, which means that the socket can be fitted firstly and the switch inserted subsequently. A spacing washer will have to be inserted to industrial take up the difference in thickness between the switch (17.5mm) and the socket (17.0mm). MP101-.. comprises the following fixing element: 1 - Fixing screw M4x25 - A2 stainless steel 2 - Nut M4 3 - Spacing washer s=0.8mm 0 4.3 mm 4 - Serrated locking washer 0 4.3mm Moulding torque for = 1.2Nm |
