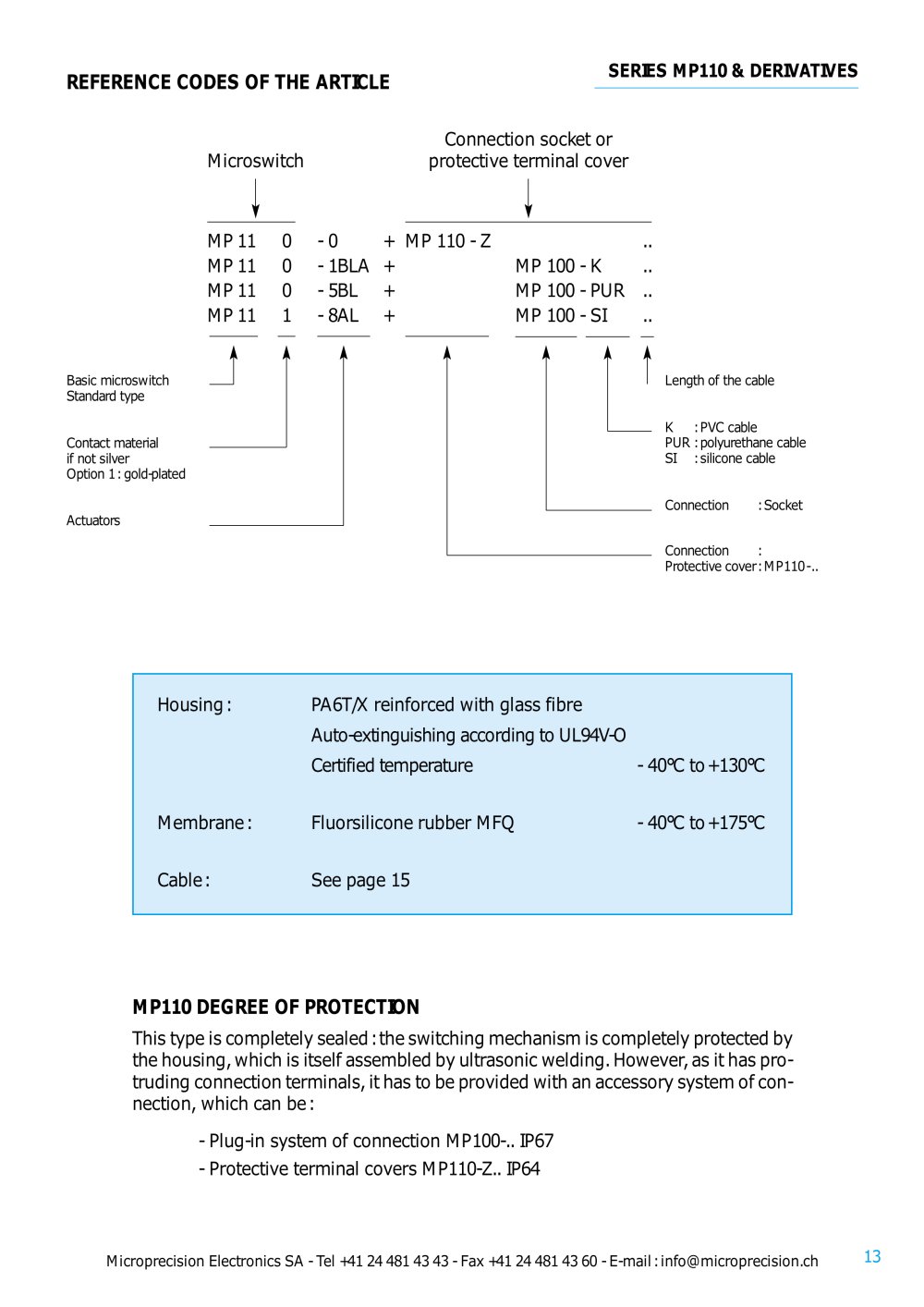

| | | SERIES MP110 & DERIVATIVES | | |
| | | REFERENCE CODES OF THE ARTICLE | | |
| | | |
| | | |
| | | Connection socket or protective terminal cover | | |
| | | | | |
| | | |
| | | |
| | | MP11 MP11 MP11 MP11 | | 0 0 0 1 | | - 0 + MP 110 - Z - 1BLA + - 5BL + - 8AL + | | |
| | | MP 100 - K MP 100 - PUR MP 100 - SI | | |
| | | |
| | | |
| | | Basic microswitch Standard type | | Length of the cable | | |
| | | |
| | | |
| | | K : PVC cable PUR : polyurethane cable SI : silicone cable | | |
| | | Contact material if not silver Option 1 : gold-plated | | |
| | | |
| | | |
| | | Connection : Socket | | |
| | | |
| | | Actuators | | |
| | | |
| | | Connection : Protective cover: MP110-.. | | |
| | | |
| | | | | | | | | | | Housing : | PA6T/X reinforced with glass fibre | | | | | | Auto-extinguishing according to UL94V-O | | | | | | Certified temperature | - 40°C to + 130°C | | | | Membrane: | Fluorsilicone rubber MFQ | - 40°C to + 175°C | | | | Cable: | See page 15 | | | | | | | | | | | |
| | | |
| | | MP110 DEGREE OF PROTECTION This type is completely sealed: the switching mechanism is completely protected by the housing, which is itself assembled by ultrasonic welding. However, as it has protruding connection terminals, it has to be provided with an accessory system of connection, which can be: - Plug-in system of connection MP100-.. IP67 - Protective terminal covers MP110-Z.. IP64 | | |
| | | |
