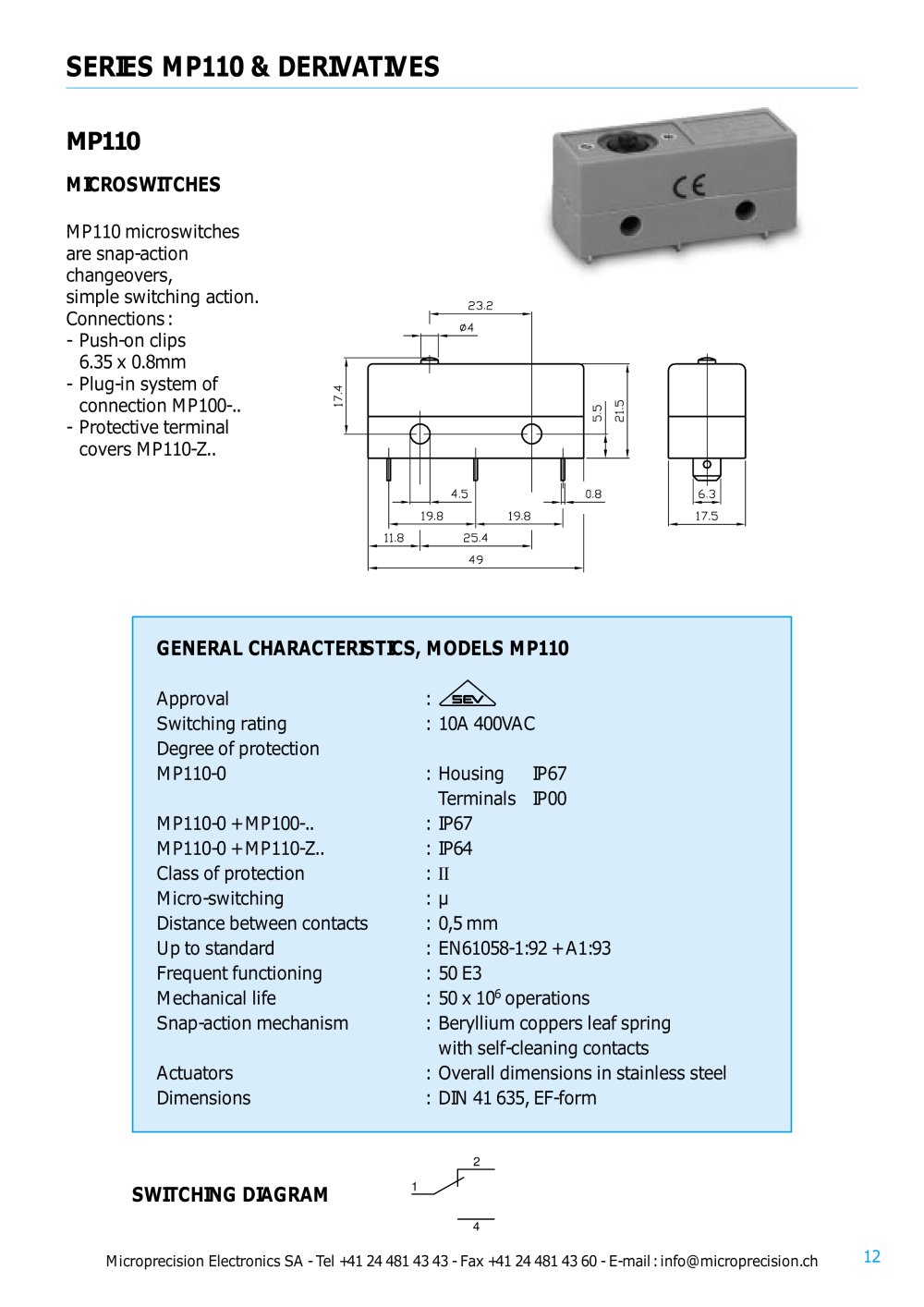

SERIES MP110 & DERIVATIVES
MP110
MP110 microswitchesare snap-action
changeovers,
simple switching action. Connections:
-Push-on clips6.35 x 0.8mm-Plug-in system ofconnection MP100-..-Protective terminalcovers MP110-Z..
GENERAL CHARACTERISTICS, MODELS MP110
II Approval:Switching rating :10A 400VAC
Degree of protection
MP110-0:HousingIP67TerminalsIP00MP110-0 + MP100-..:IP67
MP110-0 + MP110-Z..:IP64
Class of protection: Micro-switching:µ
Distance between contacts :0,5 mm
Up to standard :EN61058-1:92 + A1:93
Frequent functioning:50 E3
Mechanical life:50 x 10
6 operationsSnap-action mechanism:Beryllium coppers leaf spring with self-cleaning contactsActuators:Overall dimensions in stainless steel
Dimensions :DIN 41 635, EF-form
SWITCHING DIAGRAM
124 Microprecision Electronics SA - Tel +41 24 481 43 43 - Fax +41 24 481 43 60 - E-mail: info@microprecision.ch 12
