Digital Web Monitoring Digitales Web-Monitoring

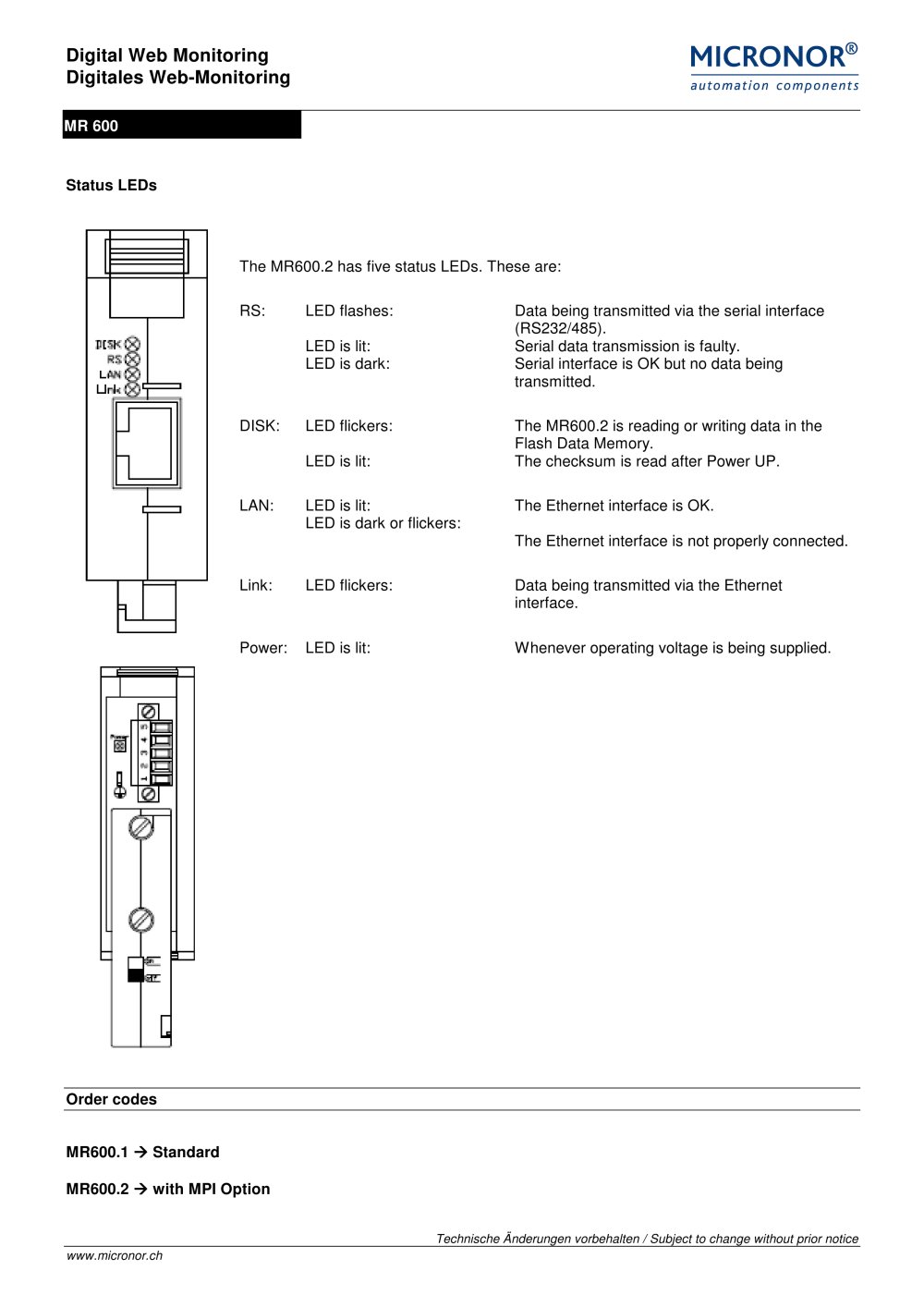

MR 600 Status LEDs The MR600.2 has five status LEDs. These are: RS: LED flashes: LED is lit: LED is dark: Data being transmitted via the serial interface (RS232/485). Serial data transmission is faulty. Serial interface is OK but no data being transmitted. DISK: LED flickers: LED is lit: The MR600.2 is reading or writing data in the Flash Data Memory. The checksum is read after Power UP. LAN: LED is lit: LED is dark or flickers: The Ethernet interface is OK. The Ethernet interface is not properly connected. Link: LED flickers: Data being transmitted via the Ethernet interface. Power: LED is lit: Whenever operating voltage is being supplied. Order codes MR600.1 Standard MR600.2 with MPI Option
