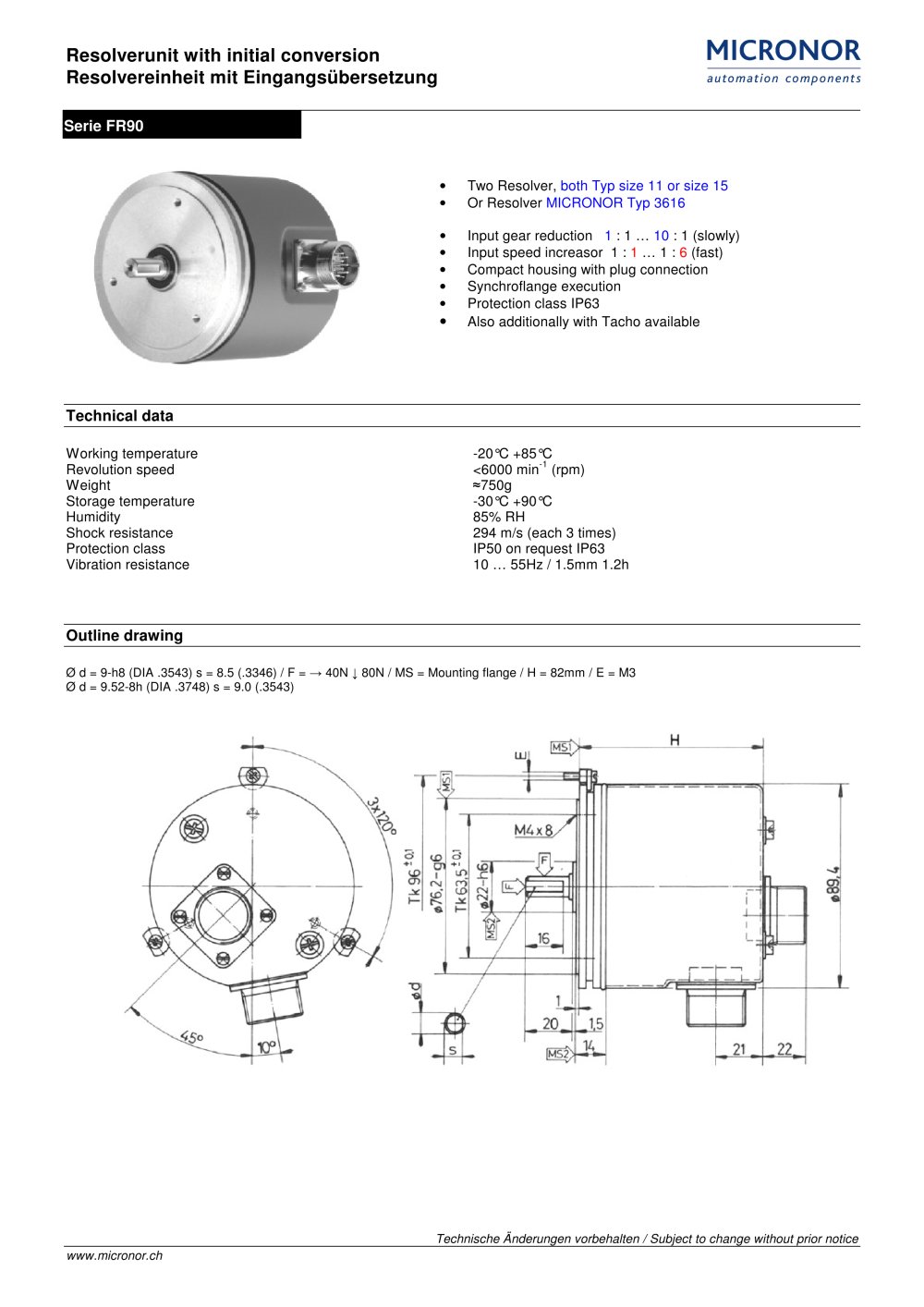

Resolverunit with initial conversion Resolvereinheit mit Eingangsübersetzung

Serie FR90

• Two Resolver, both Typ size 11 or size 15 • Or Resolver MICRONOR Typ 3616 • Input gear reduction 1 : 1 … 10 : 1 (slowly) • Input speed increasor 1 : 1 … 1 : 6 (fast) • Compact housing with plug connection • Synchroflange execution • Protection class IP63

•

Also additionally with Tacho available

Technical data

Working temperature -20°C +85°C Revolution speed <6000 min
-1 (rpm) Weight 750g Storage temperature -30°C +90°C Humidity 85% RH Shock resistance 294 m/s (each 3 times) Protection class IP50 on request IP63 Vibration resistance 10 … 55Hz / 1.5mm 1.2h

Outline drawing

Ø d = 9-h8 (DIA .3543) s = 8.5 (.3346) / F = 40N 80N / MS = Mounting flange / H = 82mm / E = M3 Ø d = 9.52-8h (DIA .3748) s = 9.0 (.3543) Technische Änderungen vorbehalten / Subject to change without prior notice www.micronor.ch
