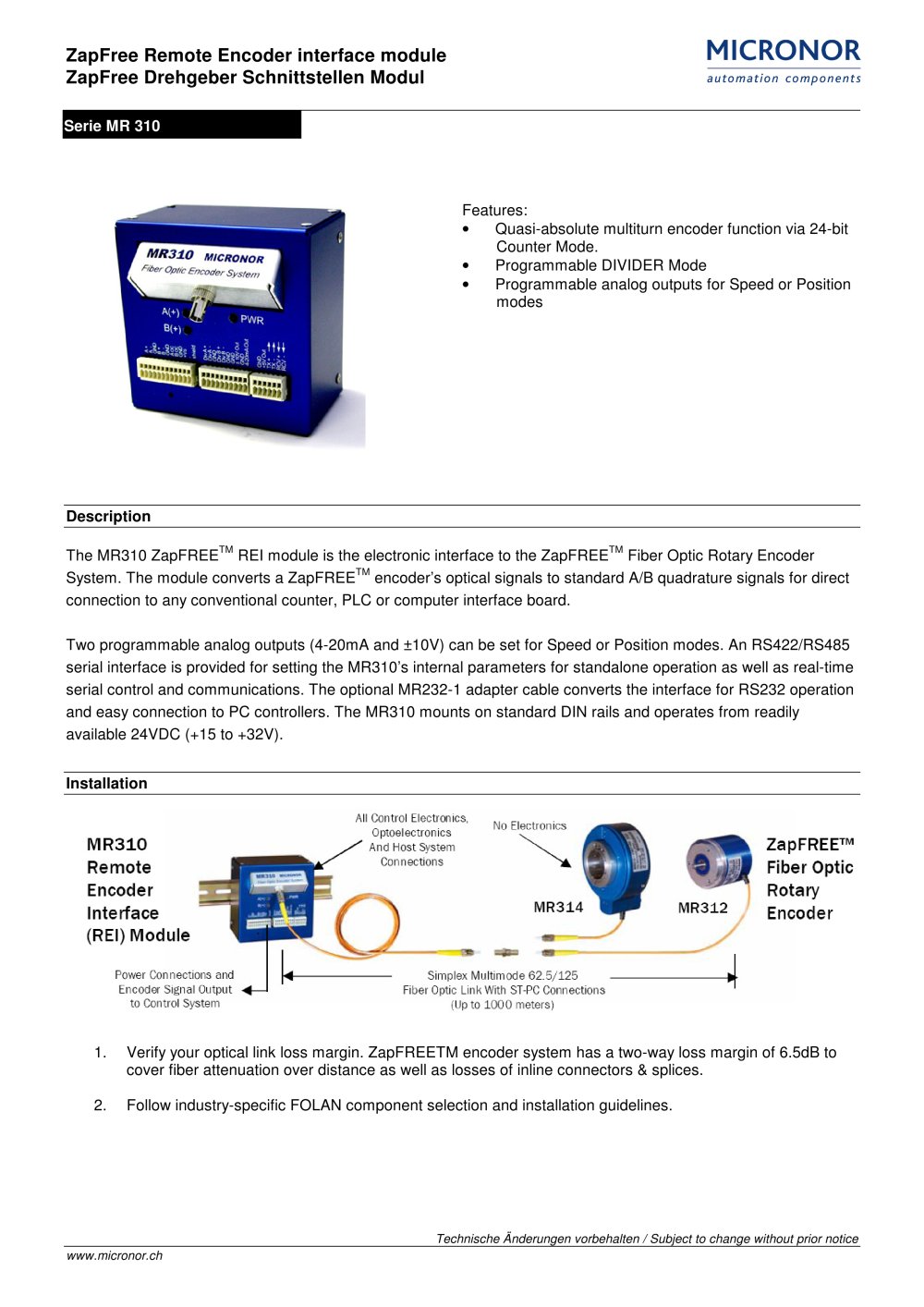

ZapFree Remote Encoder interface module ZapFree Drehgeber Schnittstellen Modul

Serie MR 310 Features: • Quasi-absolute multiturn encoder function via 24-bit Counter Mode. • Programmable DIVIDER Mode • Programmable analog outputs for Speed or Position modes Description The MR310 ZapFREE
TM REI module is the electronic interface to the ZapFREE
TM Fiber Optic Rotary Encoder System. The module converts a ZapFREE
TM encoder’s optical signals to standard A/B quadrature signals for direct connection to any conventional counter, PLC or computer interface board. Two programmable analog outputs (4-20mA and ±10V) can be set for Speed or Position modes. An RS422/RS485 serial interface is provided for setting the MR310’s internal parameters for standalone operation as well as real-time serial control and communications. The optional MR232-1 adapter cable converts the interface for RS232 operation and easy connection to PC controllers. The MR310 mounts on standard DIN rails and operates from readily available 24VDC (+15 to +32V). Installation 1. Verify your optical link loss margin. ZapFREETM encoder system has a two-way loss margin of 6.5dB to cover fiber attenuation over distance as well as losses of inline connectors & splices. 2. Follow industry-specific FOLAN component selection and installation guidelines.
Technische Änderungen vorbehalten / Subject to change without prior notice www.micronor.ch
