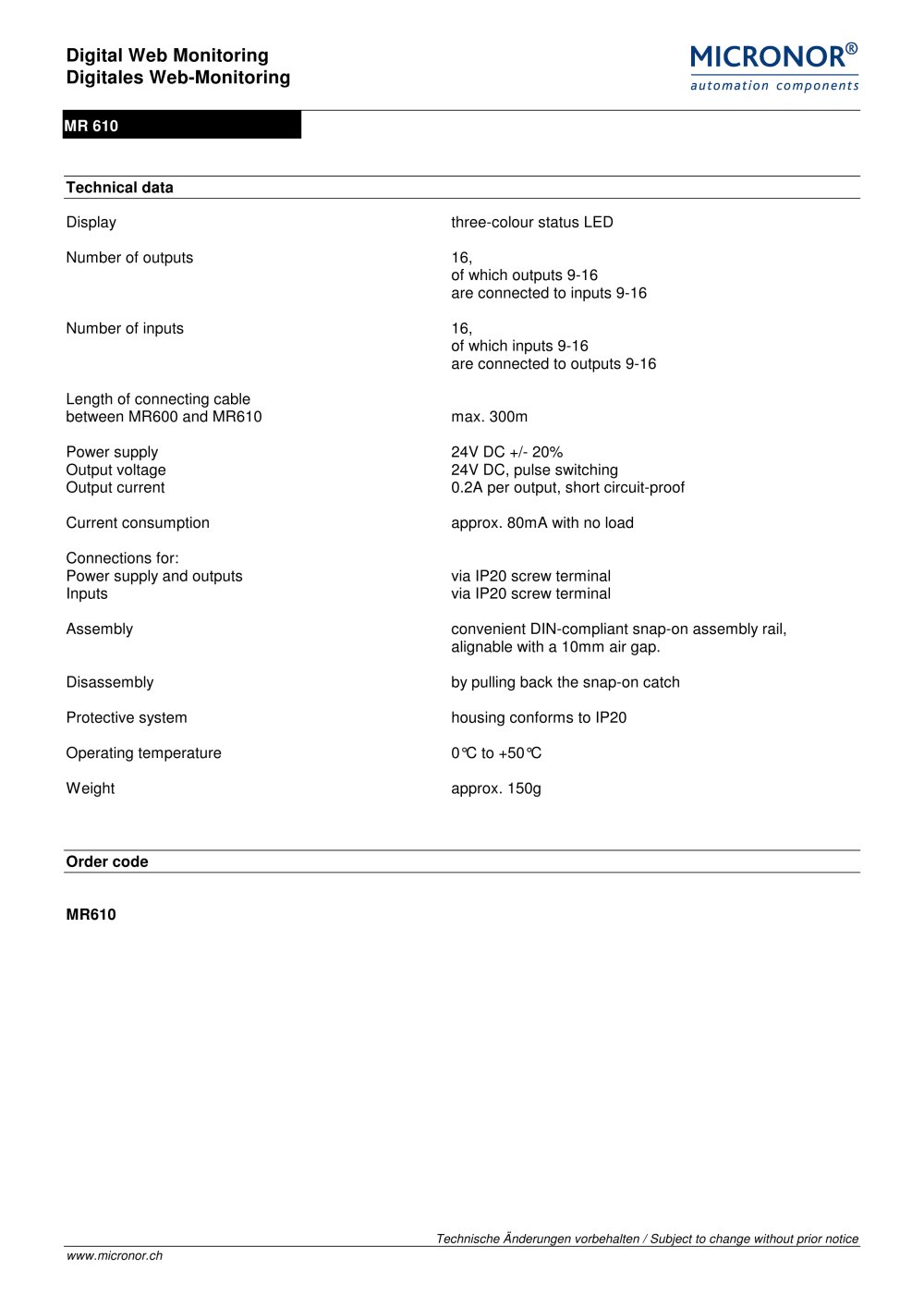

Input/output extension Typ: MR 610 - 16190 Digital Web Monitoring Digitales Web-Monitoring

MR 610 Technical data Display three-colour status LED Number of outputs 16, of which outputs 9-16 are connected to inputs 9-16 Number of inputs 16, of which inputs 9-16 are connected to outputs 9-16 Length of connecting cable between MR600 and MR610 max. 300m Power supply 24V DC +/- 20% Output voltage 24V DC, pulse switching Output current 0.2A per output, short circuit-proof Current consumption approx. 80mA with no load Connections for: Power supply and outputs via IP20 screw terminal Inputs via IP20 screw terminal Assembly convenient DIN-compliant snap-on assembly rail, alignable with a 10mm air gap. Disassembly by pulling back the snap-on catch Protective system housing conforms to IP20 Operating temperature 0°C to +50°C Weight approx. 150g MR610
Technische Änderungen vorbehalten / Subject to change without prior notice www.micronor.ch
