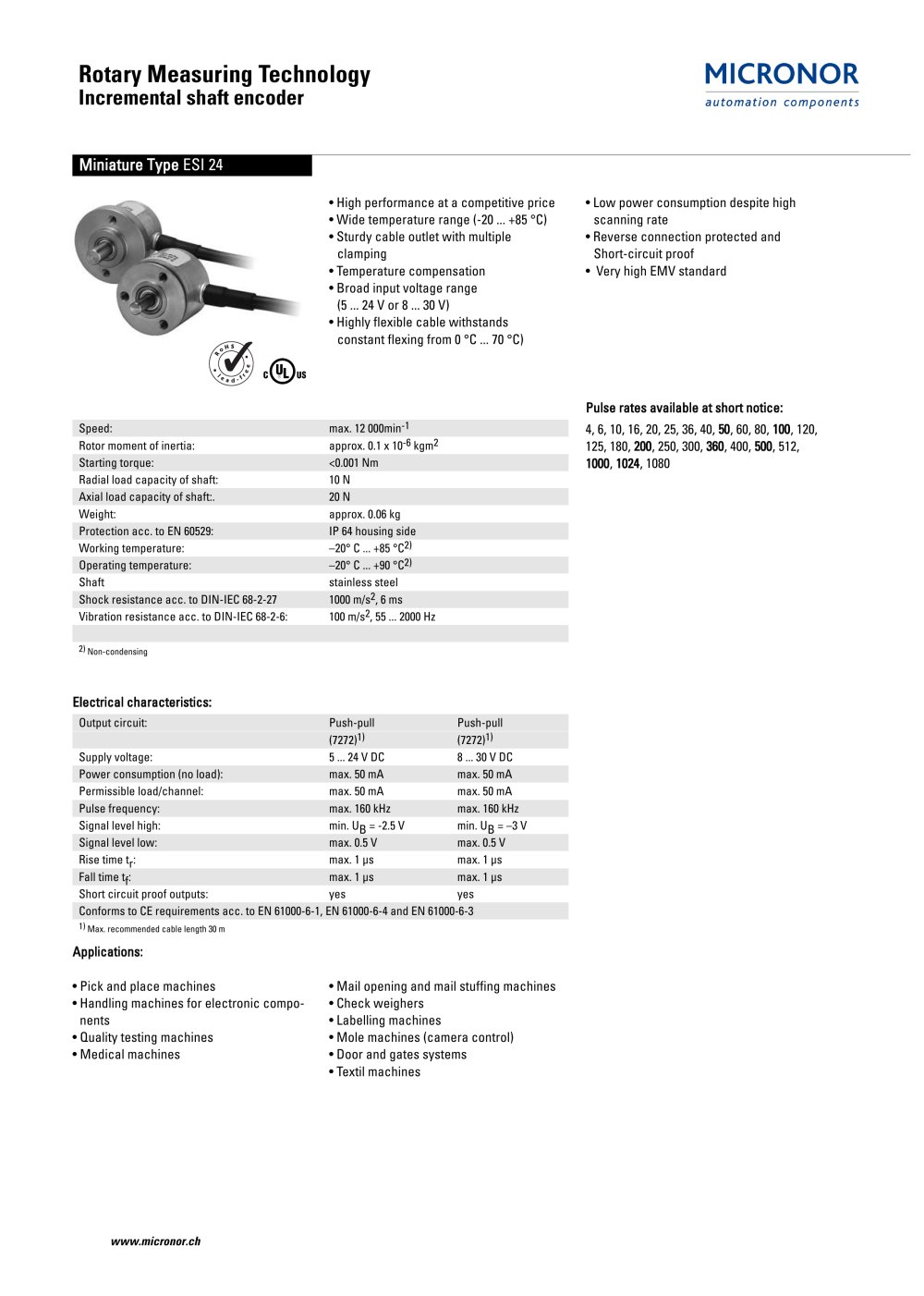

Rotary Measuring Technology

Incremental shaft encoder

Miniature Typ e ESI 24 e

• High performance at a competitive price• Wide temperature range (-20 ... +85 °C)• Sturdy cable outlet with multiple clamping• Temperature compensation • Broad input voltage range (5 ... 24 V or 8 ... 30 V)• Highly flexible cable withstands constant flexing from 0 °C ... 70 °C) • Low power consumption despite highscanning rate• Reverse connection protected and Short-circuit proof•Very high EMV standard

Speed:max. 12 000min
-1

4, 6, 10, 16, 20, 25, 36, 40, 50 , 60, 80, 100 , 120,125, 180,

Rotor moment of inertia:approx. 0.1 x 10
-6 kgm
2

200 , 250, 300, 360 , 400, 500 , 512,

Starting torque:<0.001 NmRadial load capacity of shaft:10 N

1000 , 1024 , 1080

Axial load capacity of shaft:.20 NWeight:approx. 0.06 kg Protection acc. to EN 60529:IP 64 housing side Working temperature:–20° C ... +85 °C
2) Operating temperature:–20° C ... +90 °C
2) Shaft stainless steel Shock resistance acc. to DIN-IEC 68-2-271000 m/s
2 , 6 msVibration resistance acc. to DIN-IEC 68-2-6:100 m/s
2 , 55 ... 2000 Hz
2)Non-condensing

Electrical characteristics: Pulse rates available at short notice:

Output circuit:Push-pullPush-pull (7272)
1) (7272)
1) Supply voltage:5 ... 24 V DC8 ... 30 V DC Power consumption (no load):max. 50 mAmax. 50 mAPermissible load/channel:max. 50 mAmax. 50 mA Pulse frequency:max. 160 kHzmax. 160 kHzSignal level high:min. UB = -2.5 Vmin. UB = –3 V Signal level low:max. 0.5 Vmax. 0.5 VRise time tr:max. 1 µsmax. 1 µs Fall time tf:max. 1 µsmax. 1 µsShort circuit proof outputs: yesyes Conforms to CE requirements acc. to EN 61000-6-1, EN 61000-6-4 and EN 61000-6-3
1)Max. recommended cable length 30 m

Applications: • Pick and place machines• Handling machines for electronic compo-nents• Quality testing machines manufacturers• Medical machines • Mail opening and mail stuffing machines• Check weighers • Labelling machines• Mole machines (professional camera control)• Door and gates systems • Textil machines
