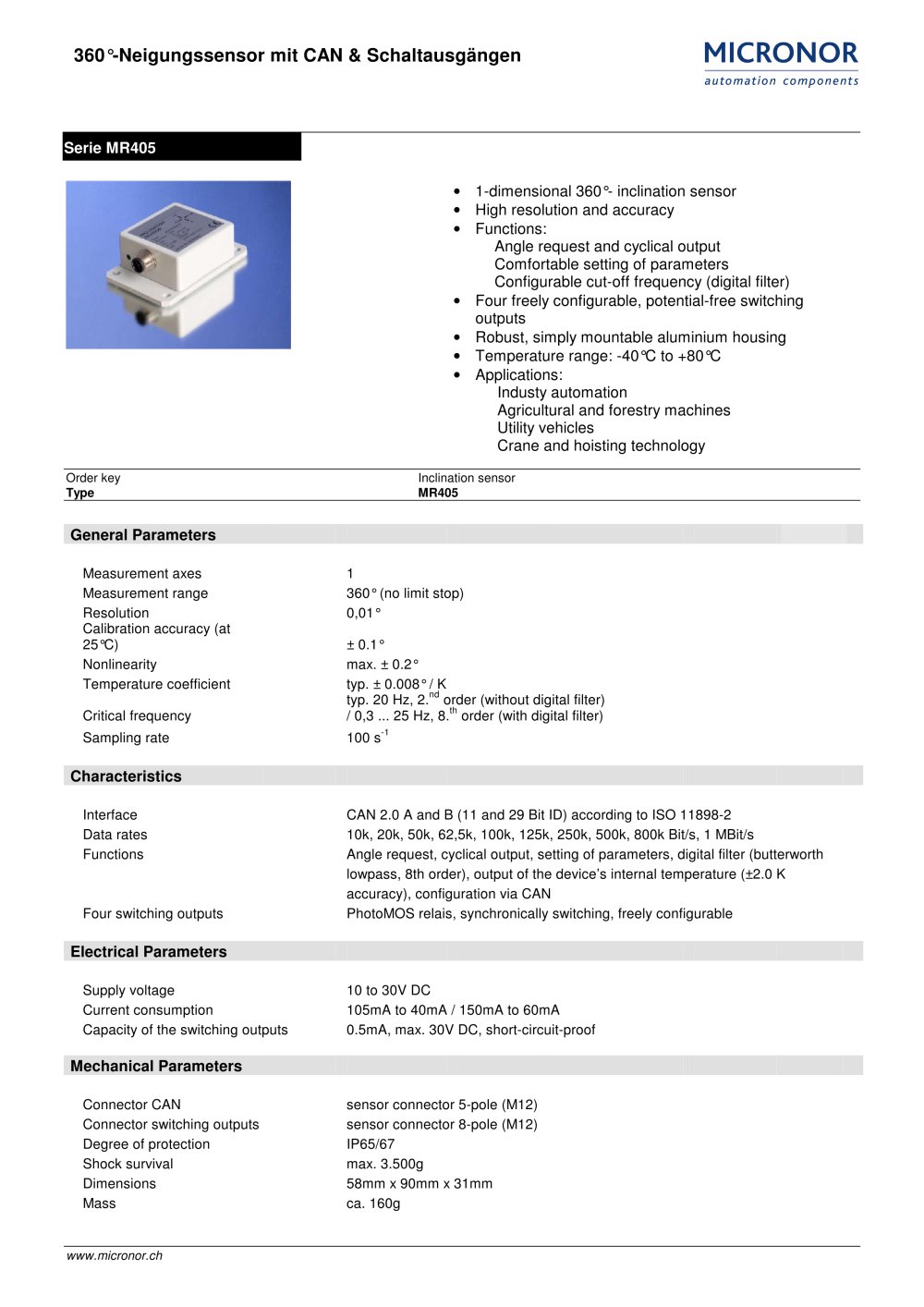

360°-Neigungssensor mit CAN & Schaltausgängen

Serie MR405 • 1-dimensional 360°- inclination sensor • High resolution and accuracy • • Functions: Angle request and cyclical output Comfortable setting of parameters Configurable cut-off frequency (digital filter) Four freely configurable, potential-free switching outputs • Robust, simply mountable aluminium housing • Temperature range: -40°C to +80°C • Applications: Industy automation Agricultural and forestry machines Utility vehicles Crane and hoisting technology

Order key Inclination sensor Type MR405

General Parameters

Measurement axes 1 Measurement range 360° (no limit stop) Resolution 0,01° Calibration accuracy (at 25°C) ± 0.1° Nonlinearity max. ± 0.2° Temperature coefficient typ. ± 0.008° / K
nd order (without digital filter) / 0,3 ... 25 Hz, 8. Critical frequency typ. 20 Hz, 2.
th order (with digital filter) Sampling rate 100 s
-1

Characteristics

Interface CAN 2.0 A and B (11 and 29 Bit ID) according to ISO 11898-2 Data rates 10k, 20k, 50k, 62,5k, 100k, 125k, 250k, 500k, 800k Bit/s, 1 MBit/s Functions Angle request, cyclical output, setting of parameters, digital filter (butterworth lowpass, 8th order), output of the device’s internal temperature (±2.0 K accuracy), configuration via CAN Four switching outputs PhotoMOS relais, synchronically switching, freely configurable

Electrical Parameters

Supply voltage 10 to 30V DC Current consumption 105mA to 40mA / 150mA to 60mA Capacity of the switching outputs 0.5mA, max. 30V DC, short-circuit-proof

Mechanical Parameters

Connector CAN sensor connector 5-pole (M12) Connector switching outputs sensor connector 8-pole (M12) Degree of protection IP65/67 Shock survival max. 3.500g Dimensions 58mm x 90mm x 31mm Mass ca. 160g
