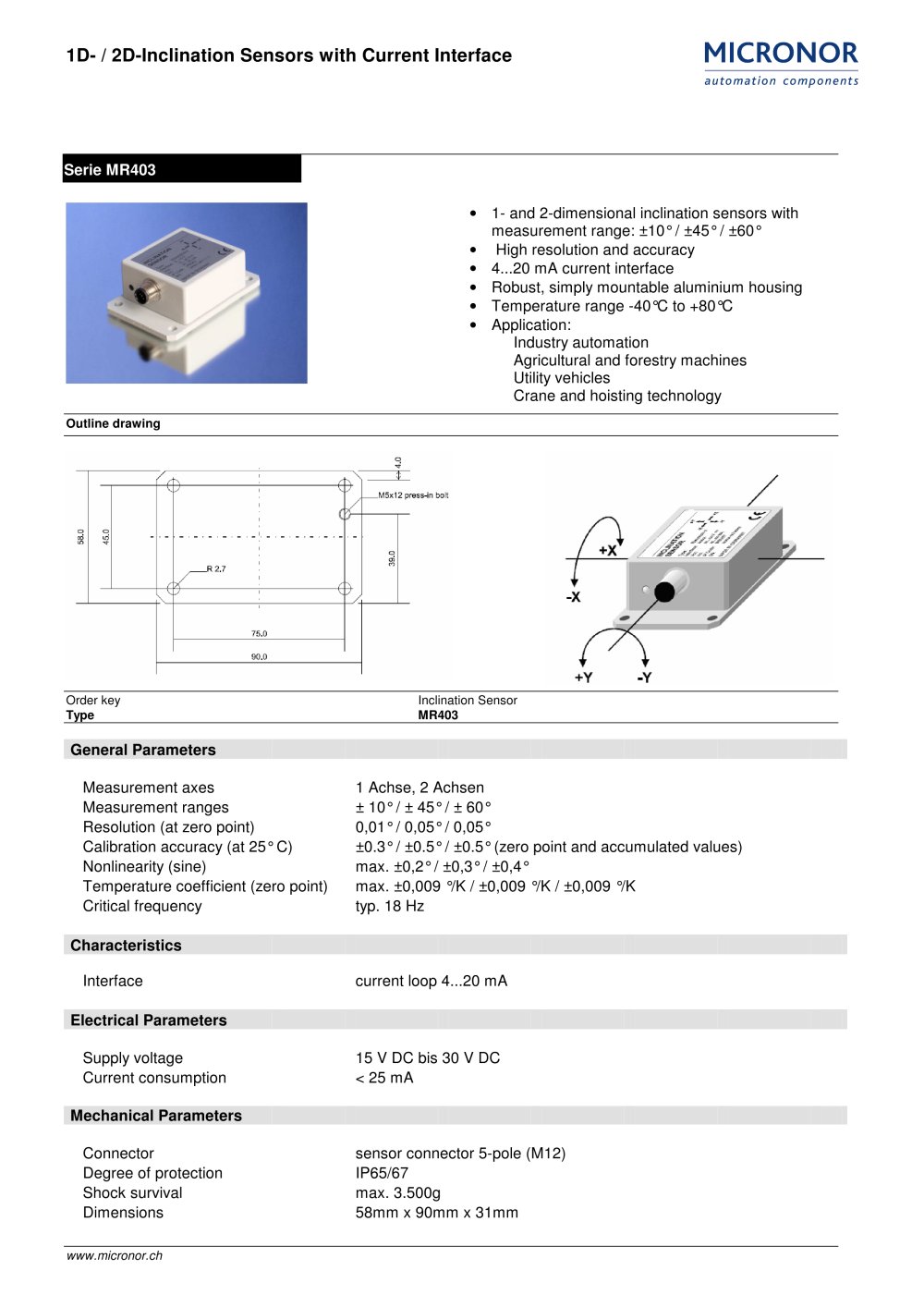

1D- / 2D-Inclination Sensors with Current Interface

Serie MR403 • 1- and 2-dimensional inclination sensors with measurement range: ±10° / ±45° / ±60° • High resolution and accuracy • 4...20 mA current interface • Robust, simply mountable aluminium housing • Temperature range -40°C to +80°C • Application: Industry automation Agricultural and forestry machines Utility vehicles Crane and hoisting technology
Outline drawing Order key Inclination Sensor Type MR403 General Parameters Measurement ranges ± 10° / ± 45° / ± 60° Resolution (at zero point) 0,01° / 0,05° / 0,05° Calibration accuracy (at 25° C) ±0.3° / ±0.5° / ±0.5° (zero point and accumulated values) Nonlinearity (sine) max. ±0,2° / ±0,3° / ±0,4° Temperature coefficient (zero point) max. ±0,009 °/K / ±0,009 °/K / ±0,009 °/K Critical frequency typ. 18 Hz Characteristics Interface current loop 4...20 mA Electrical Parameters Supply voltage 15 V DC bis 30 V DC Current consumption
