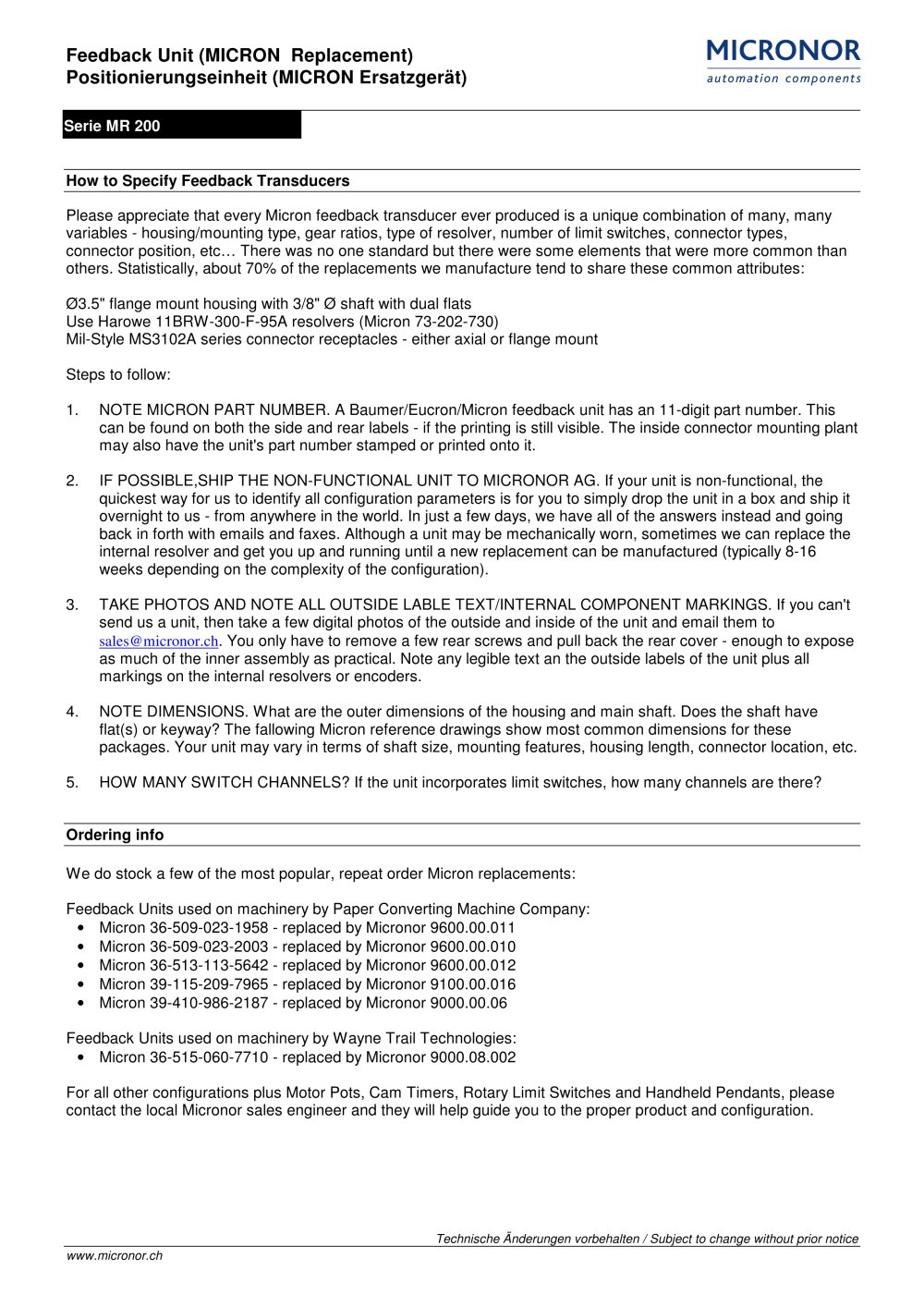

Feedback Unit (MICRON Replacement) Positionierungseinheit (MICRON Ersatzgerät)

sales@micronor.ch Serie MR 200 How to Specify Feedback Transducers Please appreciate that every Micron feedback transducer ever produced is a unique combination of many, many variables - housing/mounting type, gear ratios, type of resolver, number of limit switches, connector types, connector position, etc… There was no one standard but there were some elements that were more common than others. Statistically, about 70% of the replacements we manufacture tend to share these common attributes: Ø3.5" flange mount housing with 3/8" Ø shaft with dual flats Use Harowe 11BRW-300-F-95A resolvers (Micron 73-202-730) Mil-Style MS3102A series connector receptacles - either axial or flange mount Steps to follow: 1. NOTE MICRON PART NUMBER. A Baumer/Eucron/Micron feedback unit has an 11-digit part number. This can be found on both the side and rear labels - if the printing is still visible. The inside connector mounting plant may also have the unit's part number stamped or printed onto it. 2. IF POSSIBLE,SHIP THE NON-FUNCTIONAL UNIT TO MICRONOR AG. If your unit is non-functional, the quickest way for us to identify all configuration parameters is for you to simply drop the unit in a box and ship it overnight to us - from anywhere in the world. In just a few days, we have all of the answers instead and going back in forth with emails and faxes. Although a unit may be mechanically worn, sometimes we can replace the internal resolver and get you up and running until a new replacement can be manufactured (typically 8-16 weeks depending on the complexity of the configuration). 3. TAKE PHOTOS AND NOTE ALL OUTSIDE LABLE TEXT/INTERNAL COMPONENT MARKINGS. If you can't send us a unit, then take a few digital photos of the outside and inside of the unit and email them to . You only have to remove a few rear screws and pull back the rear cover - enough to expose as much of the inner assembly as practical. Note any legible text an the outside labels of the unit plus all markings on the internal resolvers or encoders. 4. NOTE DIMENSIONS. What are the outer dimensions of the housing and main shaft. Does the shaft have flat(s) or keyway? The fallowing Micron reference drawings show most common dimensions for these packages. Your unit may vary in terms of shaft size, mounting features, housing length, connector location, etc. 5. HOW MANY SWITCH CHANNELS? If the unit incorporates limit switches, how many channels are there? Ordering info We do stock a few of the most popular, repeat order Micron replacements: Feedback Units used on machinery by Paper Converting Machine Company: • Micron 36-509-023-1958 - replaced by Micronor 9600.00.011 • Micron 36-509-023-2003 - replaced by Micronor 9600.00.010 • Micron 36-513-113-5642 - replaced by Micronor 9600.00.012 • Micron 39-115-209-7965 - replaced by Micronor 9100.00.016 • Micron 39-410-986-2187 - replaced by Micronor 9000.00.06 Feedback Units used on machinery by Wayne Trail Technologies: • Micron 36-515-060-7710 - replaced by Micronor 9000.08.002 For all other configurations plus Motor Pots, Cam Timers, Rotary Limit Switches and Handheld Pendants, please contact the local Micronor sales engineer and they will help guide you to the proper product and configuration.
Technische Änderungen vorbehalten / Subject to change without prior notice www.micronor.ch
