Order code

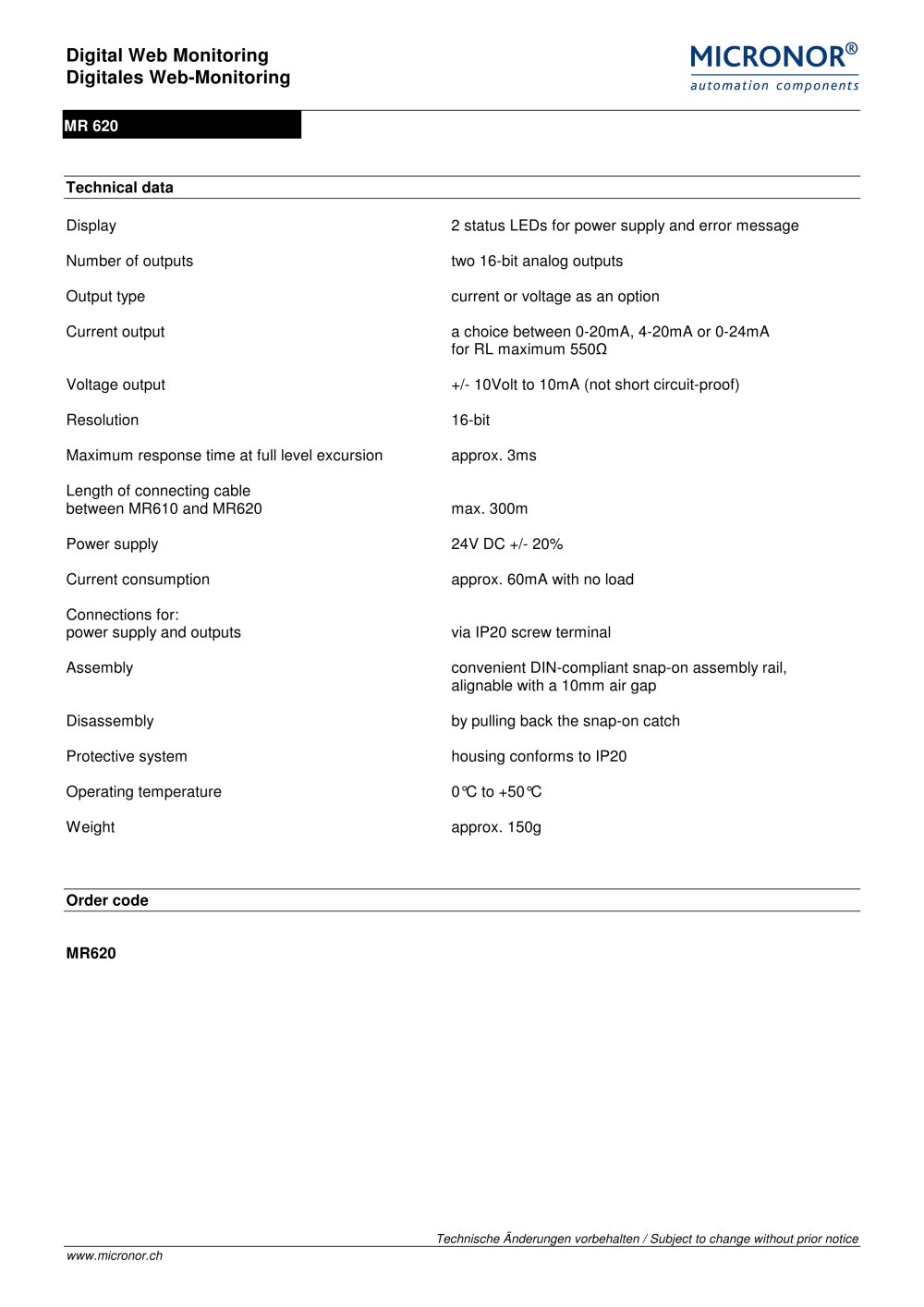

Digital-analog converter Typ: MR 620 - 16190 Digital Web Monitoring Digitales Web-Monitoring

Voltage output +/- 10Volt to 10mA (not short circuit-proof) Resolution 16-bit Maximum response time at full level excursion approx. 3ms Length of connecting cable between MR610 and MR620 max. 300m Power supply 24V DC +/- 20% Current consumption approx. 60mA with no load Connections for: power supply and outputs via IP20 screw terminal Assembly convenient DIN-compliant snap-on assembly rail, alignable with a 10mm air gap Disassembly by pulling back the snap-on catch Protective system housing conforms to IP20 Operating temperature 0°C to +50°C Weight approx. 150g MR 620 Technical data Display 2 status LEDs for power supply and error message Number of outputs two 16-bit analog outputs Output type current or voltage as an option Current output a choice between 0-20mA, 4-20mA or 0-24mA for RL maximum 550 MR620
Technische Änderungen vorbehalten / Subject to change without prior notice www.micronor.ch
