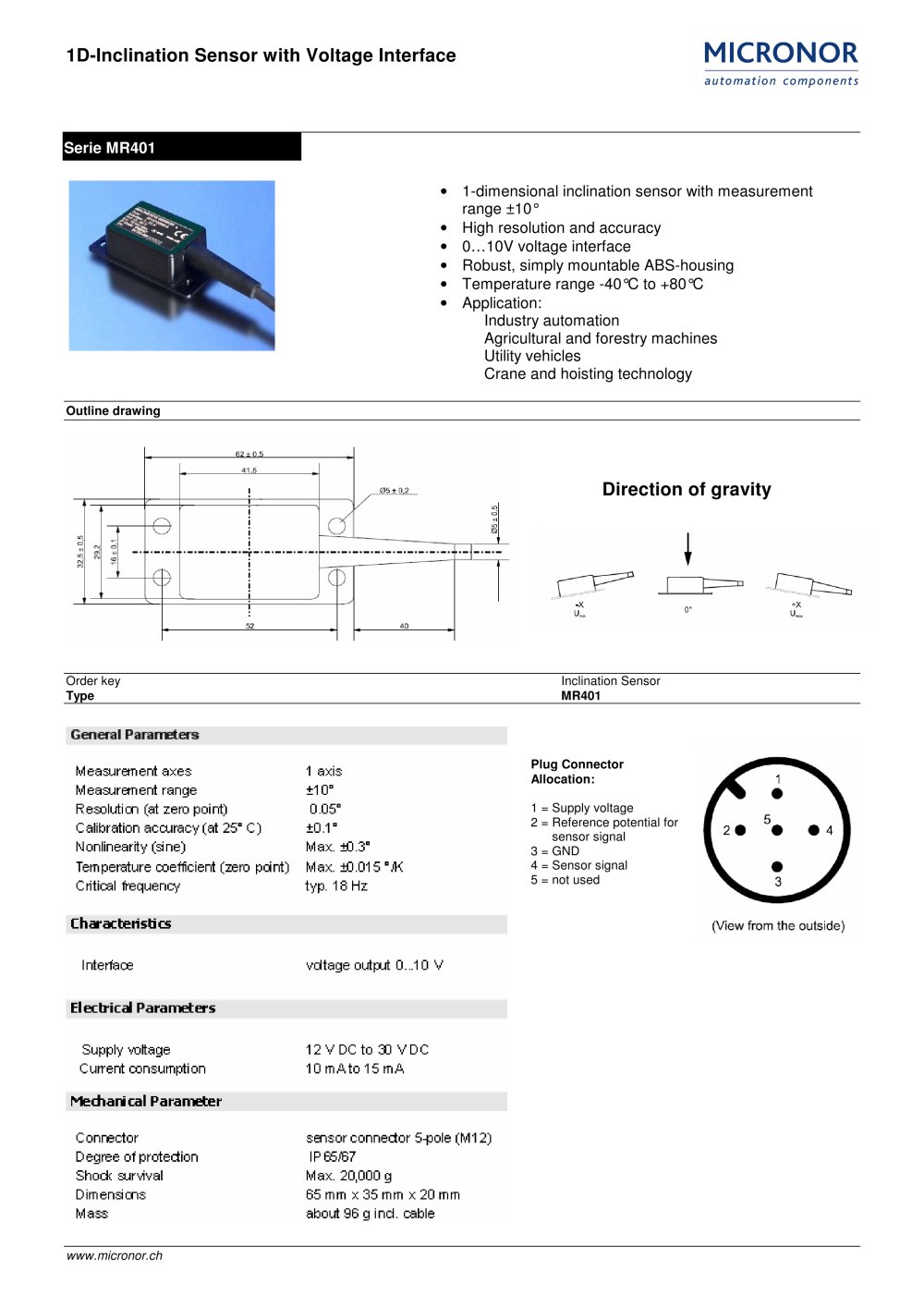

1D-Inclination Sensor with Voltage Interface

Serie MR401 • 1-dimensional inclination sensor with measurement range ±10° • High resolution and accuracy • 0…10V voltage interface • Robust, simply mountable ABS-housing • Temperature range -40°C to +80°C • Application: Industry automation Agricultural and forestry machines Utility vehicles Crane and hoisting technology
Outline drawing

Direction of gravity

Order key Inclination Sensor Type MR401 Plug Connector Allocation: 1 = Supply voltage 2 = Reference potential for sensor signal 3 = GND 4 = Sensor signal 5 = not used www.micronor.ch
