Order code s Earthing by 4 x 6.3mm flat connector directly to earth terminal block Assembly snap-on assembly to DIN rail Disassembly by pulling back the snap-on catch Protective system Housing: IP20 Cover from 1mm galvanised sheet Operating temperature 0°C to +50°C Weight approx. 400g

Analog-digital converter Typ: MR 630 - 16190 Digital Web Monitoring Digitales Web-Monitoring

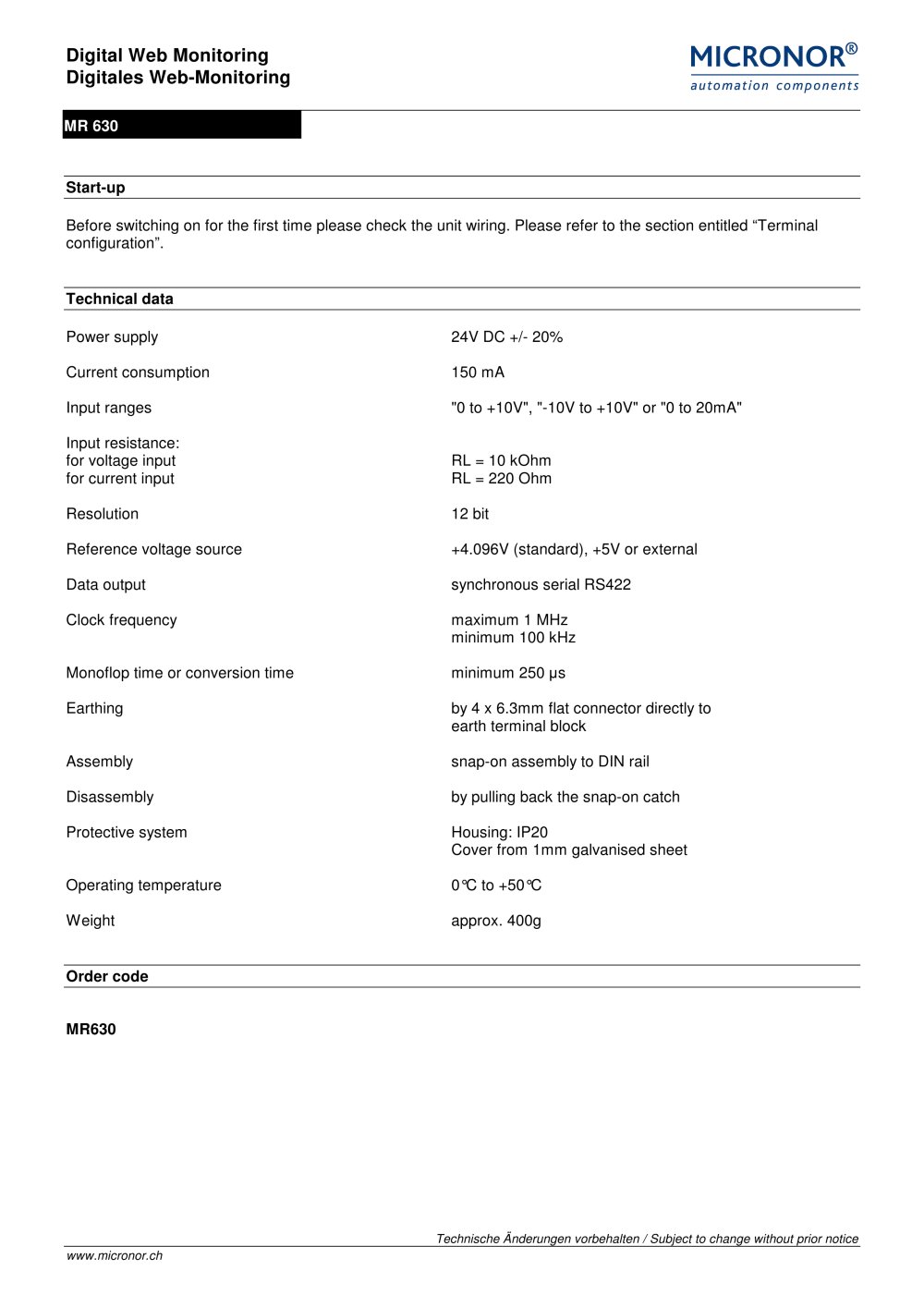

MR 630 Start-up Before switching on for the first time please check the unit wiring. Please refer to the section entitled “Terminal configuration”. Technical data Power supply 24V DC +/- 20% Current consumption 150 mA Input ranges "0 to +10V", "-10V to +10V" or "0 to 20mA" Input resistance: for voltage input RL = 10 kOhm for current input RL = 220 Ohm Resolution 12 bit Reference voltage source +4.096V (standard), +5V or external Data output synchronous serial RS422 Clock frequency maximum 1 MHz minimum 100 kHz Monoflop time or conversion time minimum 250 MR630
