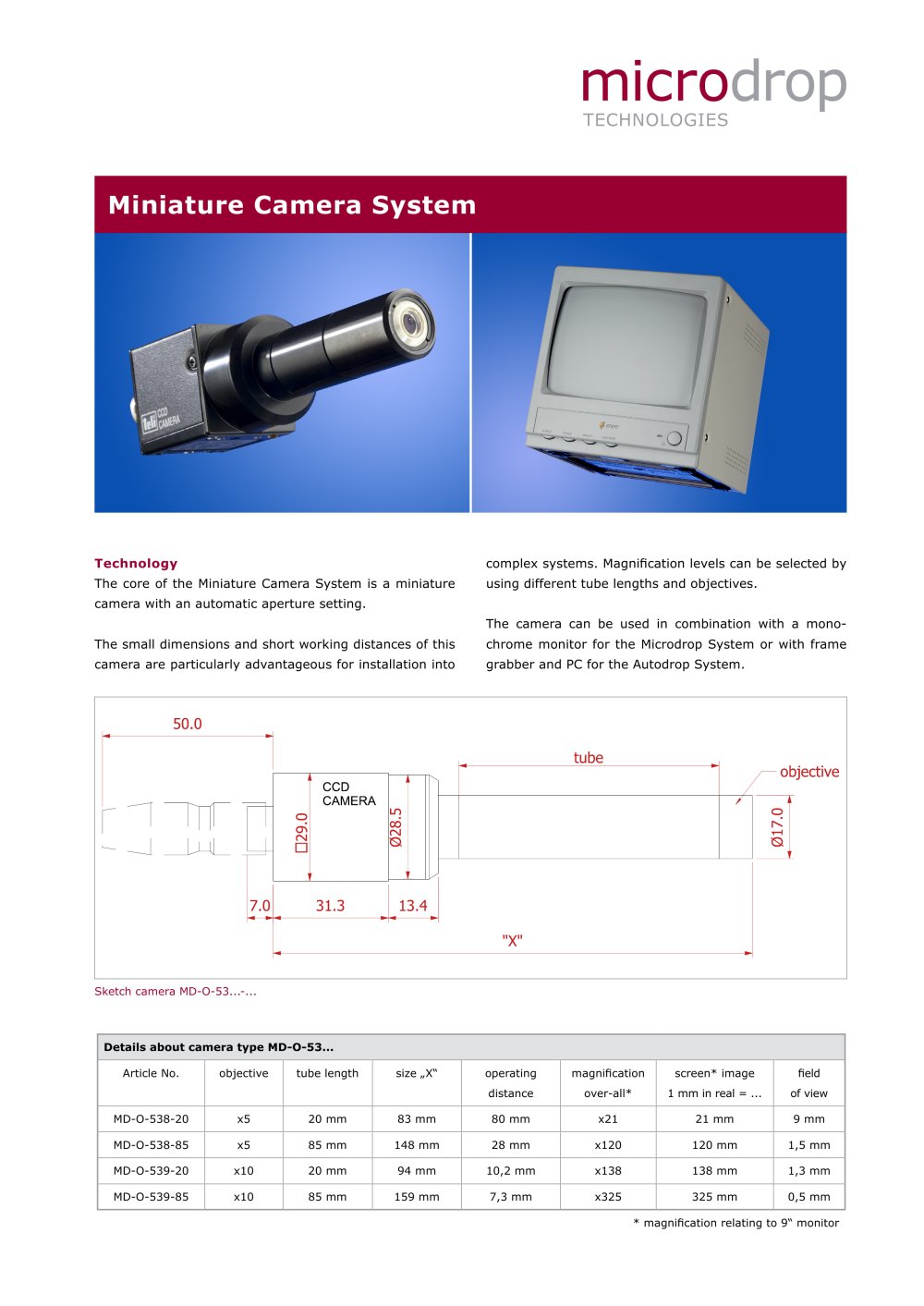

Miniature Camera System

Technology The core of the Miniature Camera System is a miniature camera with an automatic aperture setting. The small dimensions and short working distances of this camera are particularly advantageous for installation into complex systems. Magnification levels can be selected by using different tube lengths and objectives.The camera can be used in combination with a mono-chrome monitor for the Microdrop System or with frame grabber and PC for the Autodrop System.

Sketch camera MD-O-53...-... Details about camera type MD-O-53... Article No.objectivetube lengthsize „X“operating distancemagnification over-all*screen* image1 mm in real = ...field of viewMD-O-538-20x520 mm83 mm80 mmx2121 mm9 mm MD-O-538-85x585 mm148 mm28 mmx120120 mm1,5 mm MD-O-539-20x1020 mm94 mm10,2 mmx138138 mm1,3 mm MD-O-539-85x1085 mm159 mm7,3 mmx325325 mm0,5 mm * magnification relating to 9“ monitor
